Definition

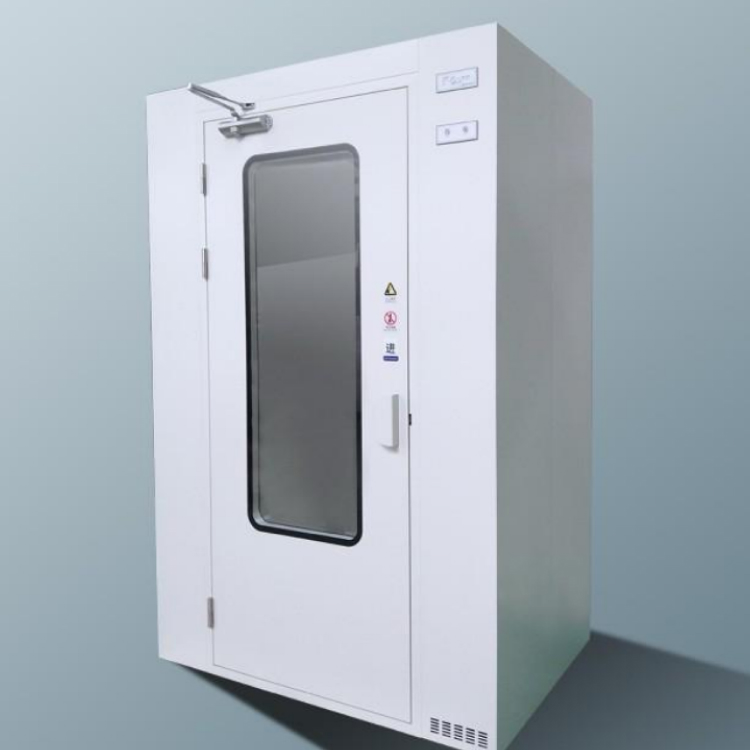

 | The air shower room is a necessary passage to enter the clean room, which can reduce the pollution problems caused by entering and leaving the clean room. As the gateway and iconic equipment of the clean room, it is very important. A high-end air shower equipment that can add color to the clean room has been our constant pursuit for many years. Today, we uphold the craftsman's heart, integrate technological innovation and design aesthetics into classic quality, and create a smart and high-end air shower room for customers. |

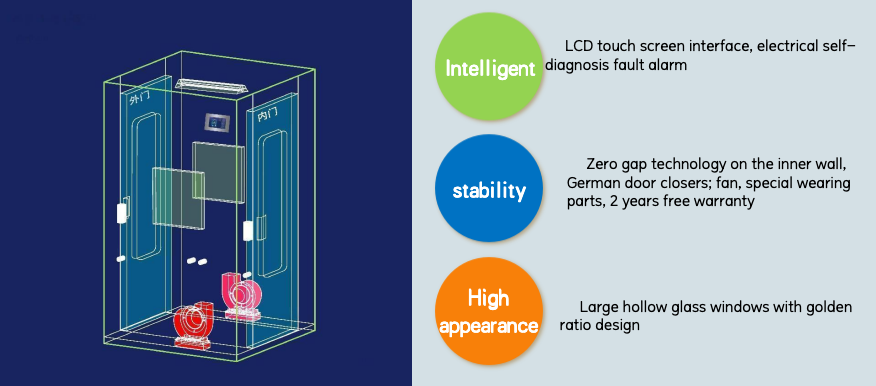

Intelligent air shower room • A new type of air shower room with self-checking and early warning function

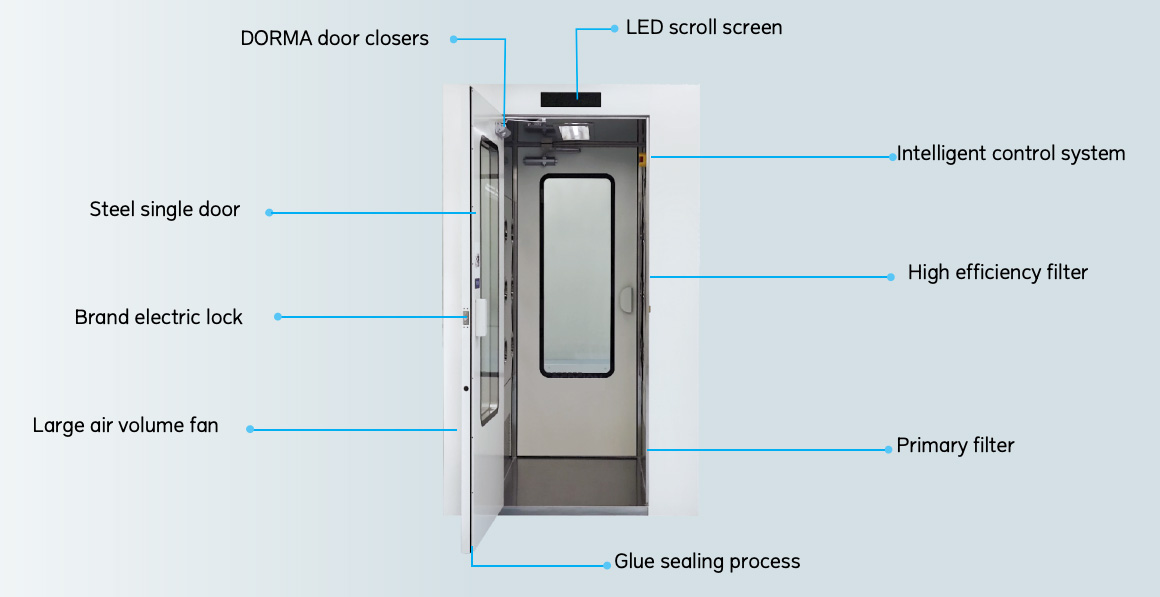

Composition Structure

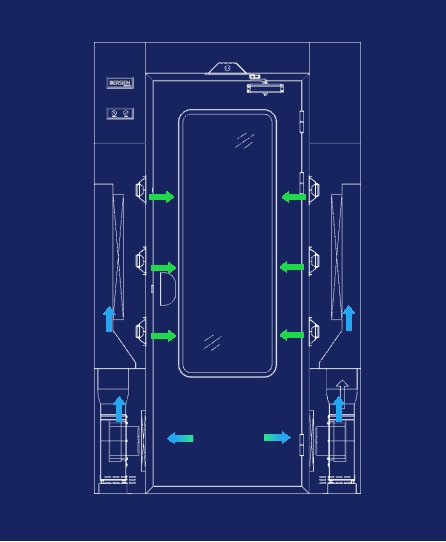

Principle
Technical Parameters
Tepy | Configuration | Options | |||
Specification | External dimensions | 1300x1000x2200mm | Inner dimension | 800x900x2000mm | |
Main materal | Overall high quality painted steel plate | Door material | Steel single door + DORMA door closer | ||
External high quality painted steel plate, internal SUS304/SUS201 | |||||
Overall sanding SUS304/SUS201 | Stainless steel single door + DORMA door closer | ||||
Filtering system | Primary filter：G4 | Size | 595x295x25mm | ||
HEPA: H14 | 610x610x70mm | ||||
Fan system | Wind speed 25~30m/s | Number of fans | 2pcs | ||
Nozzle | Stainless steel embedded type | Quantity | 12pcs | ||
Contorl system | Microcomputer control, intelligent voice prompt, LED display, shower time adjustable from 10 to 99 seconds, double door electronic interlock | ||||
7-inch/10-inch capacitive touch LCD screen, ARM main control, multi-core CPU, high-speed main frequency | |||||
Illumination | LED recessed lighting | ||||
Power 380V | 1.52KW | ||||
Product Configuration

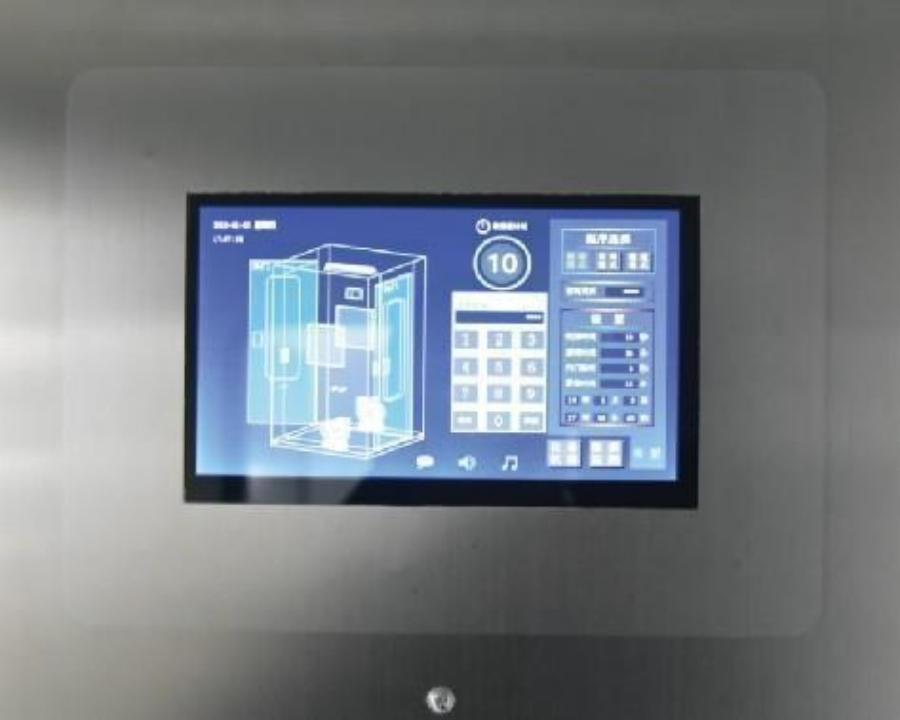

 | Intelligent control screen Adopt 7-inch/10-inch color LCD screen interface with real-time dynamic picture 1. Component failure alarm and accurate location 2. Real-time monitoring of cleanliness/wind speed, making data visualization, visible effect and quality more assured; 3. Real-time monitoring of filter pressure difference, timely reminder to replace high-efficiency filter; 4. Record the use time of primary and high-efficiency filters, record the use time of equipment and remind replacement time; 5. Password permission setting to prevent illegal operation by non-related personnel; |

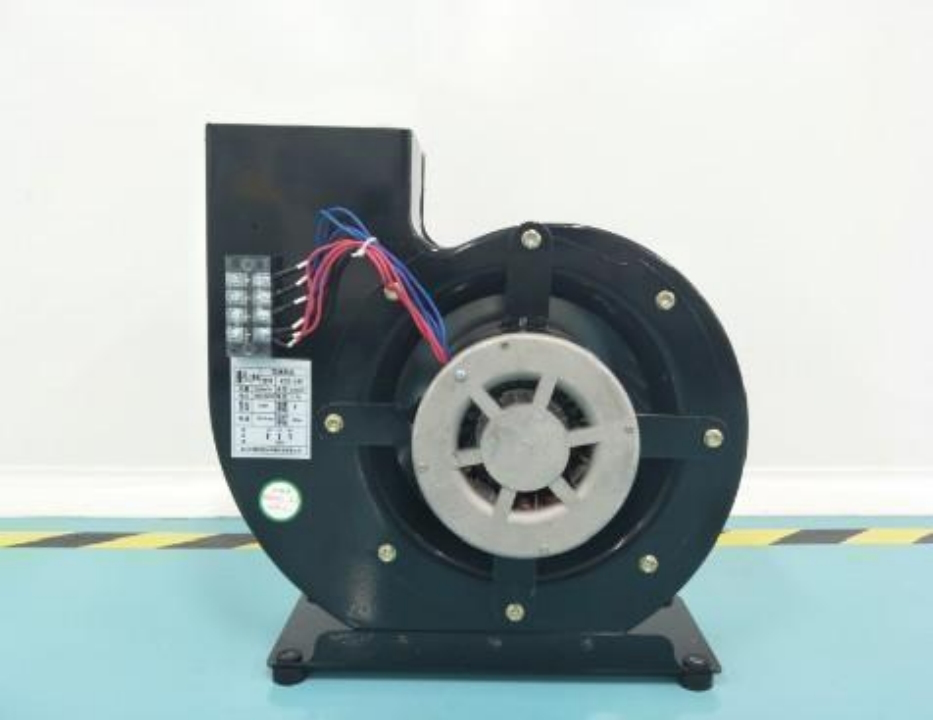

 | Special large fan Dersion special large air volume fan is certified by professional organizations, with aluminum impellers and motors made of 100% pure copper wire, and its service life can reach more than ten years; |

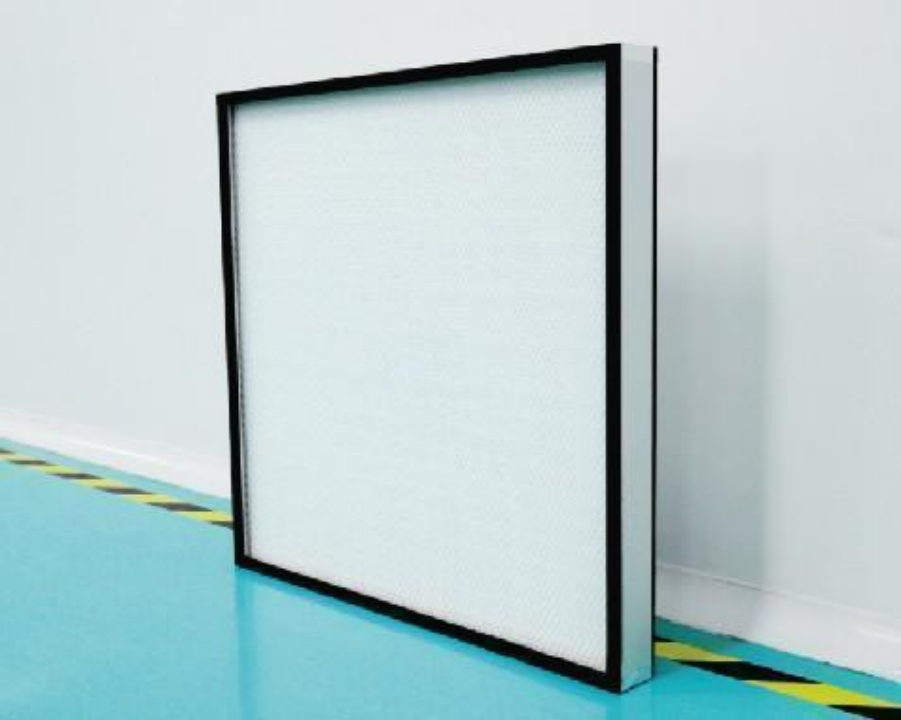

 | High efficiency filter High efficiency filter without partition, special aluminum alloy outer frame, stable efficiency and uniform wind speed, filtration efficiency of 99.99% (0.3um), long life and strong adsorption capacity; |

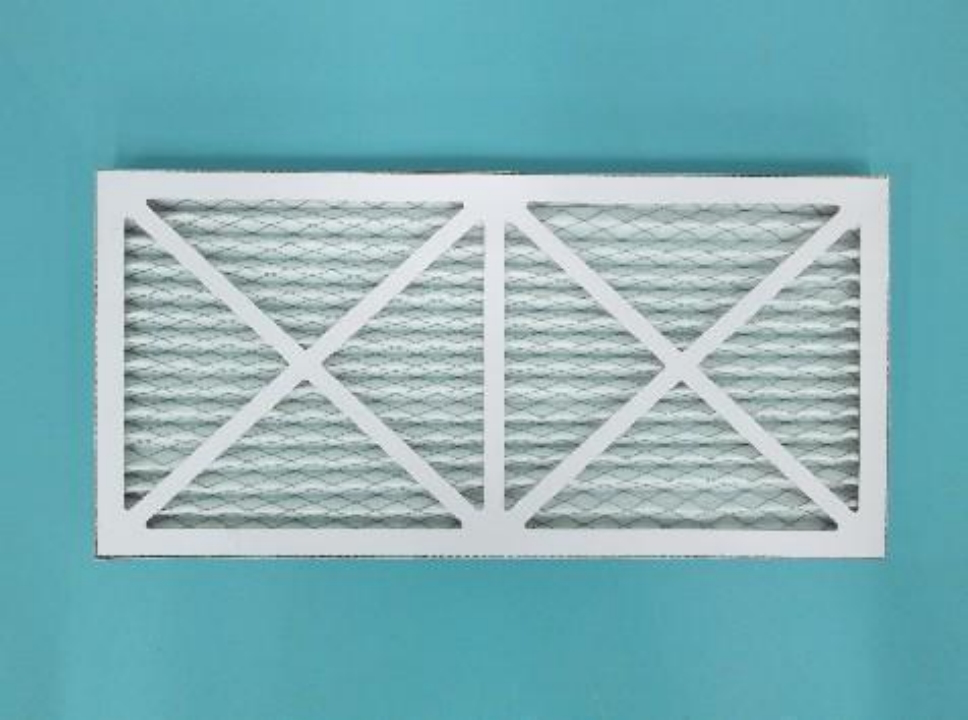

 | Primary filter Foldable paper frame primary filter, easy to replace, filters dust particles above 5μm, G4 coarse air filter, with stainless steel punched return air plate |

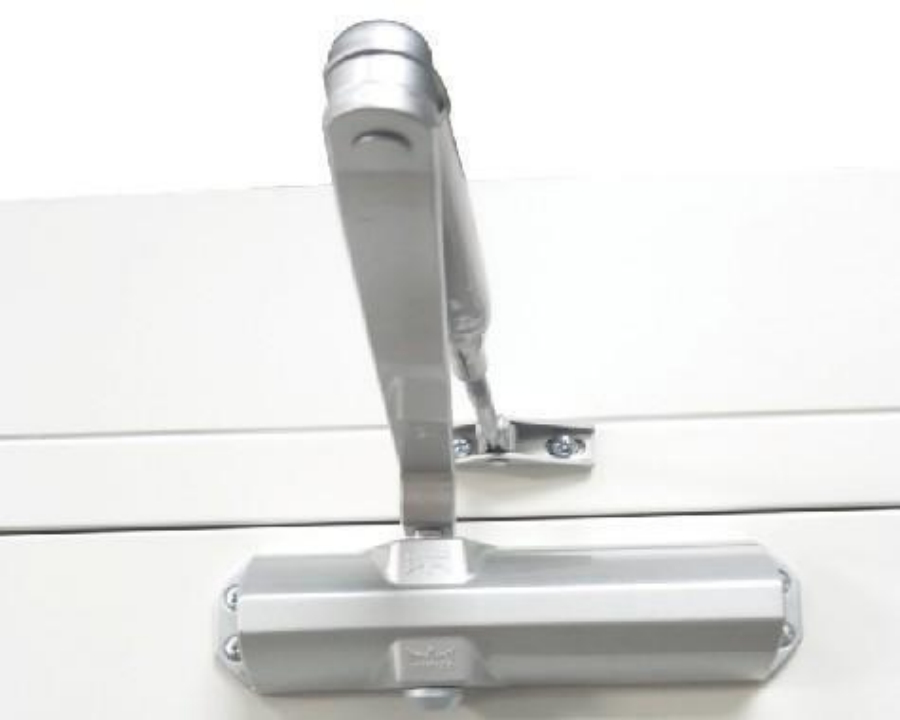

 | Door closer Specialized German DORMA door closer with a history of more than 100 years, aluminum alloy movement, strong and durable, impact-resistant and non-deformable, ultra-high quality standards, long service life, KFC exclusive |

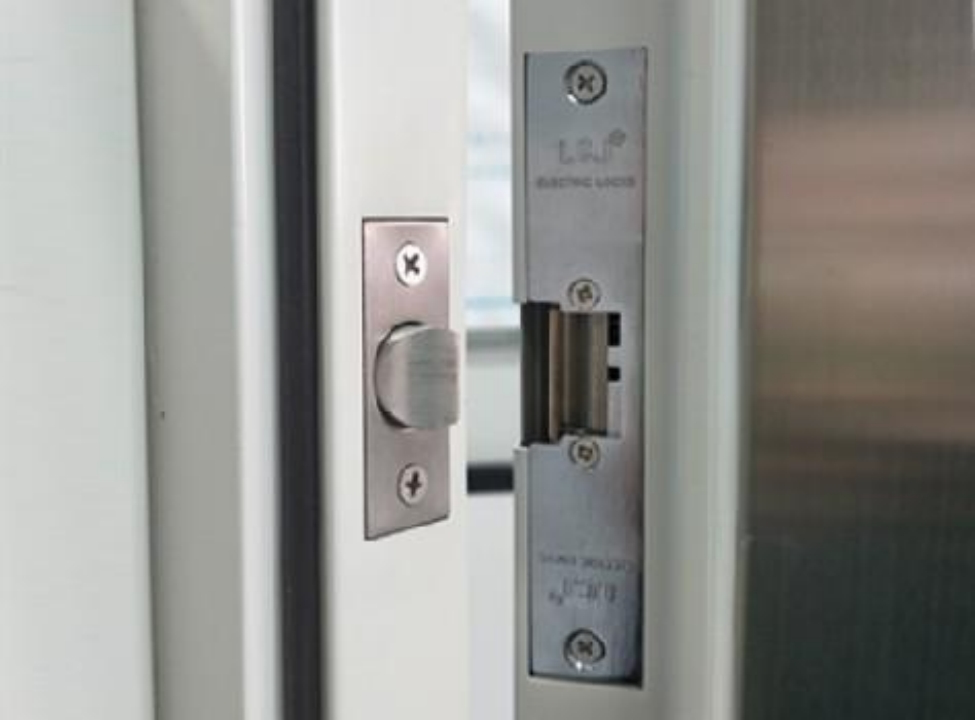

 | Electronic interlock Use domestic first-line brand LCJ electronic interlock, all stainless steel lock core, power on to lock, power off to unlock, ten-year warranty; |
 | Special hinges Special stainless steel 3mm thick hinges, embedded installation, durable and corrosion-resistant; |

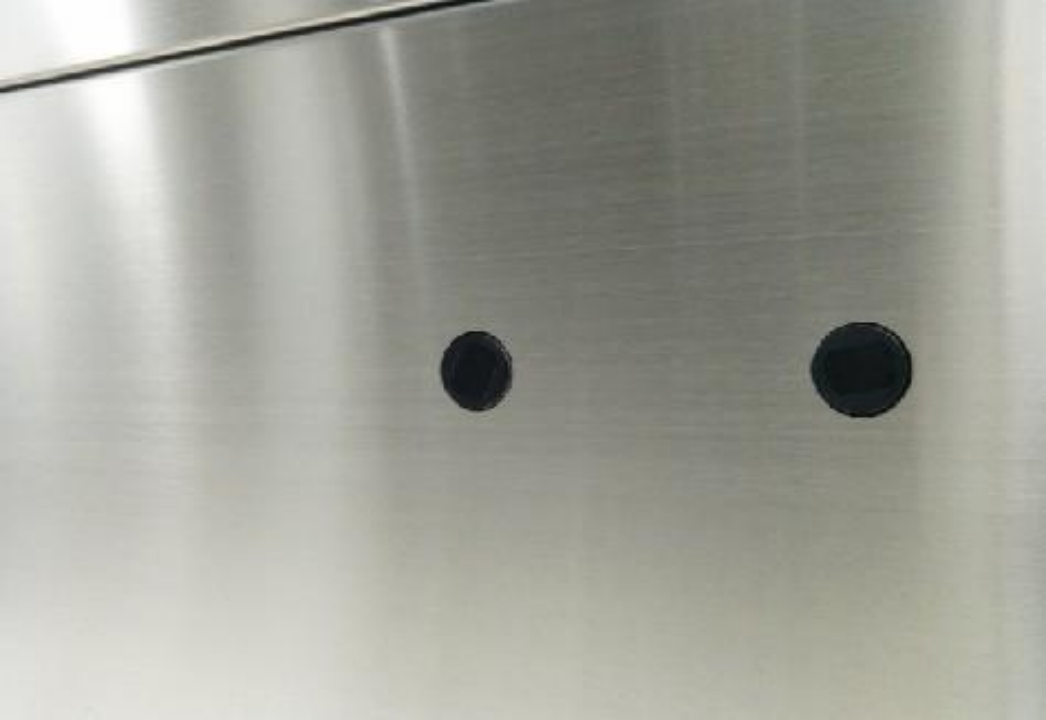

 | Photoelectric sensor Two photoelectric sensors, one for reset and one for blowing, two-way sensing for blowing when entering from the front door, no blowing when entering from the back, energy saving and electricity saving |

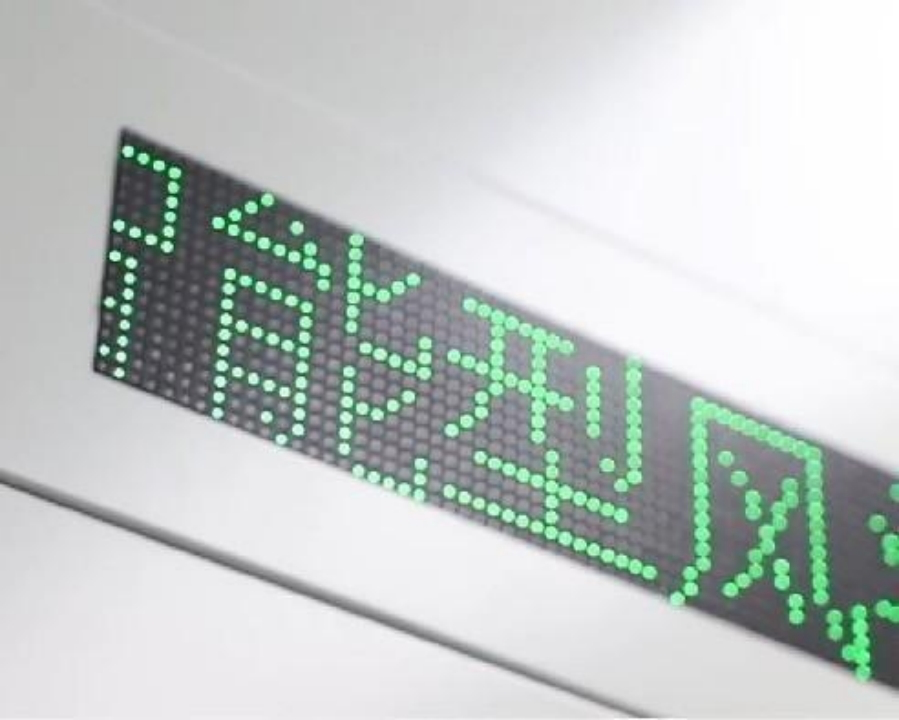

 | LED scrolling screen The upper LED scrolling screen is connected to the electronic chain system, the door entry and exit instructions are beautiful and clear, and the corporate culture slogan can be edited; |

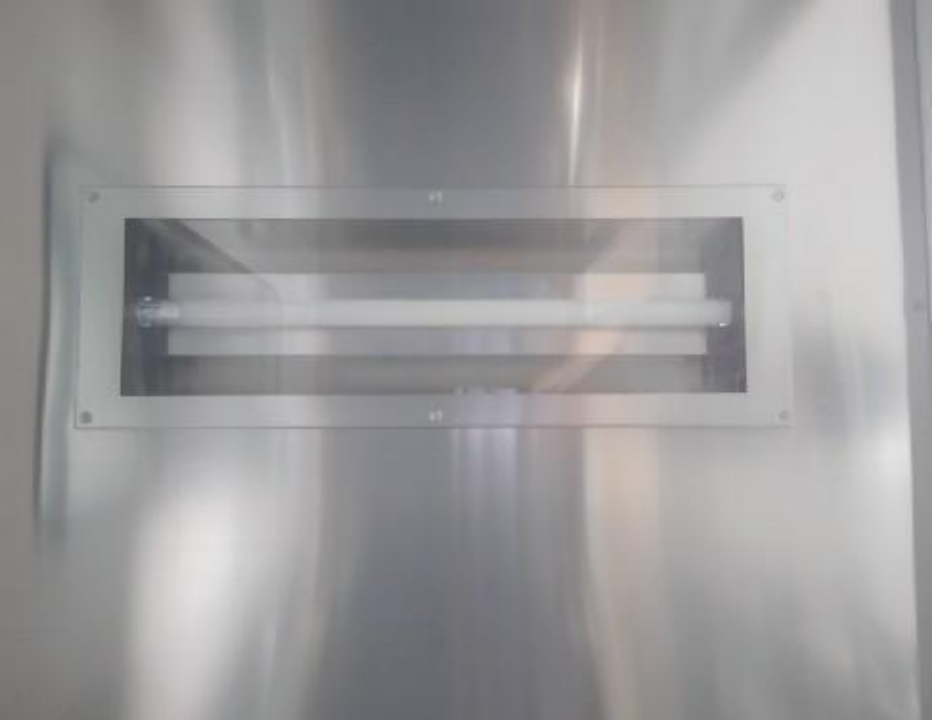

 | Lighting Philips LED fluorescent lamp, embedded installation, not easy to accumulate dust, energy-saving and environmentally friendly; |

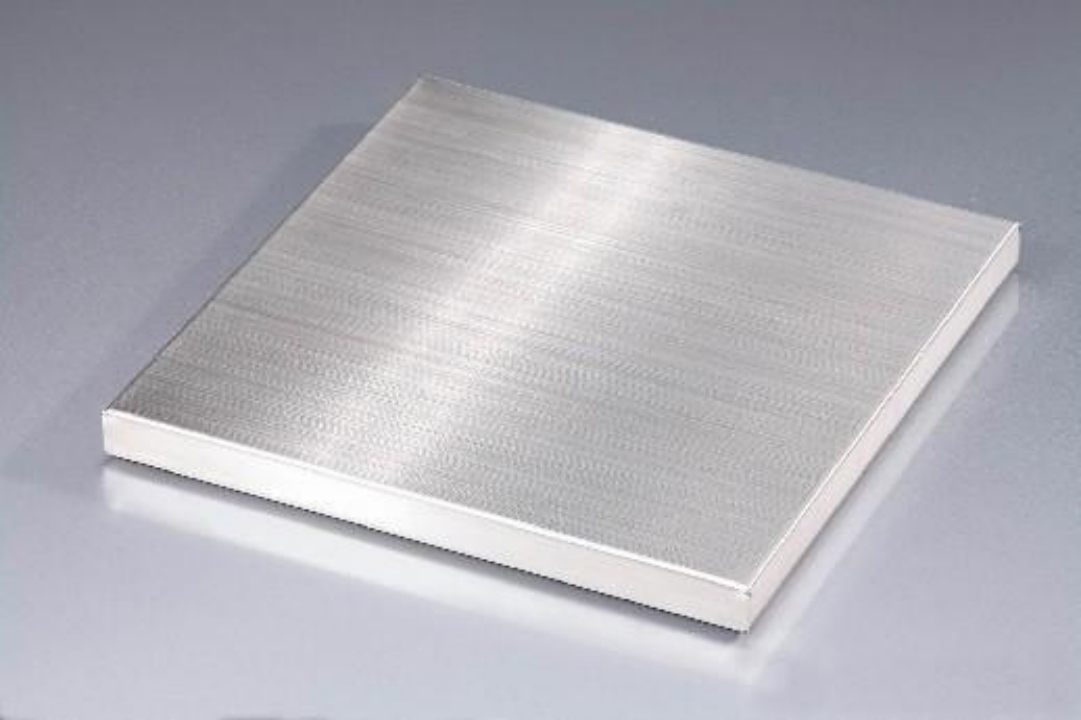

 | SUS304/201 stainless steel Overall brushed, durable and easy to clean |

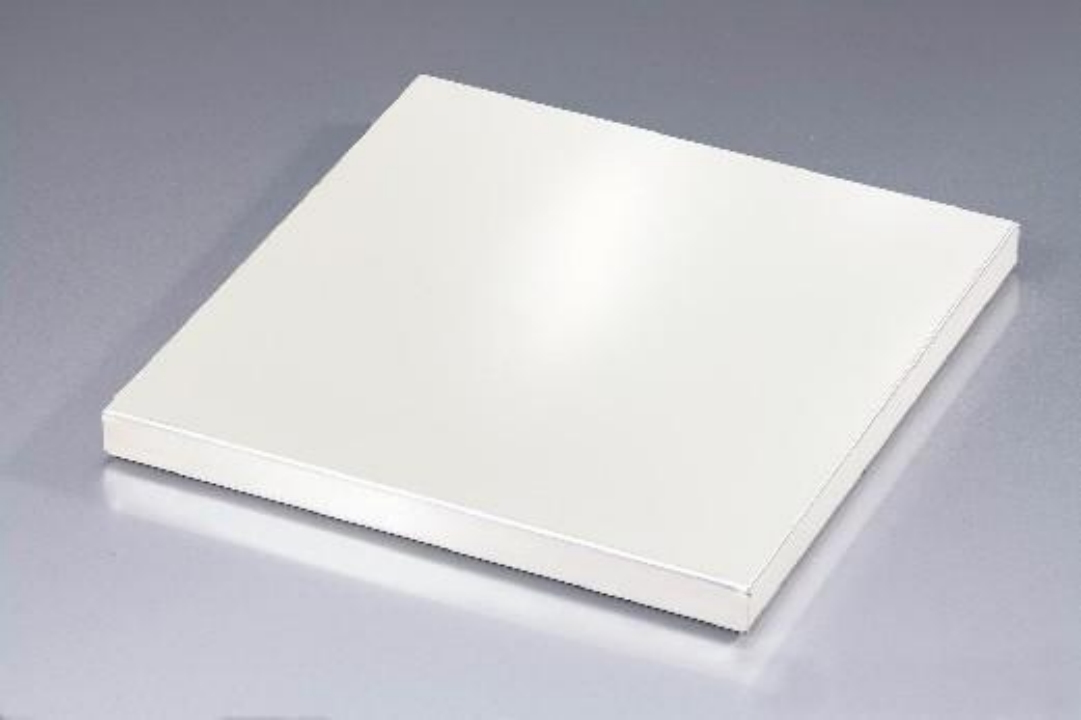

 | Painted steel plate Soft and uniform color, easy to clean without leaving stains |
