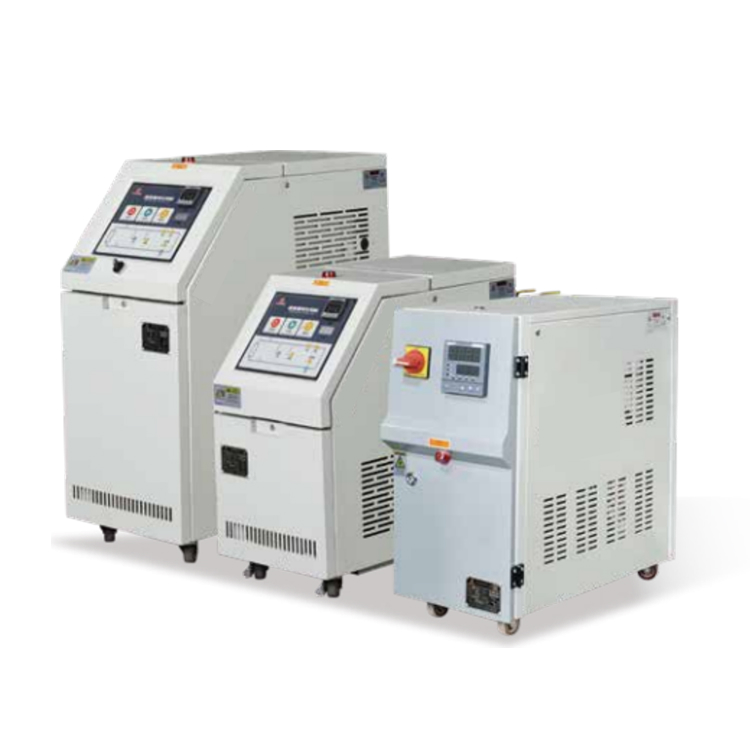

This unit is crafted to solve temperature fluctuation challenges in industrial production, ensuring process stability, improving product quality, and enhancing operational efficiency. Whether for small-scale workshops or large manufacturing lines, its compact design and efficient performance deliver cost-effective thermal control solutions.
Equipped with professional PID control systems, the Standard Water Temperature Control Unit achieves an impressive temperature control accuracy of ±1℃. This precision eliminates product defects caused by temperature deviations, ensuring uniform quality across production batches.
Adopting a direct cooling method, the unit rapidly dissipates excess heat, reducing energy consumption while maintaining fast temperature response. The direct heat exchange design optimizes cooling efficiency, making it ideal for continuous production processes.
The unit integrates multi-dimensional alarm functions, including pump reversal detection, water shortage alerts, and overload protection. Real-time notifications enable timely troubleshooting, preventing equipment damage and production downtime.
With dimensions as compact as 650×288×645mm (for most models), the Standard Water Temperature Control Unit fits seamlessly into limited workshop spaces. Its modular structure simplifies layout planning and future expansion.
Powered by AC3P 380/400V 50Hz (3phase+Earth) electricity, the unit ensures consistent operation even in high-load industrial environments. The reliable power configuration minimizes voltage fluctuations, safeguarding long-term operational stability.
ITEM | UNIT | MODEL | |||
AWM-05(A) | AWM-10(A) | AWM-20 | AWMD-10 | ||
Temp control range | ℃ | Inlet water temperature +25℃-100℃ | |||
Temp control accuracy | ℃ | PID±1℃ | |||
Power supply | AC3P 380/400V 50Hz(3phase+Earth) | ||||
Heat transfer medium | Water | ||||
Cooling method | Direct Cooling | ||||
Heating capacity | kW | 6 | 9 | 12 | 9+9 |
Motor power | kW | 0.37 | 0.75 | 1.5 | 0.75+0.75 |
Pump flow | L/min | 26 | 100/33 | 150 | 100+100 |
Pump head | m | 15 | 16/20 | 18 | 16 |
Max. power consumption | kW | 6.37 | 9.75 | 13.5 | 19.5 |
Alarm function | Pump reversal/Water shortage/Overload | ||||
Cooling water pipe | inch | 1/2 | 1/2 | 1/2 | 1/2 |
Circulating water pipe | inch | 3/8*2 | 3/8*4 | 1 | (3/8*4)*2 |
Size(L×W×H) | mm | 650*288*645 | 650*288*645 | 650*288*645 | 800*420*750 |
Ideal for injection molding and blow molding processes, the Standard Water Temperature Control Unit regulates mold temperature to ensure smooth plastic flow, reducing product warpage and improving surface finish.
Maintains stable temperatures for electronic assembly lines, preventing overheating of sensitive components during soldering and testing, thus enhancing product reliability.
Controls temperature in food production equipment such as pasteurizers and mixers, complying with food safety standards while preserving product flavor and nutritional value.
Suitable for research laboratories and pilot plants, providing precise temperature control for experimental setups and small-batch production processes.
The direct cooling system and optimized motor design reduce maximum power consumption to as low as 6.37kW, cutting operational costs compared to conventional temperature control equipment.
Compact dimensions and standardized pipe connections (1/2 inch cooling water pipe) simplify installation. The modular internal structure allows for quick maintenance and part replacement.
Constructed with high-quality materials and rigorously tested, the unit withstands harsh industrial environments, ensuring long service life and minimal downtime.
Offers professional-grade precision at a competitive price point, making it accessible for small and medium-sized enterprises (SMEs) without compromising on performance.
Ensure a minimum clearance of 30cm around the unit for ventilation.
Use compatible pipes (as per specifications) and secure connections to prevent leaks.
Connect to a stable AC3P 380/400V 50Hz power supply with proper earthing.
Fill the circulating system with clean water (heat transfer medium).
Set the desired temperature via the control panel.
Start the unit and monitor the temperature display for stabilization.
Regularly check the alarm indicator and resolve alerts promptly.
Replace circulating water every 3 months to prevent scaling.
Inspect pump operation and pipe connections monthly.
Clean the cooling system annually to maintain efficiency.
It supports temperatures from inlet water temperature +25℃ to 100℃, with PID±1℃ accuracy.
No, this unit is specifically designed for water as the heat transfer medium to ensure optimal performance.
Stop the unit, check for pipe leaks or insufficient water levels, refill if necessary, and restart after confirming no issues.
Routine maintenance (water replacement, visual inspection) is recommended every 3 months, with a comprehensive service annually.
Yes, it is engineered for continuous industrial use, with overload protection to safeguard against prolonged operation.
