The Air-Tight Auto-Closing Smooth-Operation Doors are a high-performance sealing solution designed for clean rooms and controlled industrial environments, targeting B-end buyers and engineering contractors with strict hygiene and airtightness demands. Combining stable mechanical structure with professional sealing technology, these doors deliver reliable automatic closing, smooth operation and long service life for high-frequency use scenarios. Made from corrosion-resistant and easy-to-clean panel materials, the air-tight auto-closing clean room doors maintain stable pressure difference and block unfiltered air, dust and contaminants effectively. They comply with mainstream clean room standards including GMP and ISO14644, and can be customized in size, material and access control to fit pharmaceutical, electronics, food, medical and laboratory projects. With strong structural stability and low maintenance cost, they become a key component for modern clean room enclosure systems.
Equipped with full-perimeter automatic sealing system, the door forms a tight seal around frames and thresholds, maintaining required pressure differences and preventing cross-contamination between clean and non-clean zones. The sealing structure eliminates gaps and reduces air leakage to meet high-grade clean room requirements.
The door panel and frame support aluminium alloy and 304 stainless steel, both featuring smooth surfaces, high rigidity and resistance to wear and corrosion. They are easy to clean and disinfect, avoiding dust or bacteria buildup and complying with strict hygiene standards.
The built-in damping hinge system provides steady, noise-free automatic closing without slamming. It ensures gentle operation even under heavy daily use, reducing air turbulence and protecting internal airflow stability in clean areas.
The fully enclosed structure blocks insects, rodents and external pollutants, lowering biological contamination risks and supporting consistent cleanliness for production and R&D environments.
The door surface is seamless and flat with no dead corners, simplifying daily cleaning and upkeep. The robust structure reduces deformation and failure, delivering long-term reliability in industrial environments.
Specification Item | Standard Configuration & Optional Range |

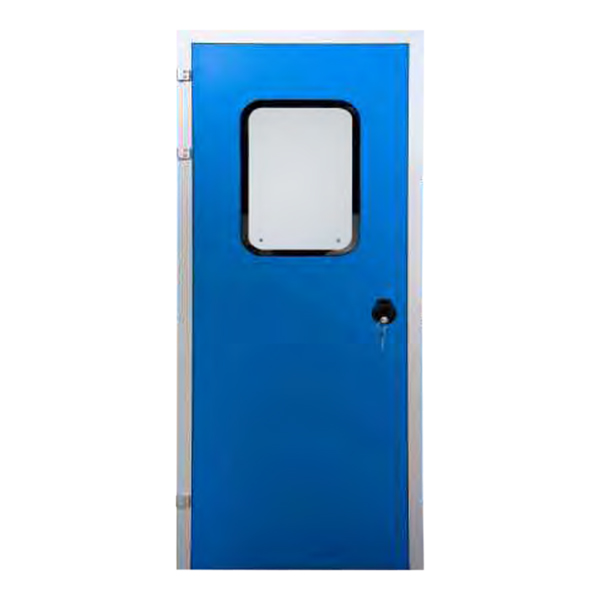

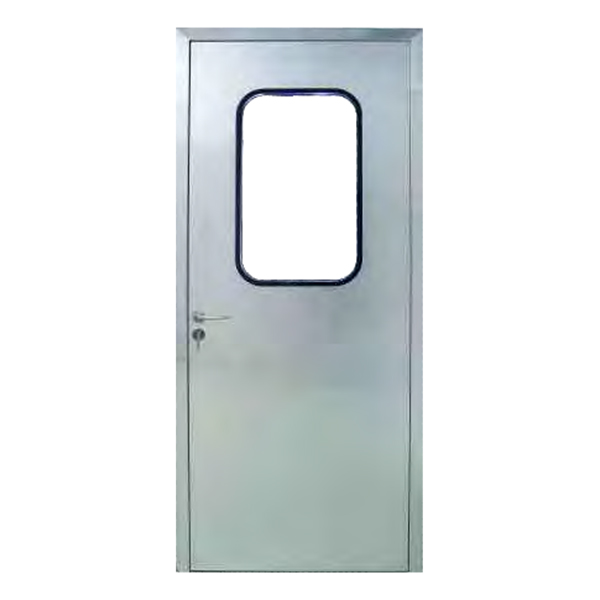

Main Material | Aluminium alloy / 304 stainless steel |
Sealing System | Automatic EPDM rubber sealing device |
Operation Mode | Manual push-pull + auto-closing (0.8–1.2s slow closing) |
Door Panel Type | With observation window / without window |
Airtightness Grade | ≥ Grade 6 (GB/T 7106-2019) |
Lock Type | Mechanical lock / electronic access control |
Applicable Pressure Difference | 0–50Pa |
Surface Treatment | Electrostatic spraying / stainless steel polished |
Customizable Size | Customized according to opening dimensions |
Inspect all components including door panel, frame, sealing strips, hinges and locks for completeness and damage. Confirm dimensions match the wall opening and clean the installation area to meet dust-free construction requirements. Prepare standard tools such as level, torque wrench and food-grade sealant.
Install and fix the door frame with expansion bolts, ensuring vertical and horizontal accuracy. Attach the automatic closing hinges and sealing mechanism to the door panel, then mount the panel to the frame and adjust tension for smooth motion. Apply neutral sealant at frame-wall joints to improve airtightness and prevent dust accumulation.
Verify automatic closing speed, tightness and locking function. Use pressure testing equipment to confirm sealing performance meets project standards. Check window and lock firmness, then clean the door surface to meet clean room presentation requirements.
Installation by experienced clean room technicians is recommended to avoid damage to sealing parts and ensure overall airtightness and structural stability.
Suitable for Grade A to D clean areas, filling rooms and sterile preparation zones, supporting GMP compliance and preventing cross-contamination in drug production.
Ideal for semiconductor, chip and precision component production lines, maintaining ultra-clean environments and reducing particle interference.
Applied in dairy, bakery and processed food workshops, with hygienic surfaces and pest-blocking design to meet food safety standards.
Used in operating rooms, sterile wards and bio-labs to block aerosol and bacterial spread, ensuring safe experimental and medical environments.
Supports high-cleanliness production and R&D environments, protecting raw material and finished product purity.
Clients may select aluminium alloy for cost efficiency or 304/316 stainless steel for high-humidity or corrosive environments.
Custom width, height and observation window shape are available. Surface color can be customized based on RAL color cards to match interior design.
Optional mechanical locks, IC card access control, fingerprint systems and emergency exit devices can be integrated based on security needs.
For large-scale clean room projects, we provide unified design, material matching and on-site guidance to ensure system consistency.
Yes. We provide enlarged door designs with reinforced hinges and frames to maintain stability and airtightness for logistics channels.
Clean sealing strips monthly and apply lubricant to hinges. Replacement parts and after-sales support are available for long-term B-end clients.
Yes. The structure is engineered for heavy-duty use, supporting hundreds of operations per day without deformation or failure.
Standard versions offer basic fire resistance; fire-rated upgraded options are available for projects with strict fire code demands.
