Definition
 | Clean bench is a clean equipment designed to meet the strict requirements of modern industrial technology on the working environment, providing users with a local clean working space of level 1-100. Due to its high cleanliness and mobility, it is widely used in optoelectronics, semiconductors, microelectronics, precision instruments, laboratories and other fields. |

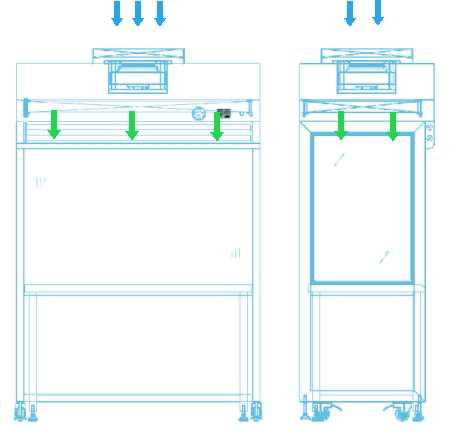

Principle - Vertical Flow
 | The airflow is vertical, with no upstream pollution and high cleanliness. It is widely used in optoelectronic components, microelectronics, optical lens assembly and testing, especially in the LCDTFT industry. It is currently the most widely used in clean work. |

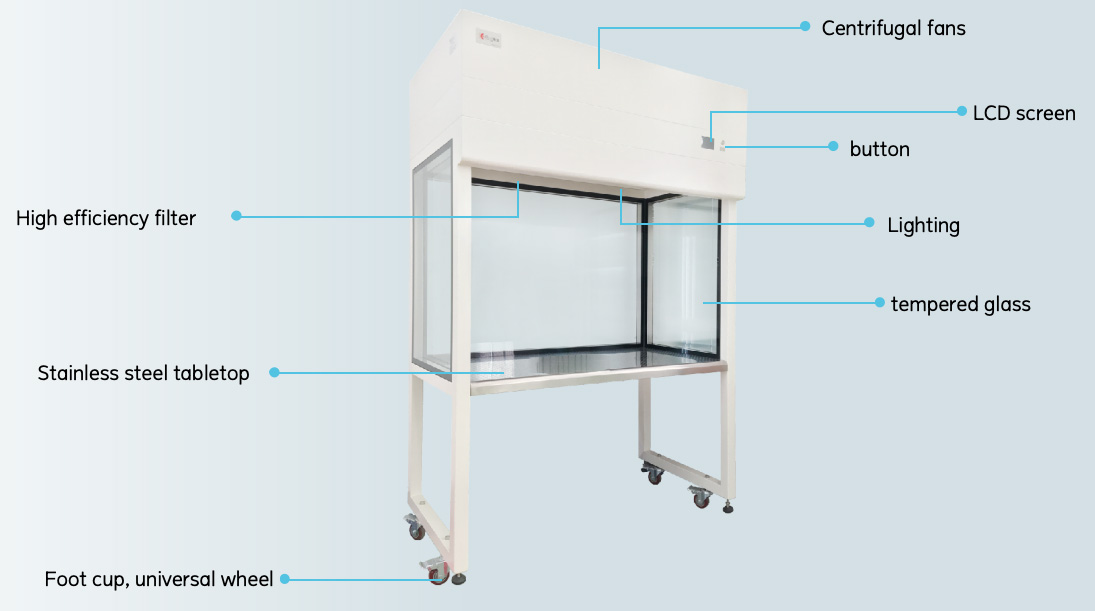

Composition Structure

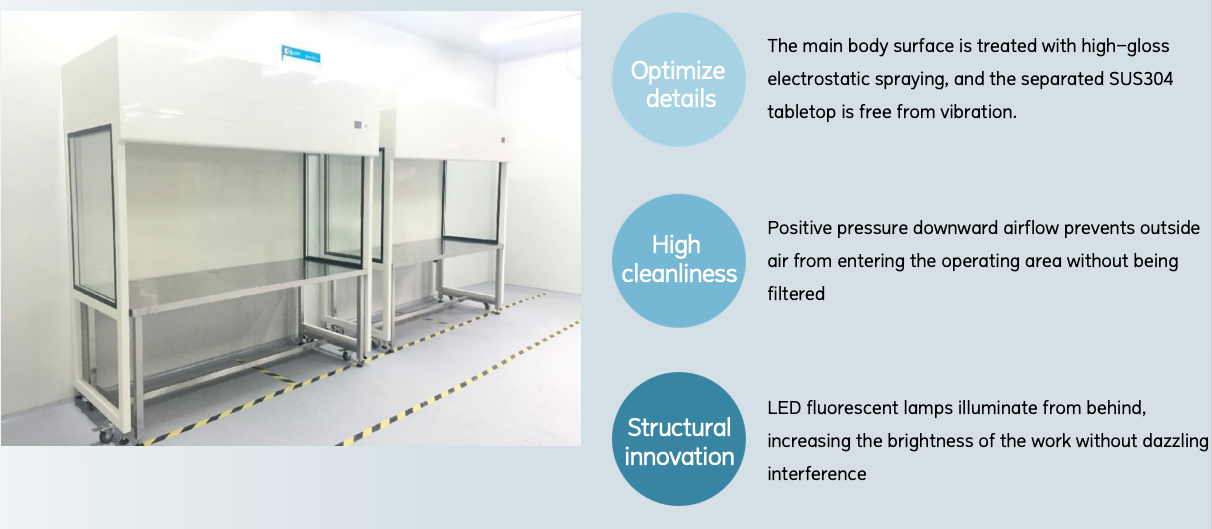

Features

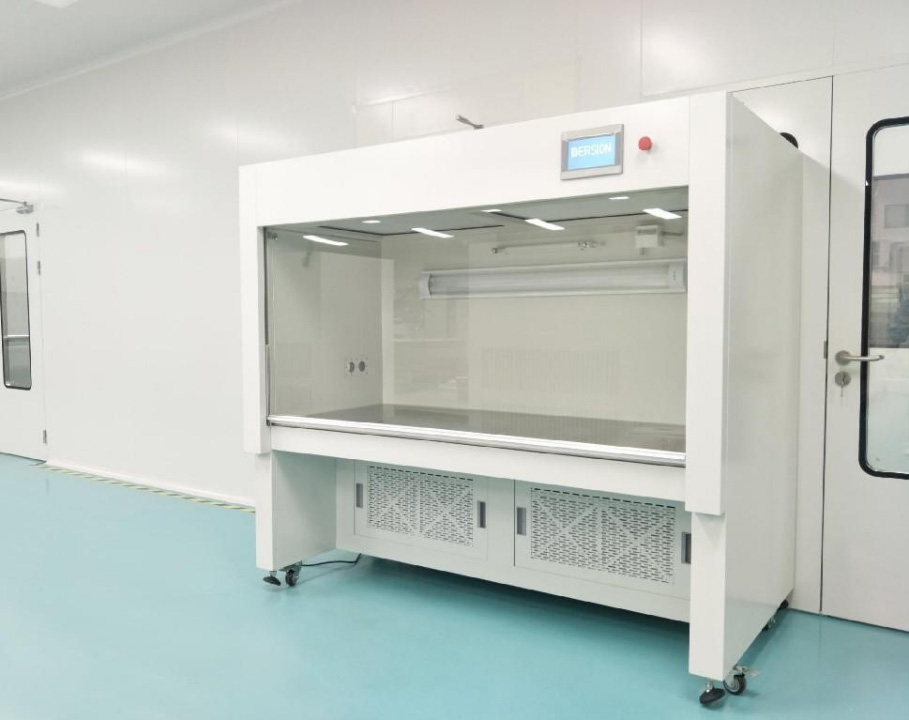

Principle - Lift Door Clean bench

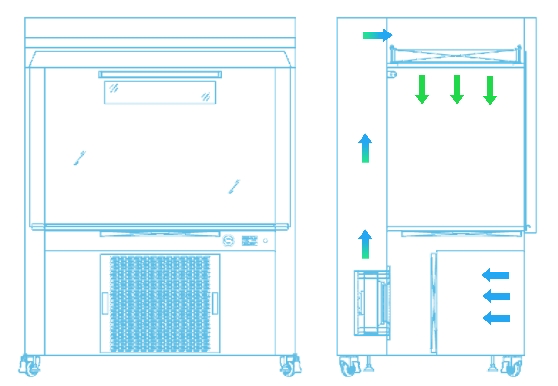

 | Utilizing the clean room air circulation principle and the work surface punching holes for air return, a small internal circulation is formed, which can effectively extend the service life of the high-efficiency filter. It is particularly suitable for use in ordinary environments and can be upgraded to a closed structure, making cleanliness control more convenient. It is mostly used in the medical industry. |

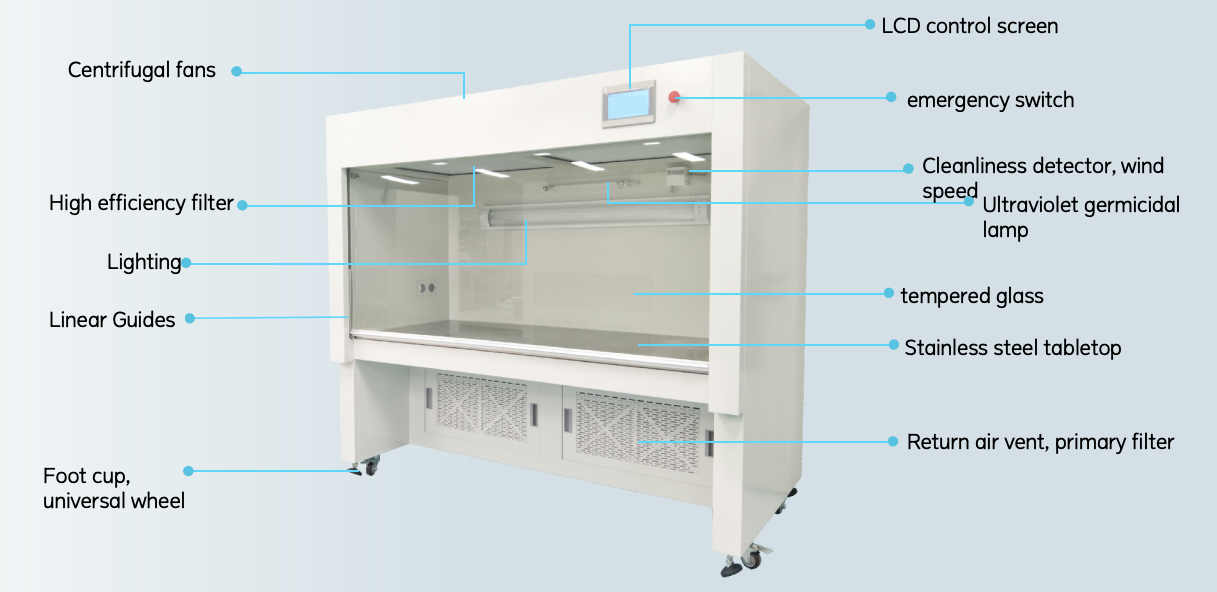

Composition Structure

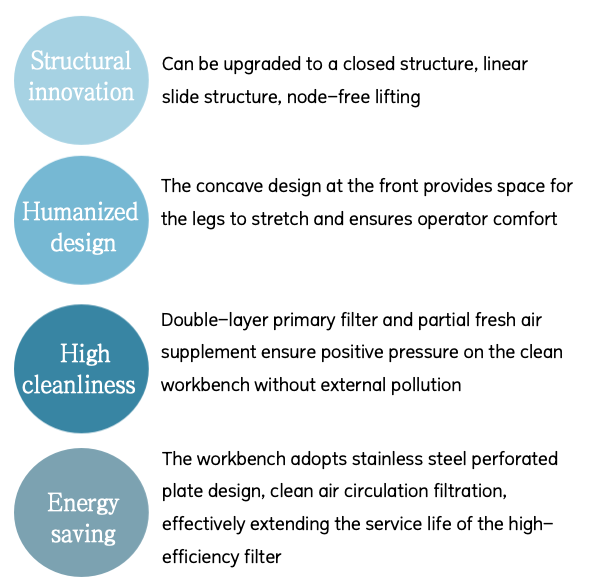

Features
 |  |
Technical Parameters
Tepy | Configuration | Options | ||||
Lifting door clean bench | Specification W*D*H | External:1060x1060x1800 Inner:860x750x800 | ||||
External:1360x1060x1800 Inner:1160x750x800 | ||||||
External:1660x1060x1800 Inner:1460x750x800 | ||||||
Number of users | 1 | 1-2 | 2-3 | |||
Main naterial | Stainless steel SUS304 | |||||
Bracket steel plate sprayed SPCC Desktop stainless steel SUS304 | ||||||
Air volume（m³/h) | 905 | 1205 | 1510 | |||
Wind speed（m/s) | 0.45m/s±20% | |||||
Cleanliness | Class100(US Federal standard209E) | |||||
HEPA Eff | 99.99%@0.3μm | |||||
HEPAsize | 610x610x70-1pcs | |||||
915x610x70-1pcs | ||||||
610x610x70-2pcs | ||||||
Germicidal lamp (optional) | 8W | |||||
noise | <56dB | <58dB | ||||
0.2m in front of the workbench and 1.2m above the ground | ||||||
Power | 220V 155W | 220V 175W | 220V 255W | |||
Product Configuration

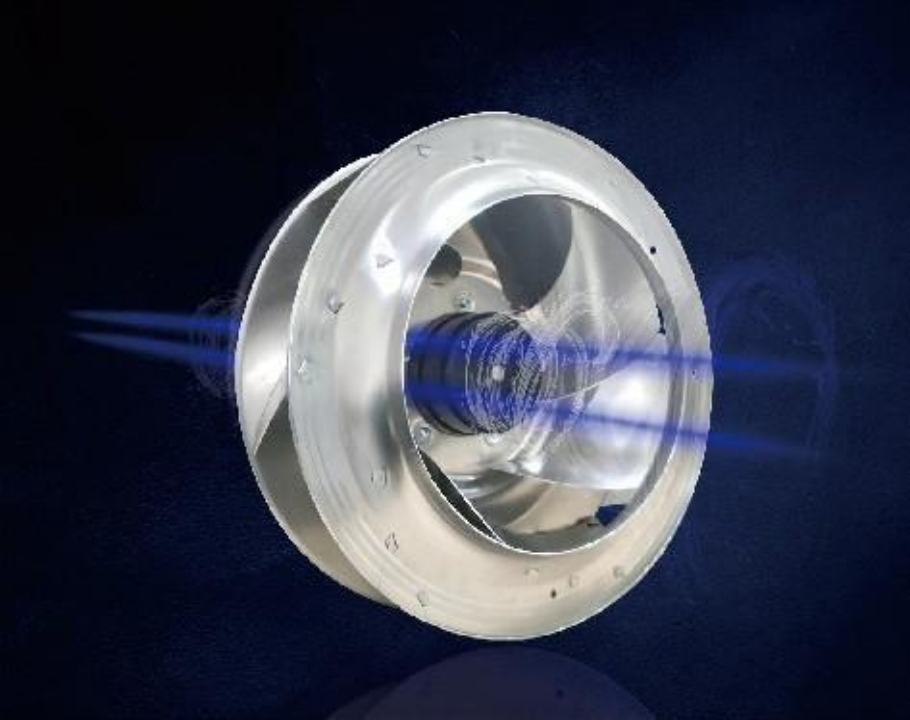

 | Special fan Imported centrifugal fan Maintenance-free large air volume external rotor centrifugal fan Can operate continuously for more than 50,000 hours Wind speed: 0.45m/s Optional DC motor is more energy-efficient |

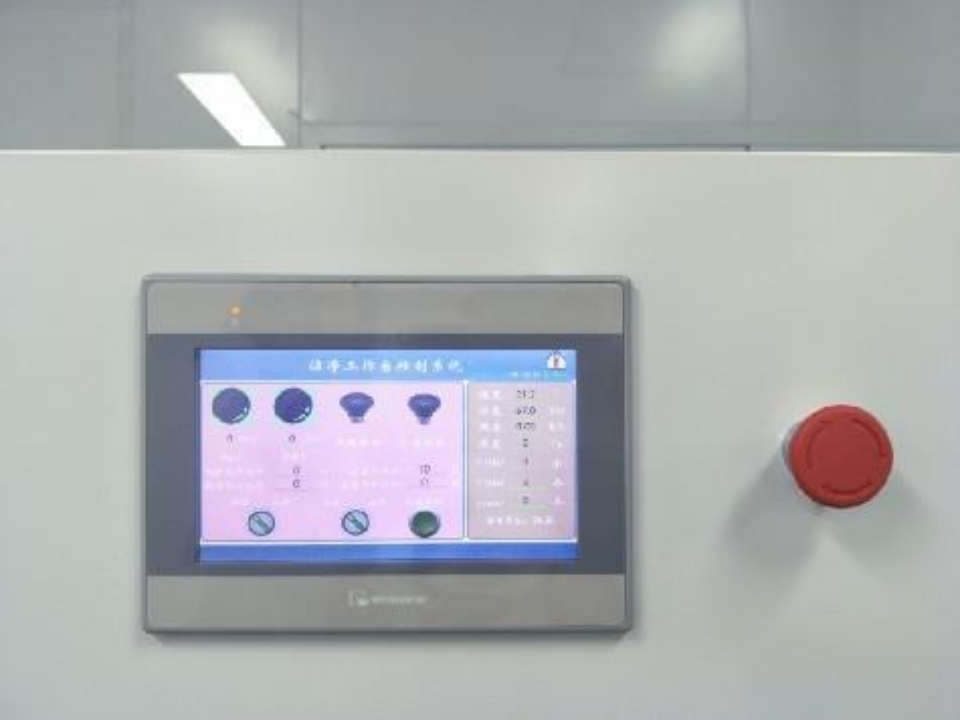

 | LCD control screen Uses 4.3-inch LCD touch screen Human-machine interface Fan/lamp/UV lamp switch Stepless wind speed control Real-time pressure difference monitoring Automatic alarm for fan failure |

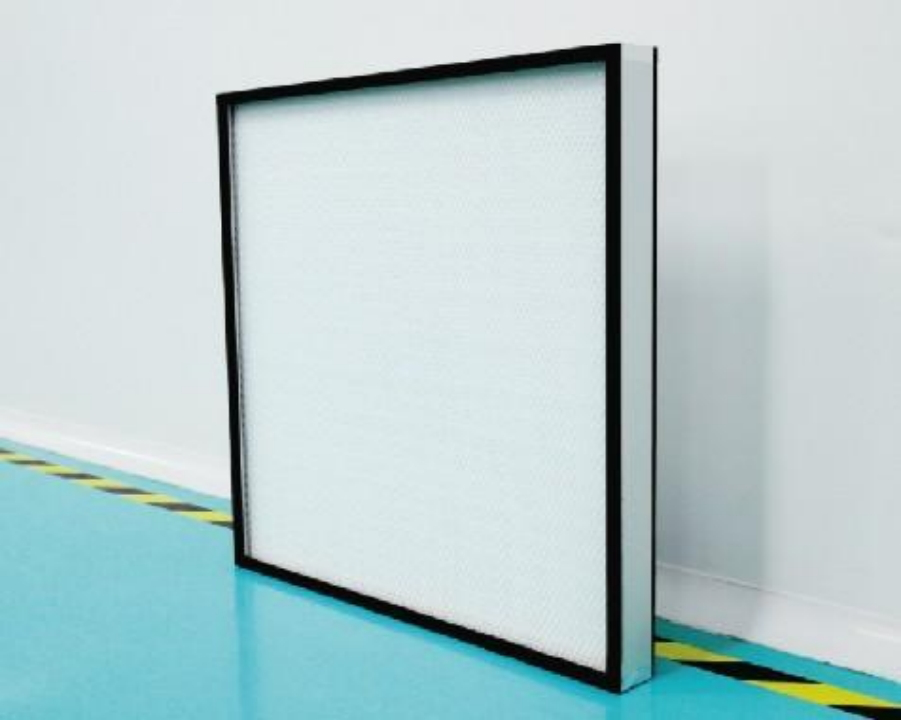

 | High efficiency filter High efficiency filter without partition, special aluminum alloy outer frame, stable efficiency and uniform wind speed, filtration efficiency of 99.99% (0.3um), long life and strong adsorption capacity; |

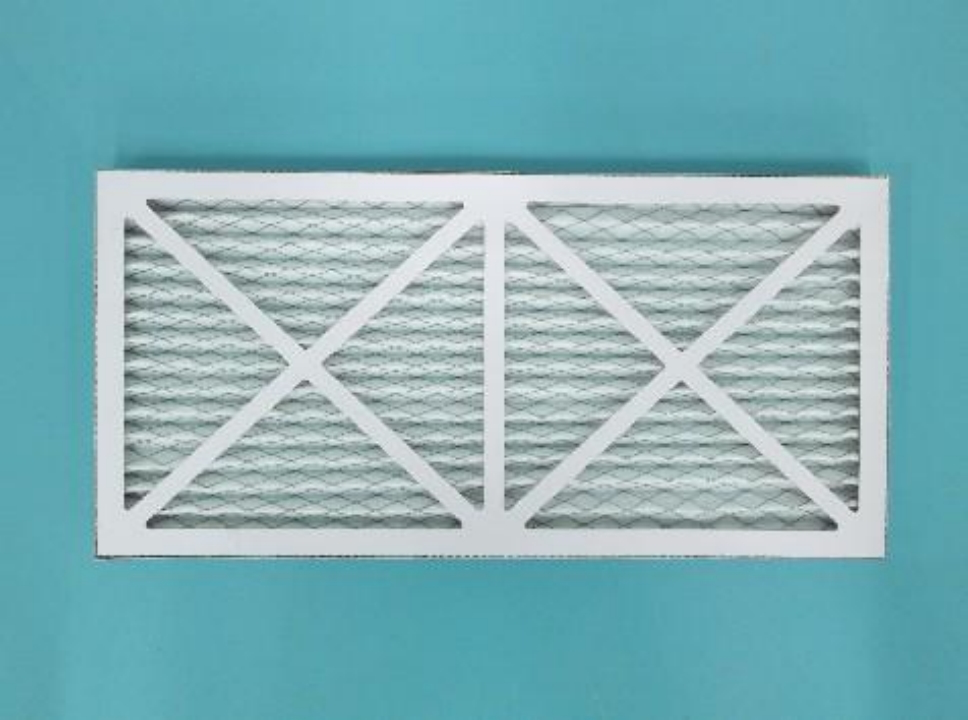

 | Primary filter Foldable paper frame primary filter, easy to replace, filters dust particles above 5μm, G4 coarse air filter, with stainless steel punched return air plate |

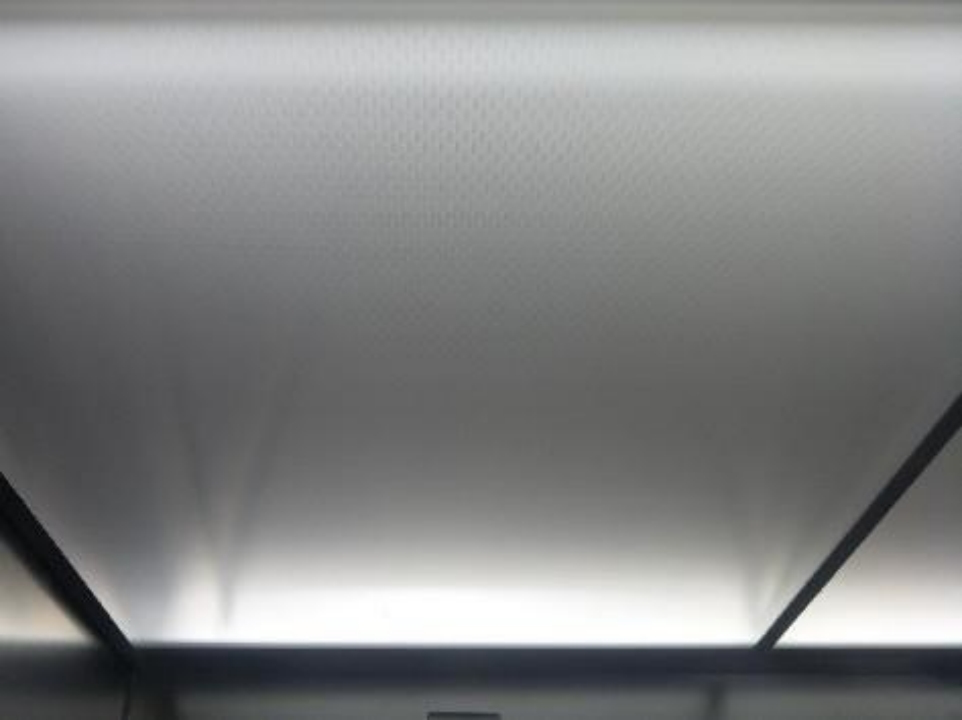

 | Diffuser Equipped with the latest flow-equalizing membrane technology Wind speed uniformity within ±10% |

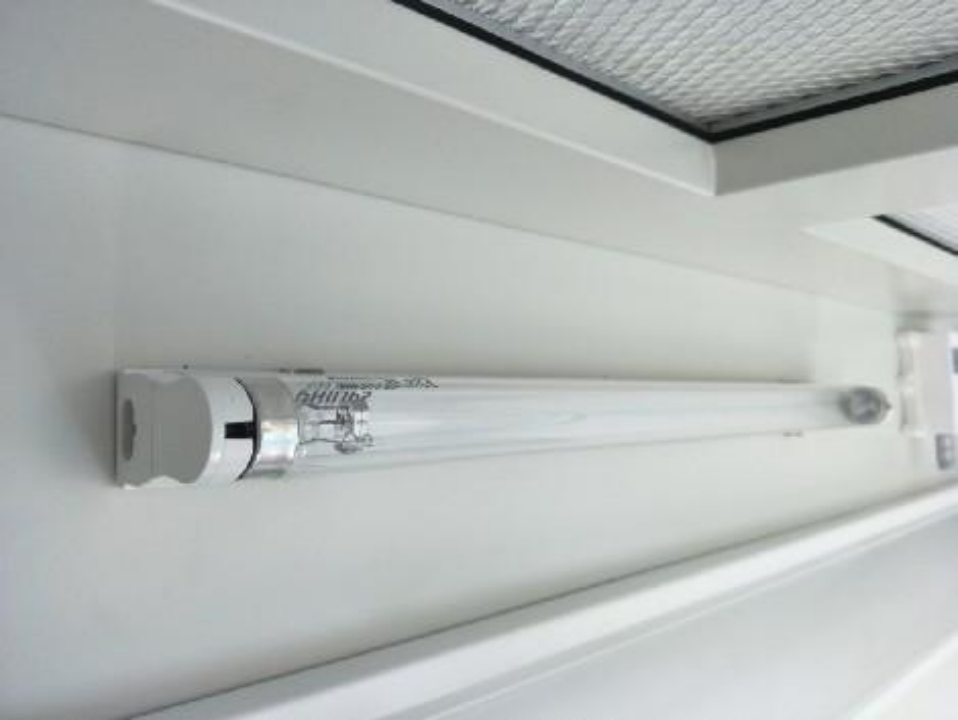

 | Ultraviolet sterilization lamp Using Philips ultraviolet sterilization lamp Optional: T8 18w/36w Service life: 8000h |

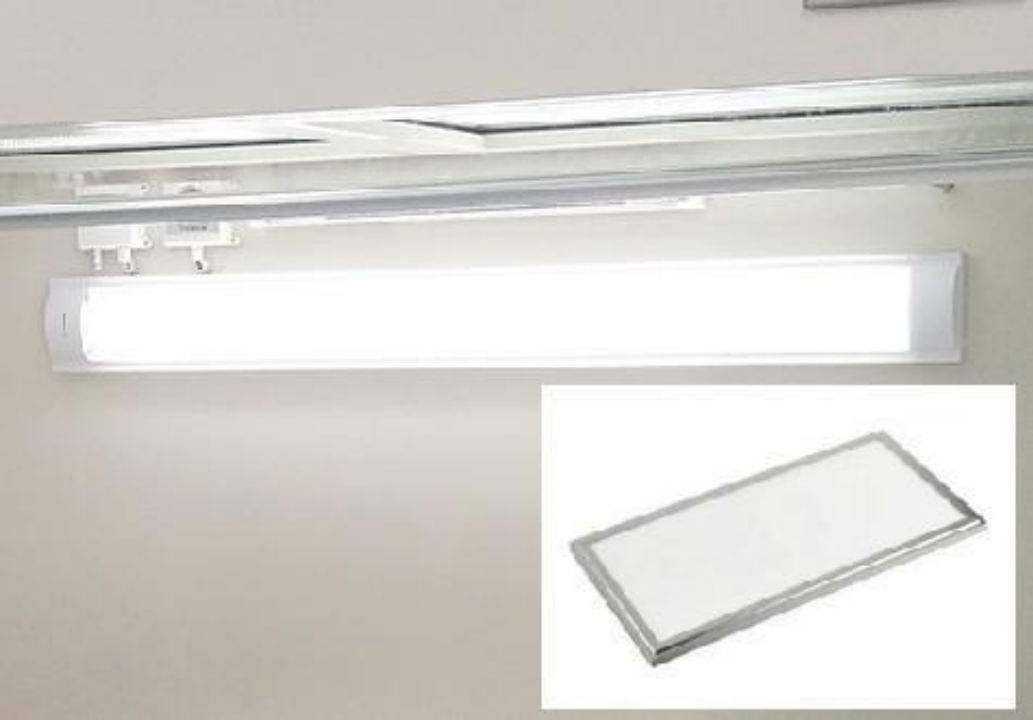

 | Lighting Philips lamp Illuminance: 500Lux Service life: 5000H Back illumination No glare |

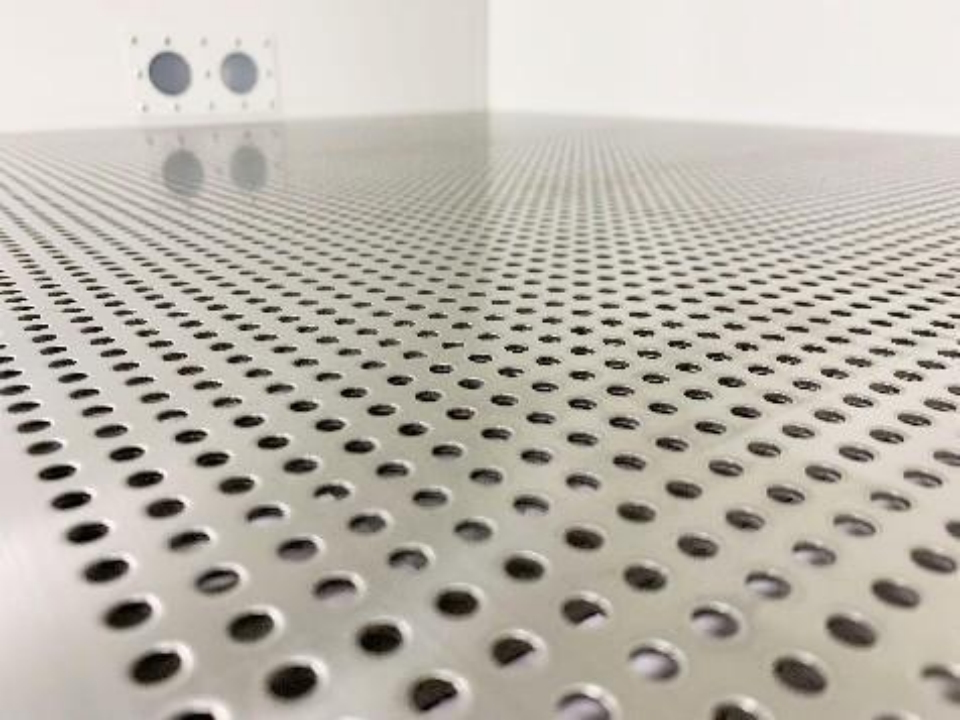

 | Tabletop Using integral SUS304 stainless steel Carbon content is approximately: ≤0.08% Thickness: 1.2mm Diffuser plate optional: ф5.2/6.8mm Optional vibration-free split tabletop |

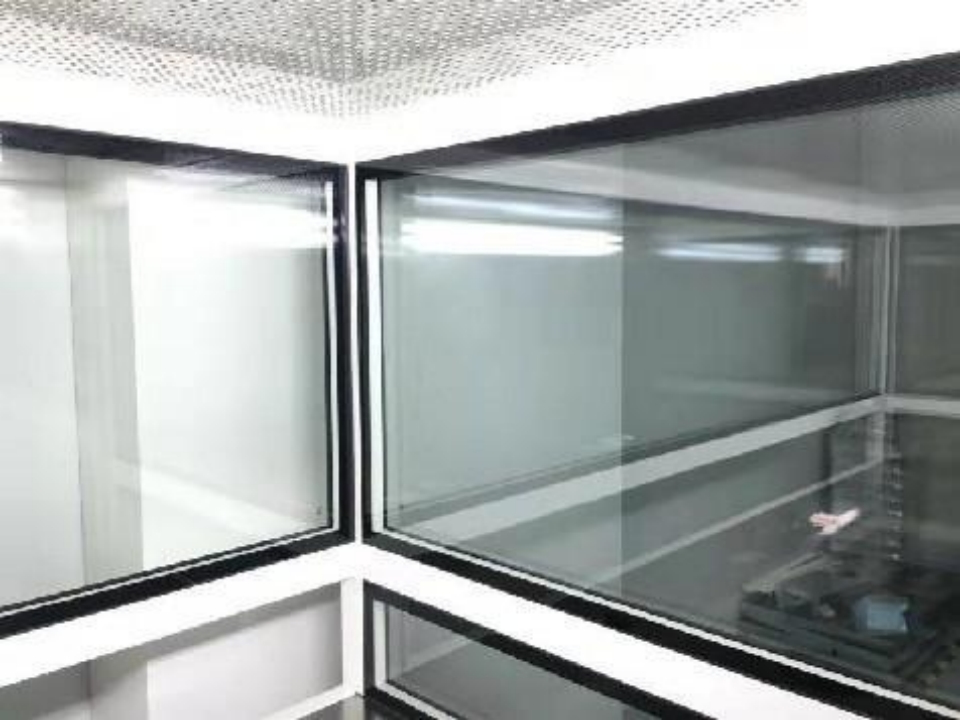

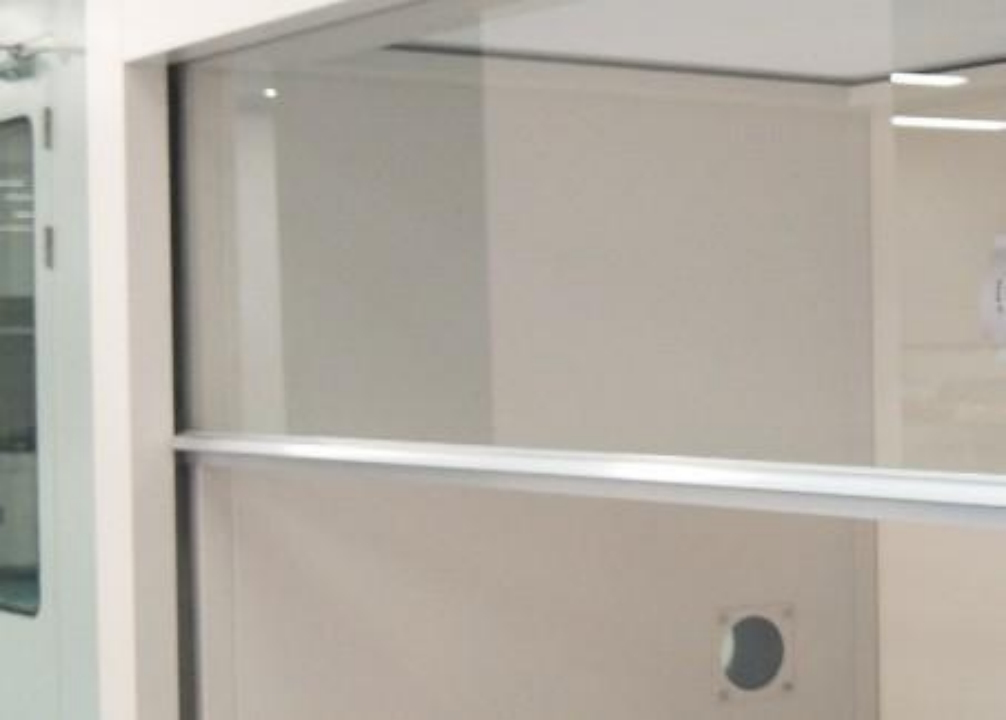

 | Hollow tempered glass Using double-layer hollow tempered glass Tempered glass thickness: 5mm Inner stainless steel decorative strips Black beautiful edge design |

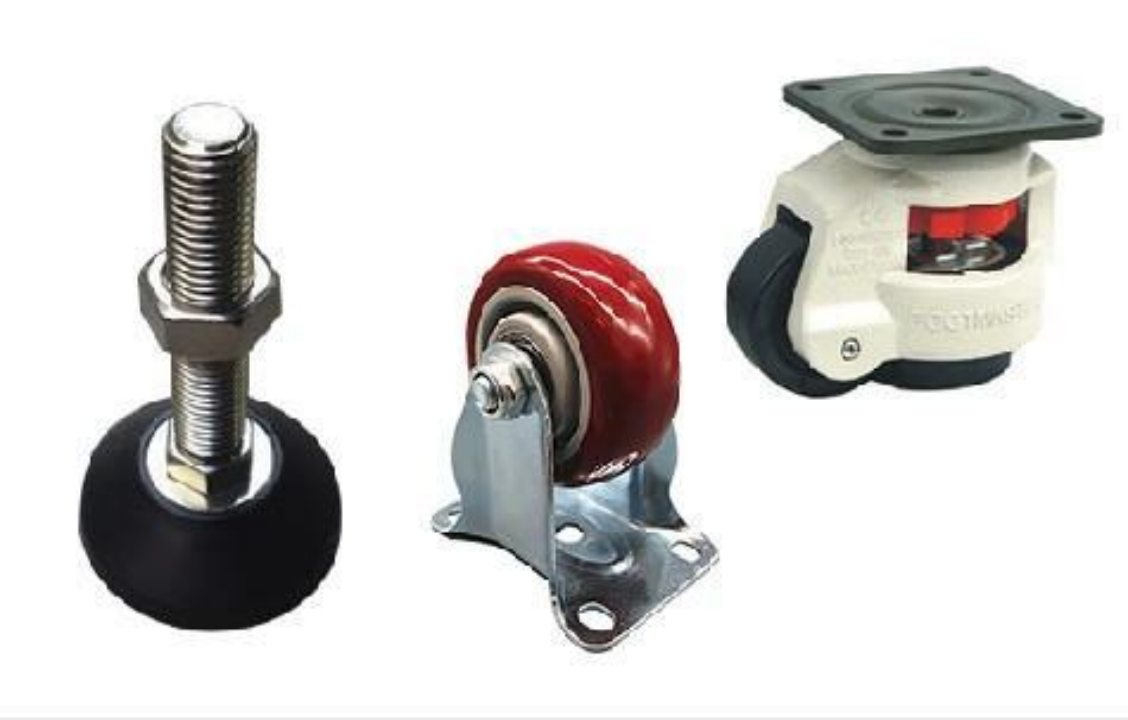

 | Universal wheel/foot cup Optional configuration: Fixed foot cup Universal wheel/Foma wheel; |
 | Hollow tempered glass Using double-layer hollow tempered glass Tempered glass thickness: 5mm Inner stainless steel decorative strips Black beautiful edge design |
 | Lifting door High-strength tempered glass sliding door Handle material: anodized aluminum alloy Linear slide rail + counterweight silent wheel Arbitrary height positioning Easy push and pull without noise |
