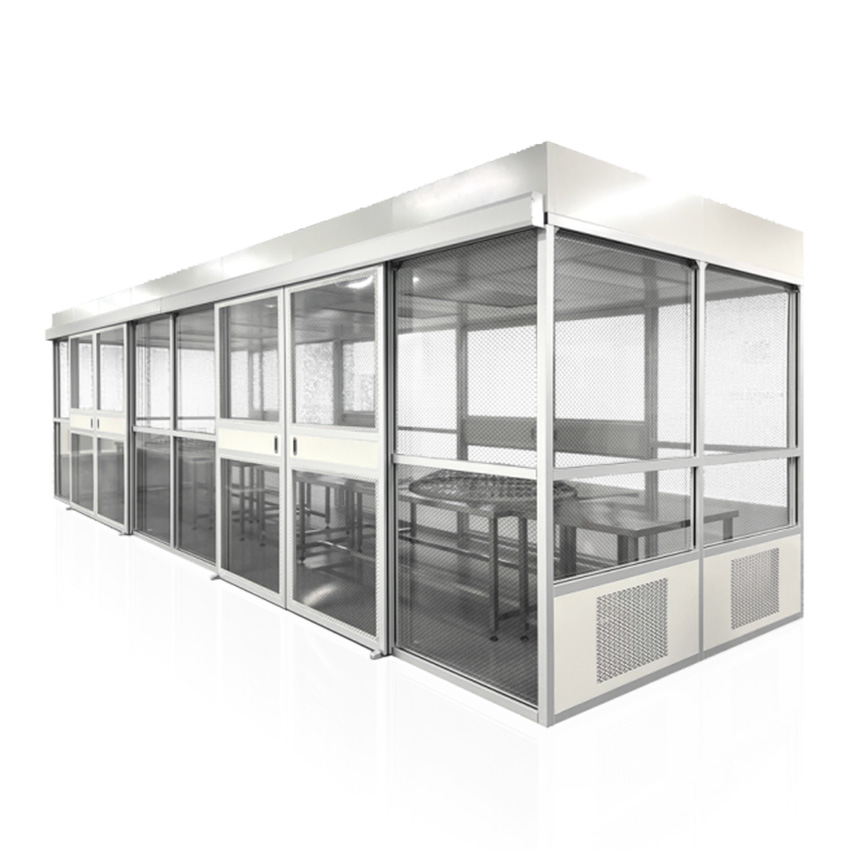

Clean Booth Solution

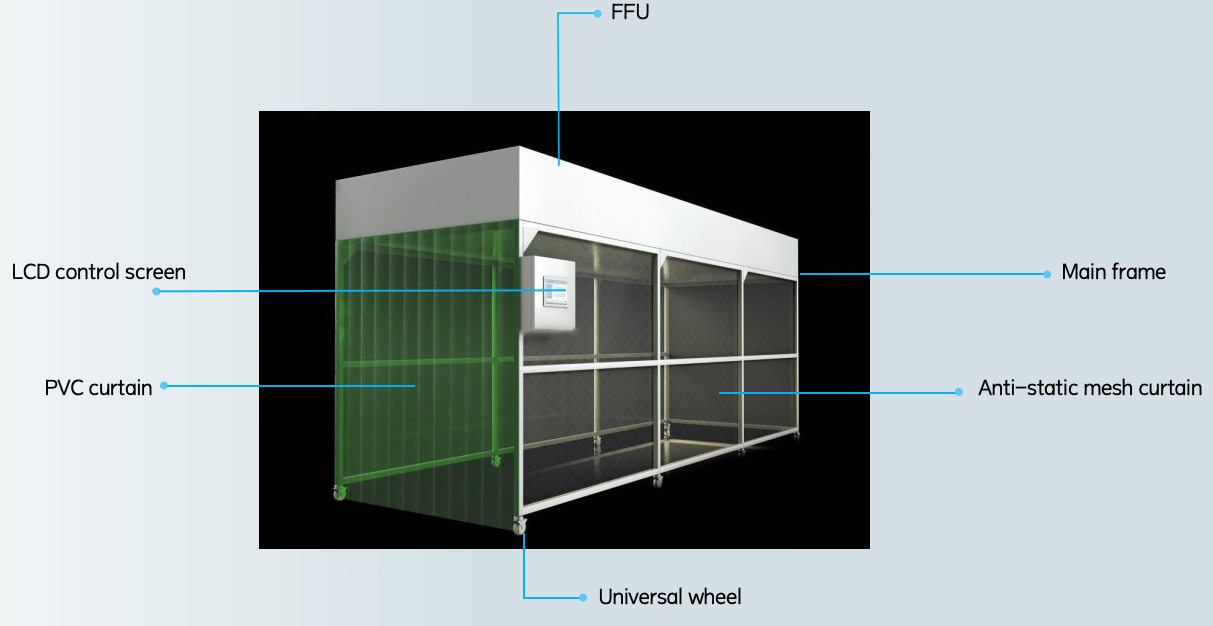

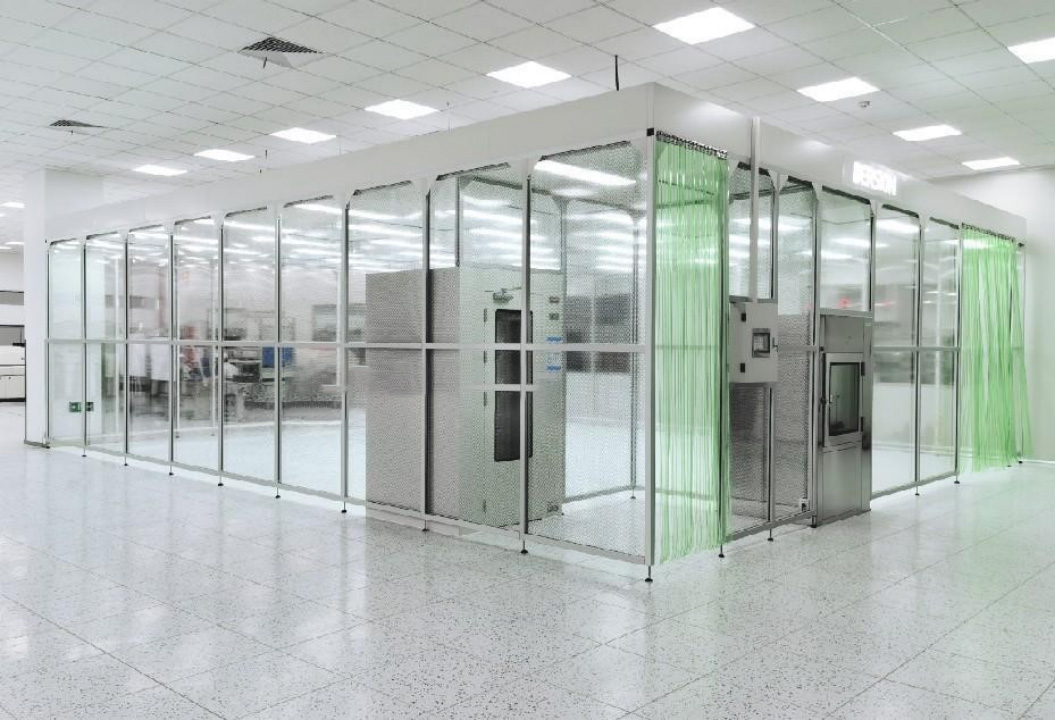

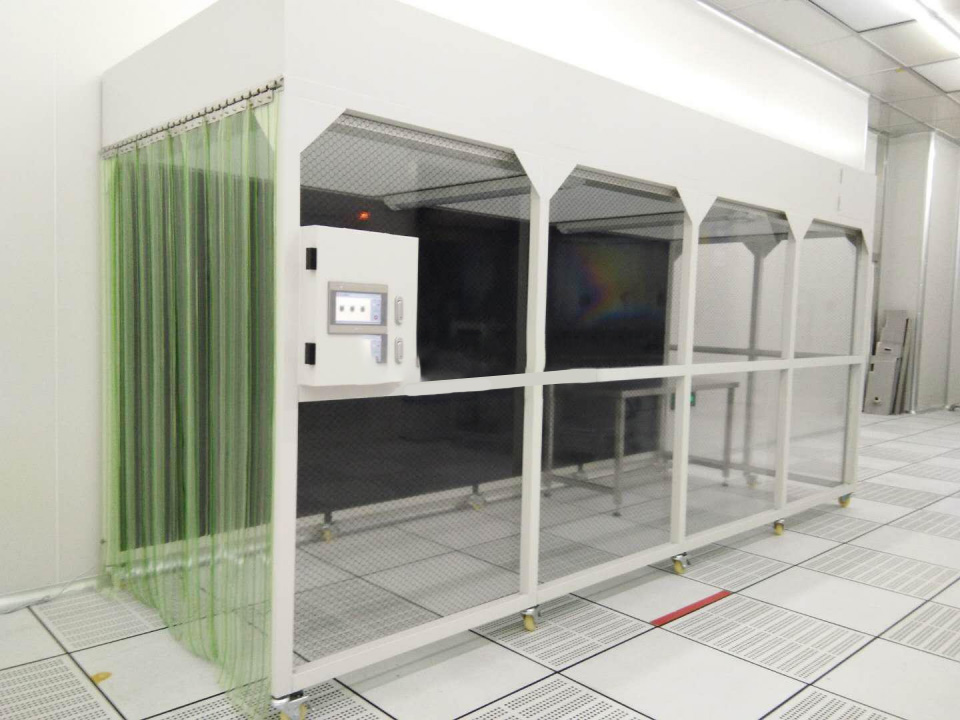

Clean booth is a simple clean room, which is a space purification equipment used to provide a local high-clean environment.

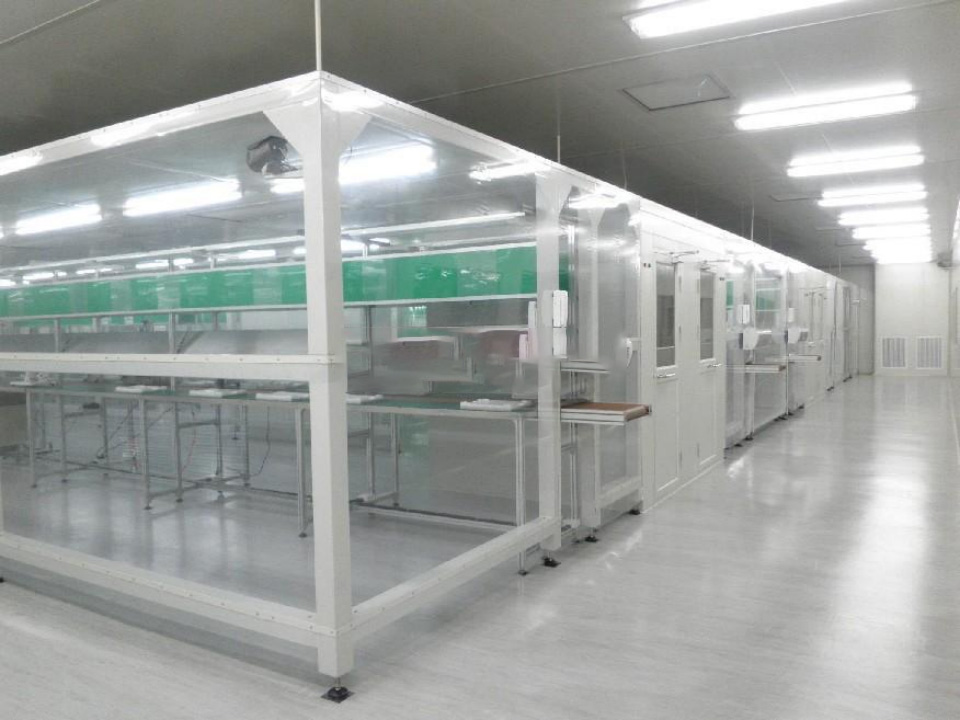

It has a variety of clean levels and space combinations, and can be designed and manufactured according to the use requirements. Its main features are simplicity, flexibility, easy installation, short construction period and strong mobility. The clean shed uses a fan filter unit FFU for air supply, the frame and ceiling are painted square tubes (or stainless steel square tubes, industrial aluminum), and anti-static curtains are maintained all around. The internal purification level can reach 10-100k, and it is widely used in local high-cleanliness occasions such as optoelectronics, electronic assembly line operations, laboratories, and assembly areas.

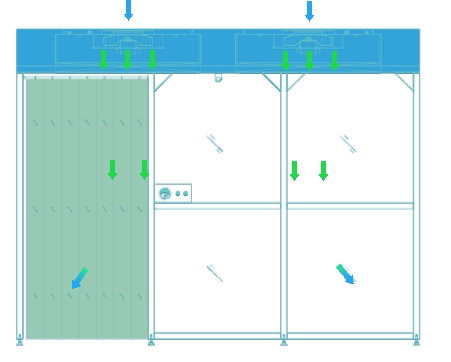

Primary and efficient filtration of clean airflow from top to bottom, continuously diluting indoor air, quickly discharging indoor pollution from the bottom, thus achieving purification effect;

Clean rooms of different levels are mainly achieved by different ventilation volumes per unit time.

Fast

Quick assembly, completed in 3-5 days

Flexible

Can be used alone or in combination, and can be matched with the assembly line

Featured

Imported centrifugal fan, PVC mesh curtain, adjustable foot cup and universal wheel

Completion in 3-5 days

• The frame is reusable

• Removable

• Can be used alone or in combination

• Can be assembled with the assembly line to form a dust-free assembly line equipment

• Anti-static curtain

• tempered glass

• Grid curtain

• Acrylic sheet

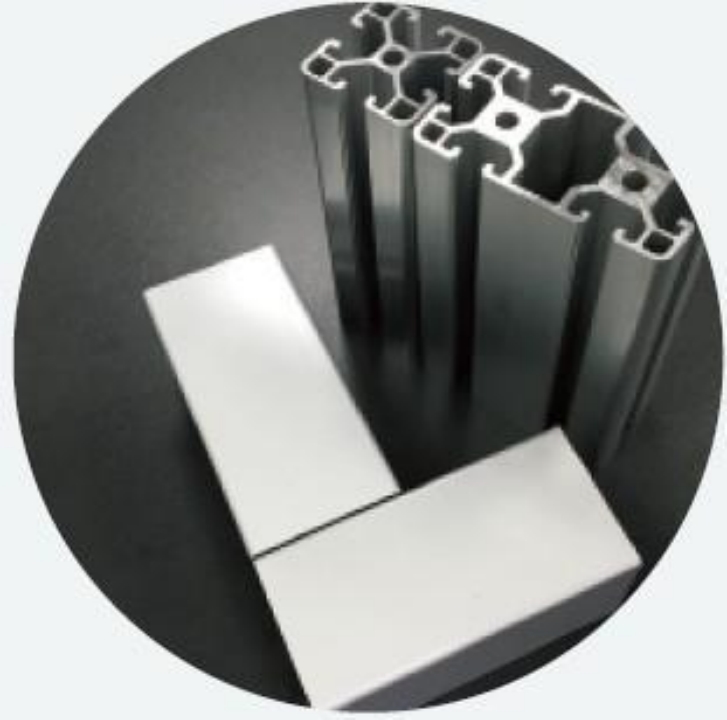

Main frame:

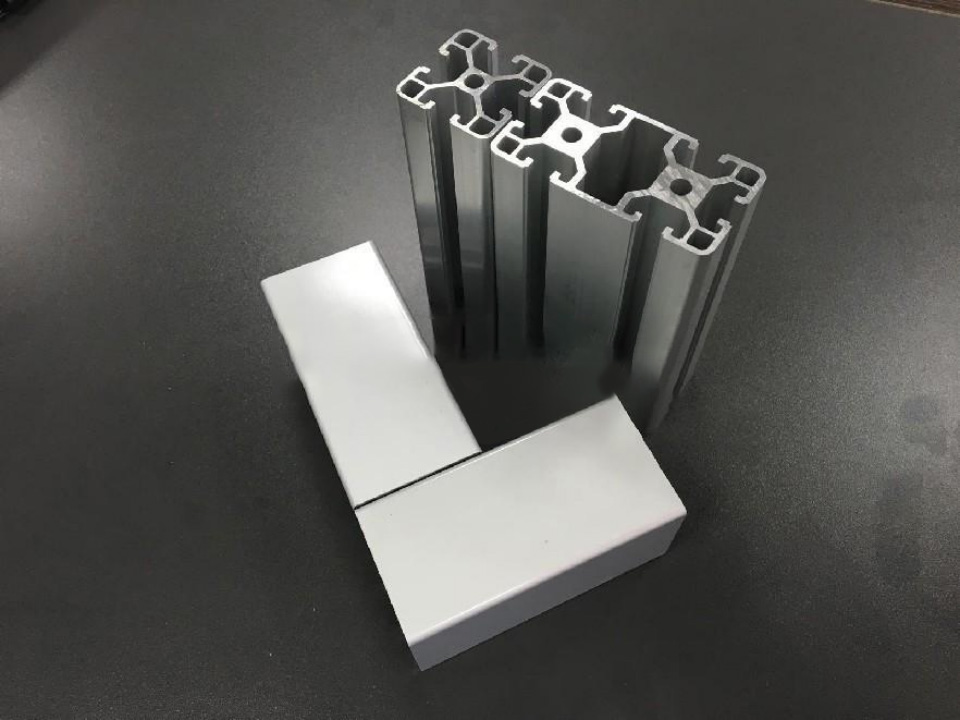

Aluminum profile (mm) 40*40/50*50/40*80

Stainless steel/painted square tube (mm) 50*50/100*100

Stable, not easy to rust, not easy to generate dust

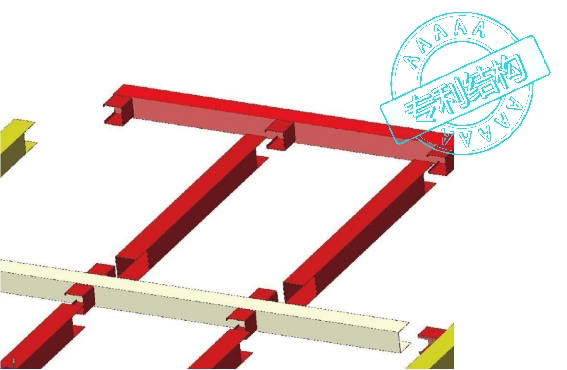

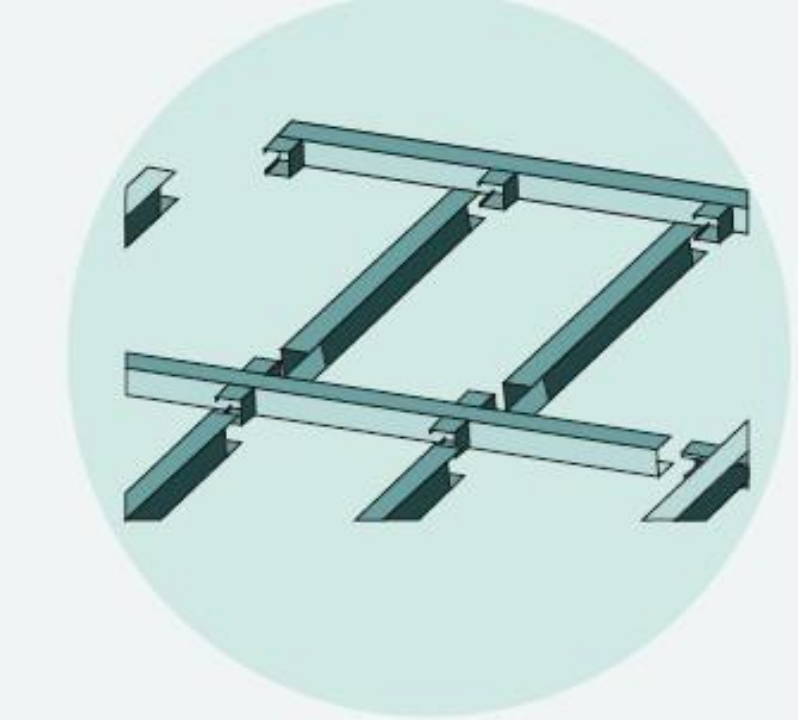

Patented structure, quick installation

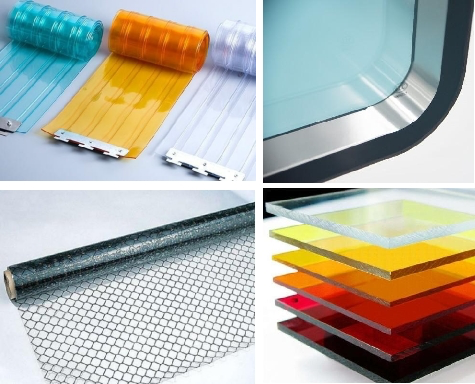

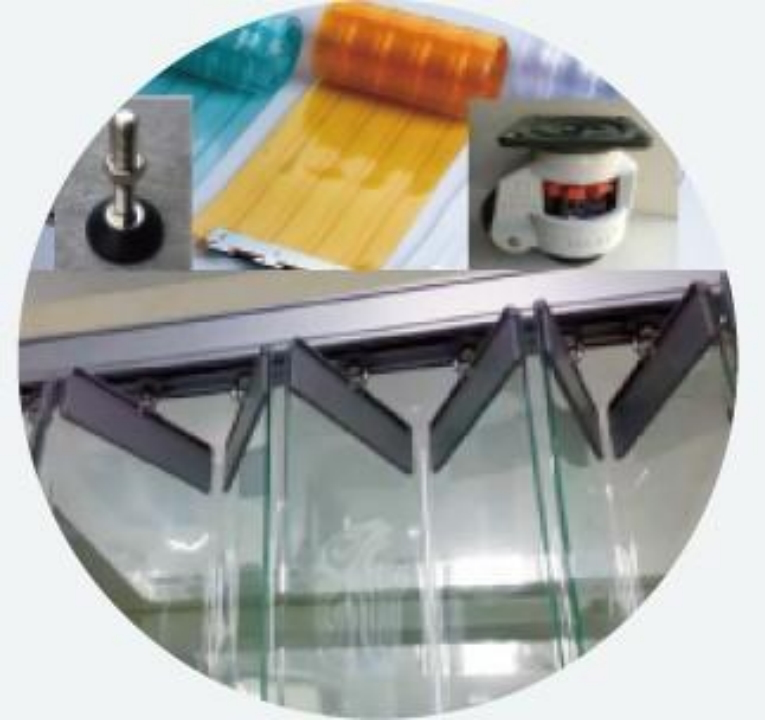

Surrounding protection:

Antistatic curtain 2mm (antistatic 106~109Ω)

Grid curtain 0.3/0.5mm

Acrylic board 5mm

Tempered glass 5mm

Clear grid, high transparency, visual transparency, not easy to age

Selected accessories:

Steel plate spraying/stainless steel hand-pull door

PVC anti-static curtain door

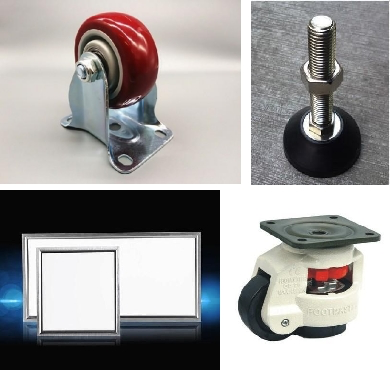

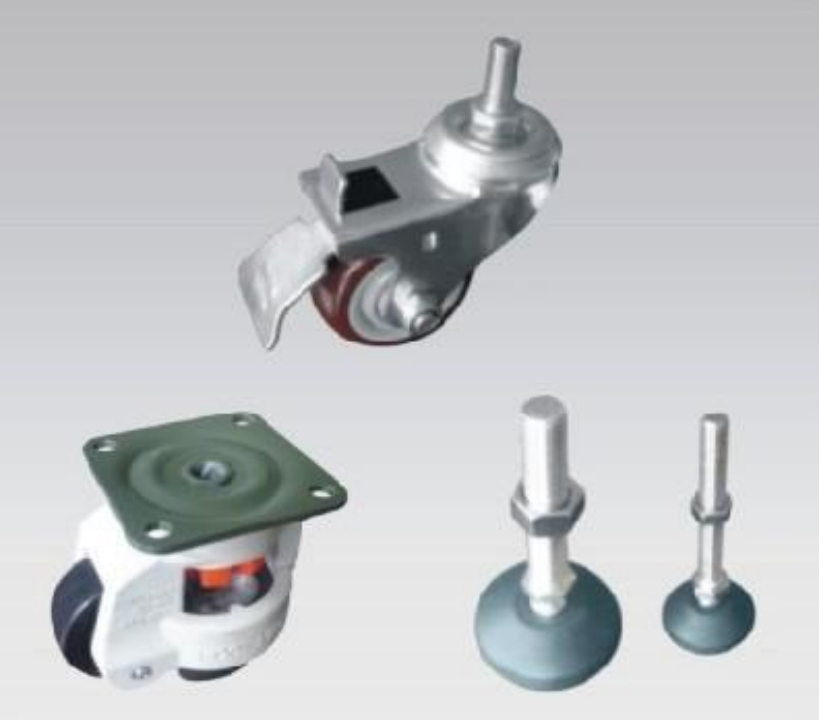

Fixed foot cup/Foma wheel/universal wheel

LED flat purification lamp

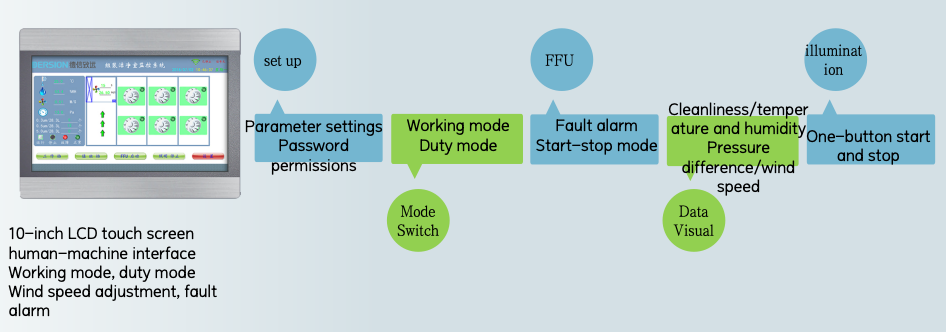

Control system:

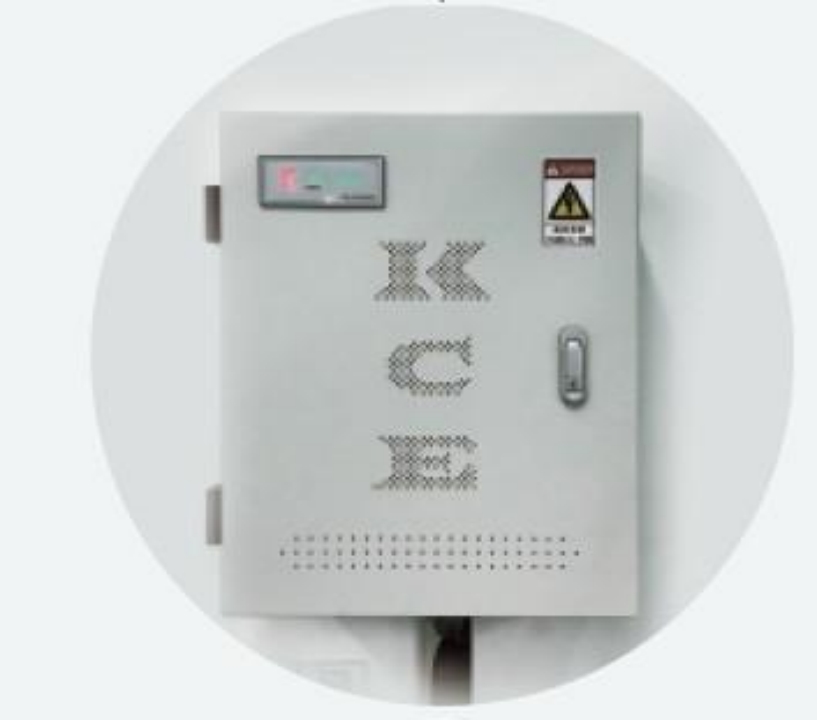

Use traditional electric control box

Control the switch of FFU and lighting

Equipped with leakage protection

Purification system:

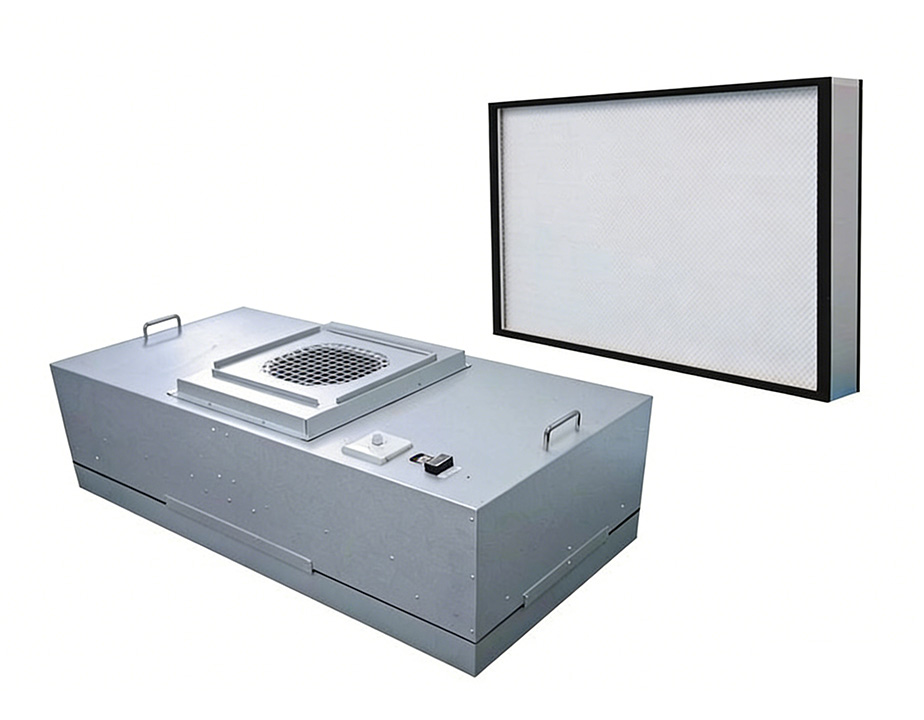

FFU fan filter unit

Zinc-aluminum alloy box or stainless steel box

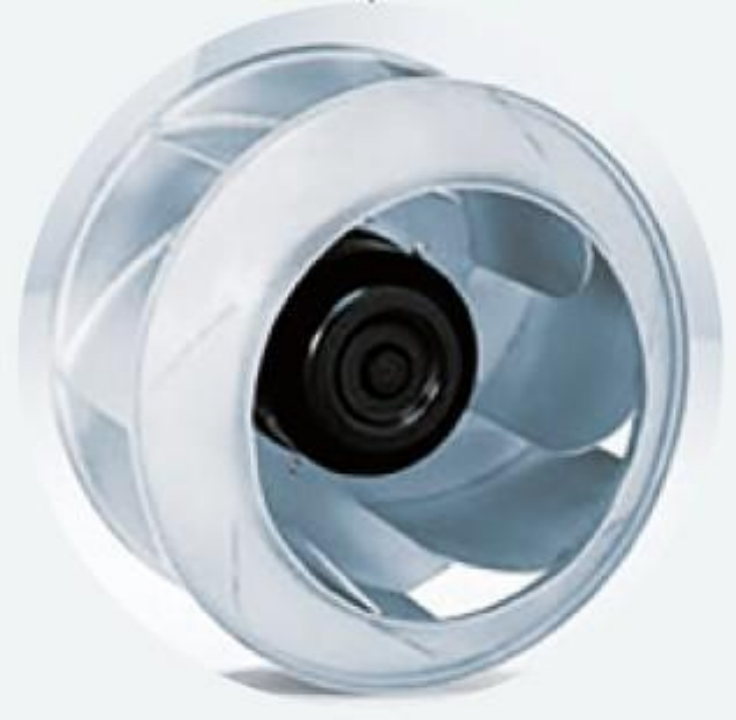

Special maintenance-free large air volume centrifugal fan

Air volume (m3/h): 520/180/1800/2210

Low noise, built-in guide air duct

Optional primary filter with filtration efficiency G4

Aluminum frame without partition high efficiency filter

Filtration efficiency 99.99% @0.3um (H14）
