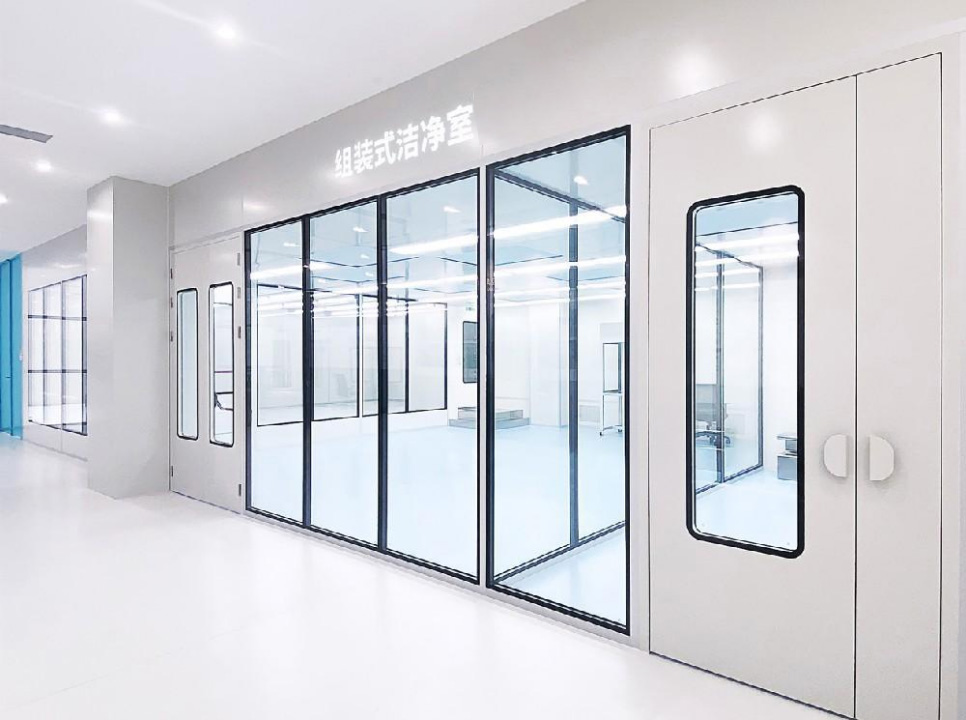

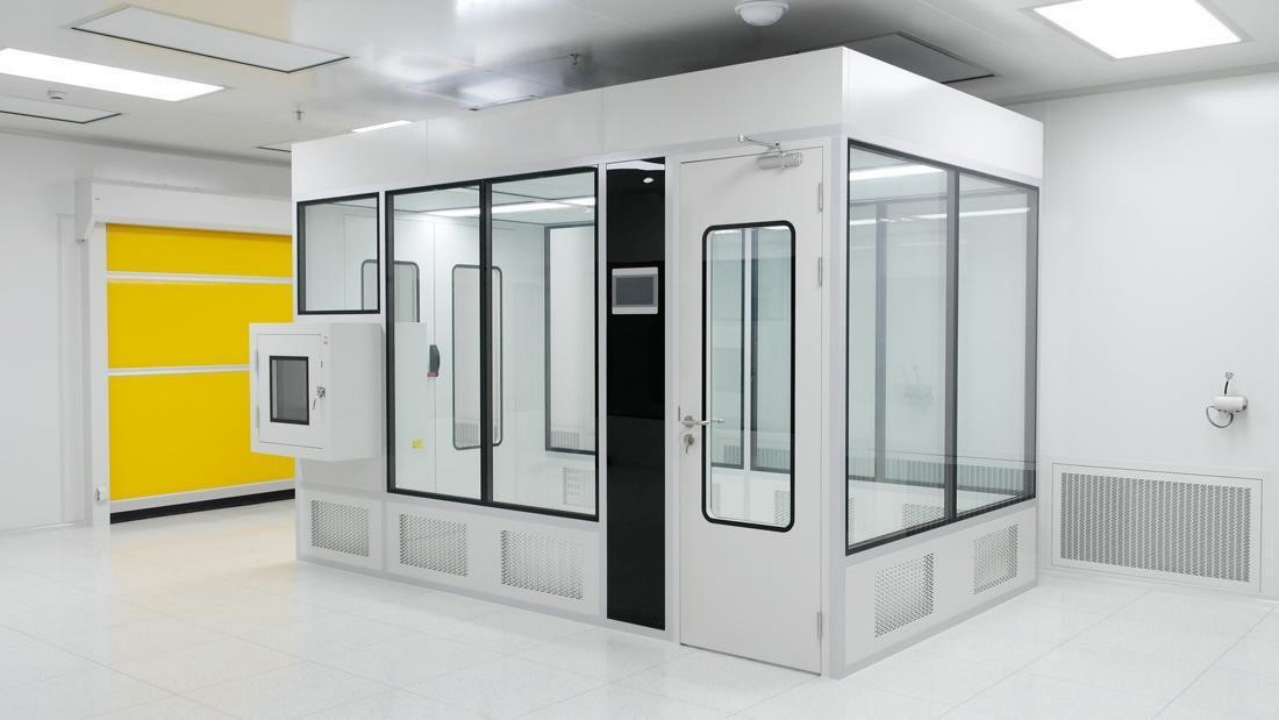

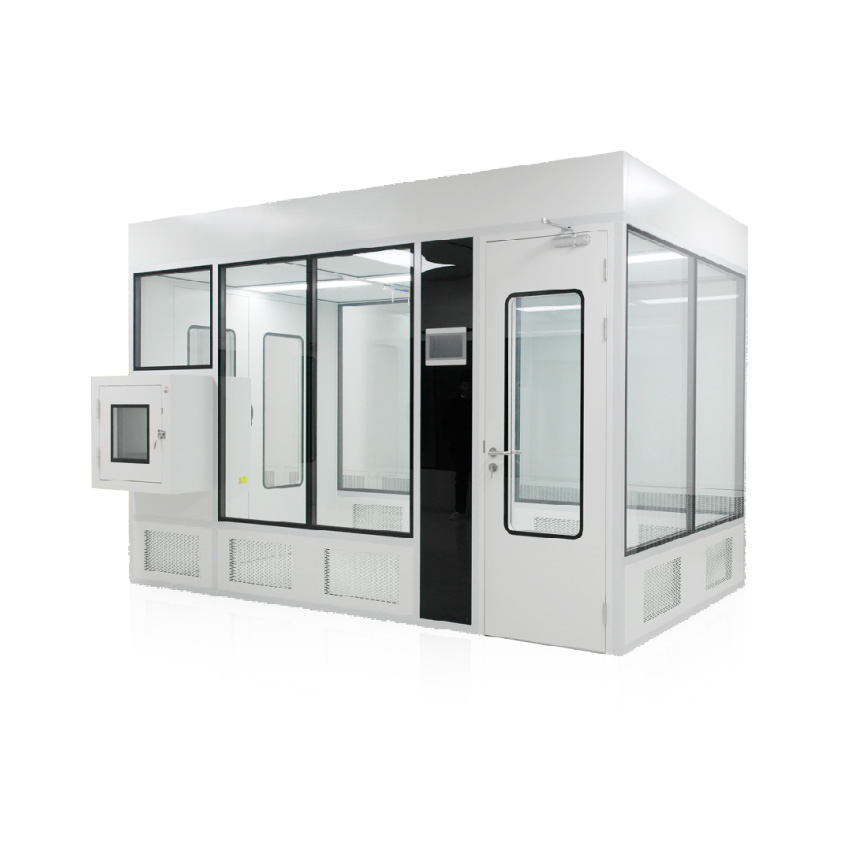

HVACTECH custom modular cleanroom kits are prefabricated, plug-and-play cleanroom solutions that support fast on-site assembly and disassembly. Unlike traditional fixed cleanrooms, our systems feature up to 98% material reusability, allowing enterprises to adjust, expand, or relocate cleanrooms as production needs change. Since our breakthrough application in the 2013 Apple iWatch pilot production line, we have continuously optimized structure, performance, and intelligence. Today, our lightweight modular cleanroom systems are widely recognized as a reliable alternative to traditional cleanrooms, balancing high cleanliness, flexibility, and long-term cost efficiency.

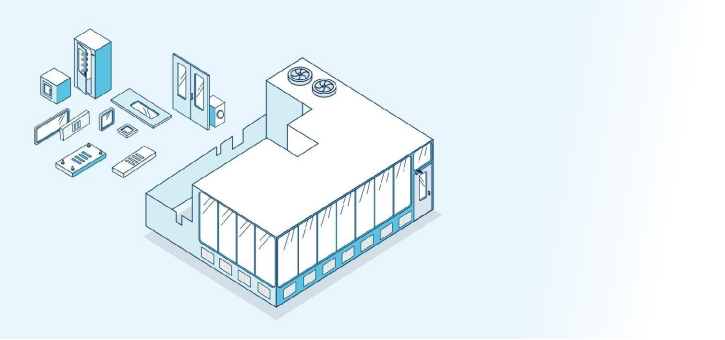

Our modular clean room kits adopt an aluminum alloy frame and prefabricated sandwich panels, enabling bolted assembly without complex on-site construction. With a 98% reuse rate, customers can greatly reduce secondary investment and waste during production line upgrades or relocations. Short installation cycles greatly improve project efficiency and accelerate production start-up time, which is critical for B-end enterprises pursuing rapid market response.

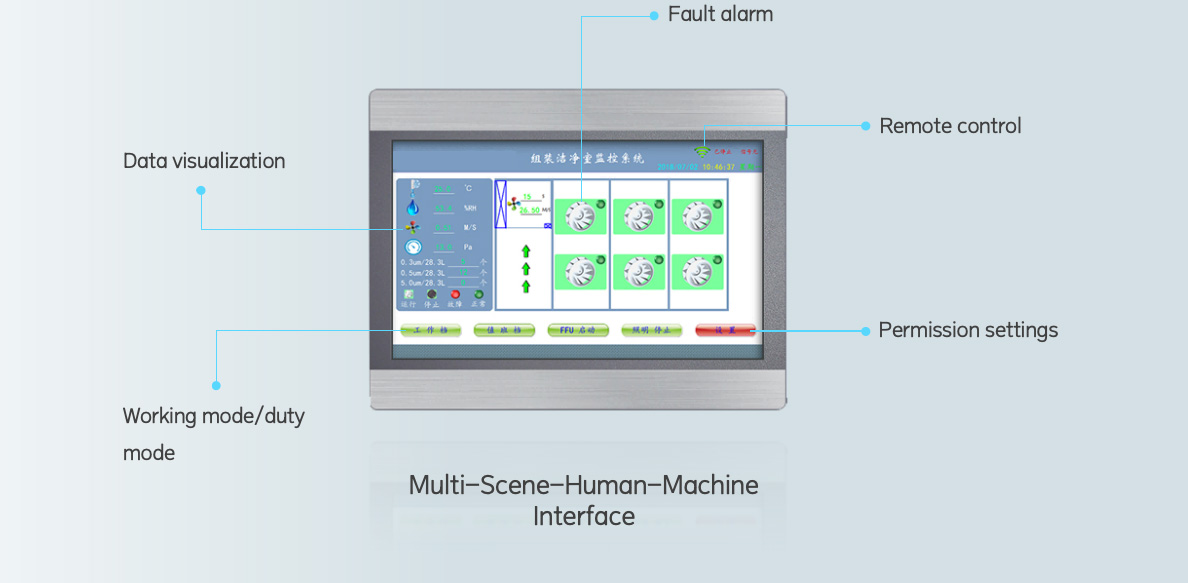

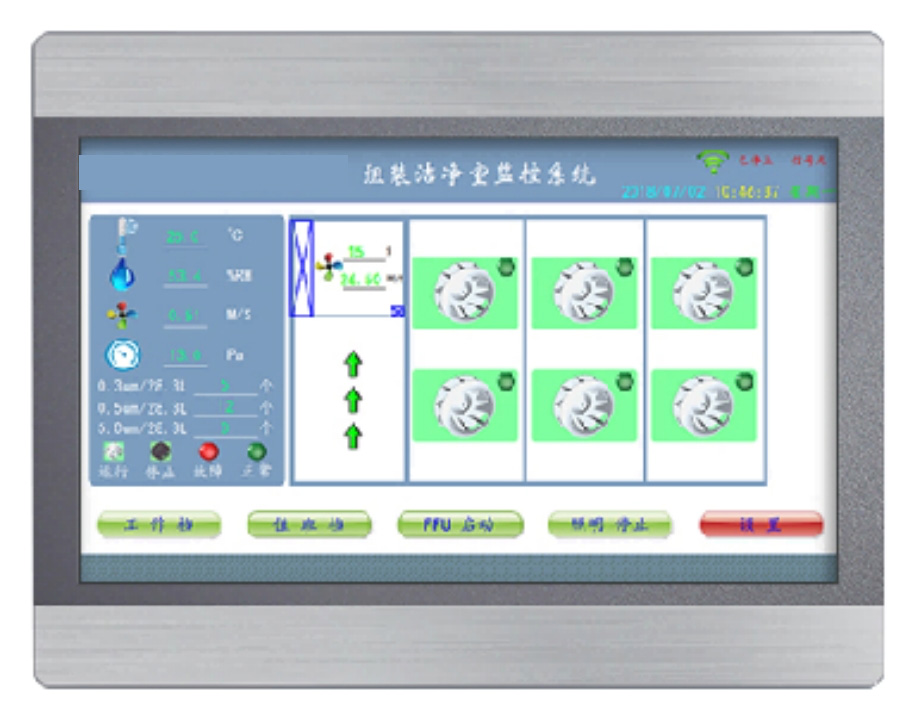

Equipped with an intelligent control system, our intelligent modular cleanroom systems support real-time monitoring of FFU status, air velocity, temperature, humidity, and cleanliness levels. Fault alarms, remote control, and data visualization help managers operate the cleanroom efficiently. This intelligent design ensures stable purification performance and reduces labor and maintenance costs for long-term operation.
Energy efficiency is a core highlight of our lightweight modular cleanroom kits. High-efficiency DC fans, energy-saving LED lights, and optimized airflow design reduce overall energy consumption by up to 30%. Lower operating costs bring significant economic benefits to enterprises with 24-hour continuous production, making our solutions highly competitive in the global cleanroom market.
Every HVACTECH customizable modular clean room kit can be tailored to different space sizes, cleanliness levels, temperature and humidity requirements, and industry regulations. We support customized layout, appearance, function, and configuration to meet strict application scenarios in electronics, semiconductor, pharmaceutical, medical device, and precision machining industries.
Item | Details |
Product Name | Customizable Lightweight Modular Clean Room Kits |
Cleanliness Standard | ISO 14644 Class 1 – Class 100000 |
Panel Material | Aluminum alloy + sandwich panel |
Panel Thickness | 50mm / 75mm / 100mm optional |
Air Supply Mode | FFU fan filter unit, laminar / turbulent flow |
Temperature Range | 18–26°C (customizable) |
Humidity Range | 40%–60% RH (customizable) |
Noise Level | ≤60dB(A) |
Illuminance | 200–500 Lux |
Power Supply | 220V / 380V, 50Hz |
Installation Type | Modular bolted assembly |
Reusability | Up to 98% |
Certifications | ISO 14644, GMP, CE |

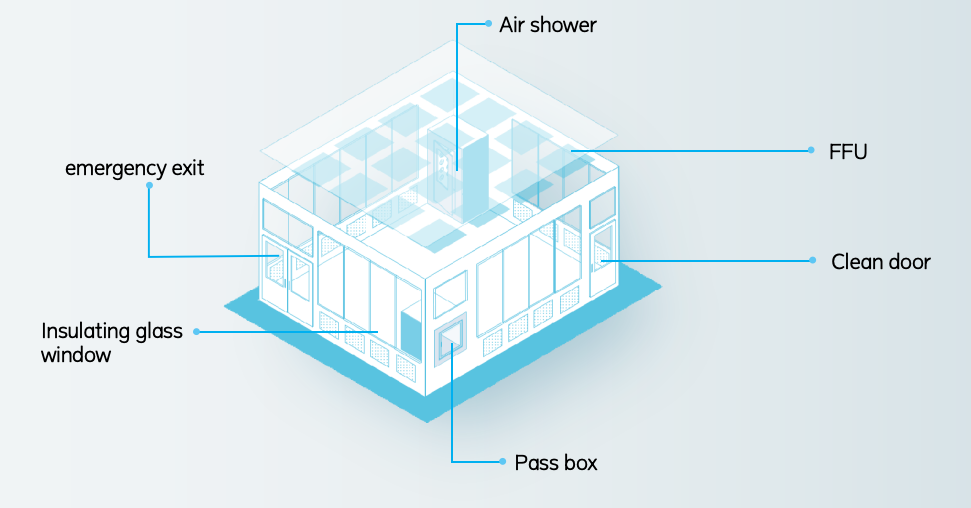

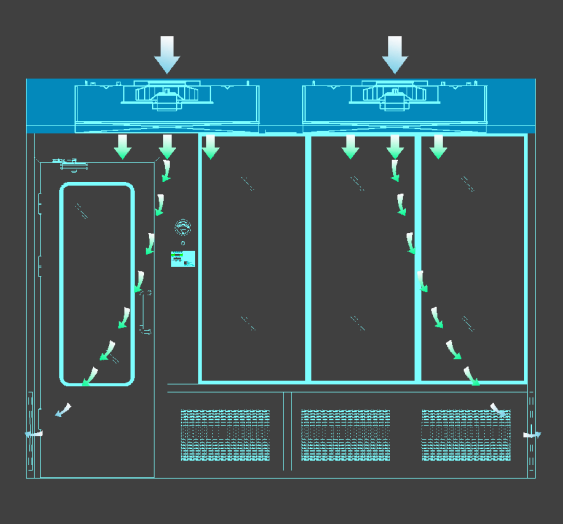

Our custom modular cleanroom kits integrate a complete set of high-quality standard components, including FFU, air shower, pass box, clean door, insulated glass window, emergency exit, and control system. The purification principle adopts top-down high-efficiency air filtration, which continuously dilutes and discharges pollutants. By adjusting air changes per hour, the system stably maintains the required cleanliness level, providing a reliable dust-free environment for production.

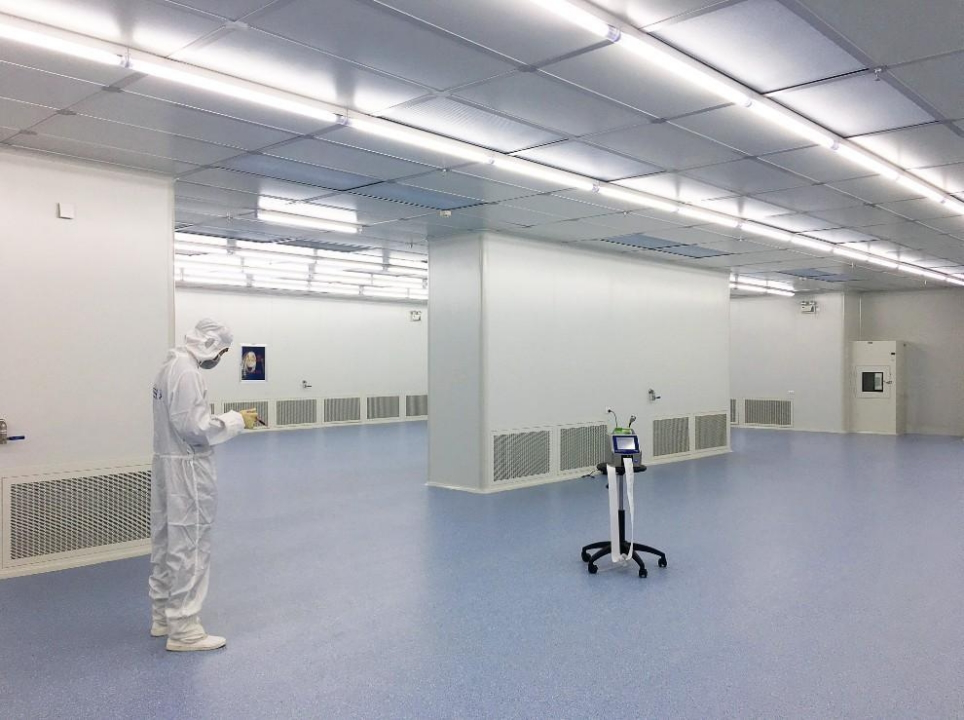

HVACTECH ISO 14644 compliant modular cleanrooms serve multiple high-end industries:
Electronics Manufacturing: Consumer electronics, circuit boards, and smart assembly lines
Semiconductor Production: Chip processing and high-precision components
Pharmaceutical & Medical: GMP-compliant drug production and medical devices
Precision Machining: Aerospace, automotive, and optical components
Our systems meet ISO 14644 Class 1 to Class 100000 and can be customized for electronics, pharmaceutical, and semiconductor applications.
Most projects can be installed within days to weeks, much faster than traditional cleanrooms, thanks to prefabricated modular cleanroom systems.
Yes, our custom modular cleanroom kits support GMP, EU GMP, and other pharmaceutical industry standards.
We offer one-stop solutions: custom design, production, on-site installation, commissioning, and after-sales support.
Yes, our structure is reusable up to 98%, ideal for factory relocation, expansion, or production line adjustment.
With 19 years of R&D and project experience, HVACTECH provides one-stop services including design, production, installation, and after-sales support. Our customizable modular clean room kits combine high stability, energy saving, intelligence, and reusability, helping global B-end customers build professional cleanroom systems with lower cost and higher efficiency.
