Definition
| FFU is the full name of Fan Filter Unit, and the Chinese professional term is Fan Filter Unit. To be precise, it is a modular terminal air supply device with self-power and filtering function. FFU is equipped with primary and high-efficiency double-stage filters. The fan sucks air from the top of FFU and filters it through primary and high-efficiency filters. The filtered clean air is uniformly delivered at a wind speed of 0.45M/S±20% on the entire air outlet surface; It provides high-quality clean air for clean rooms and microenvironments of different levels; in the construction and renovation of clean rooms, the cleanliness level of the clean room can be quickly changed by adjusting the number of FFUs. |

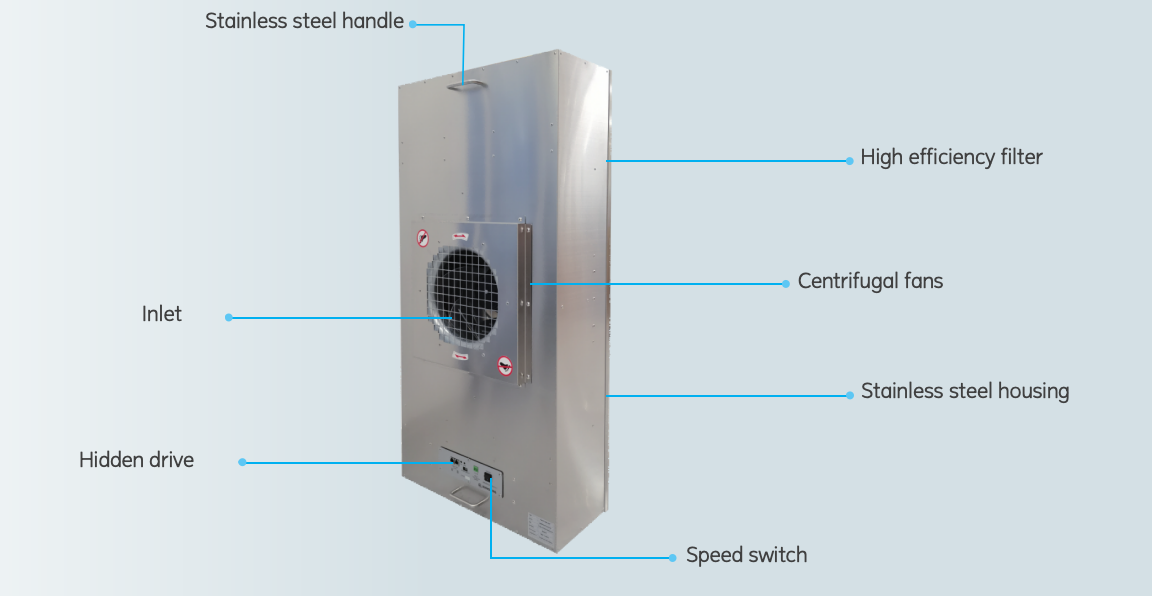

Composition Structure

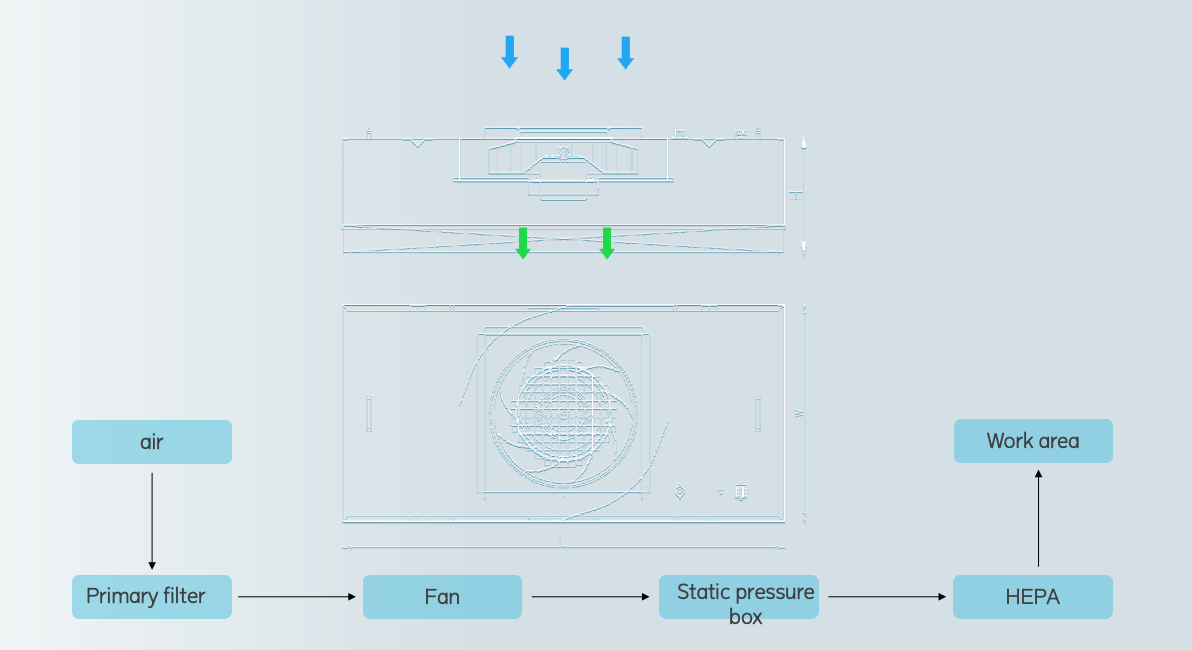

Working Principle
Features
 |

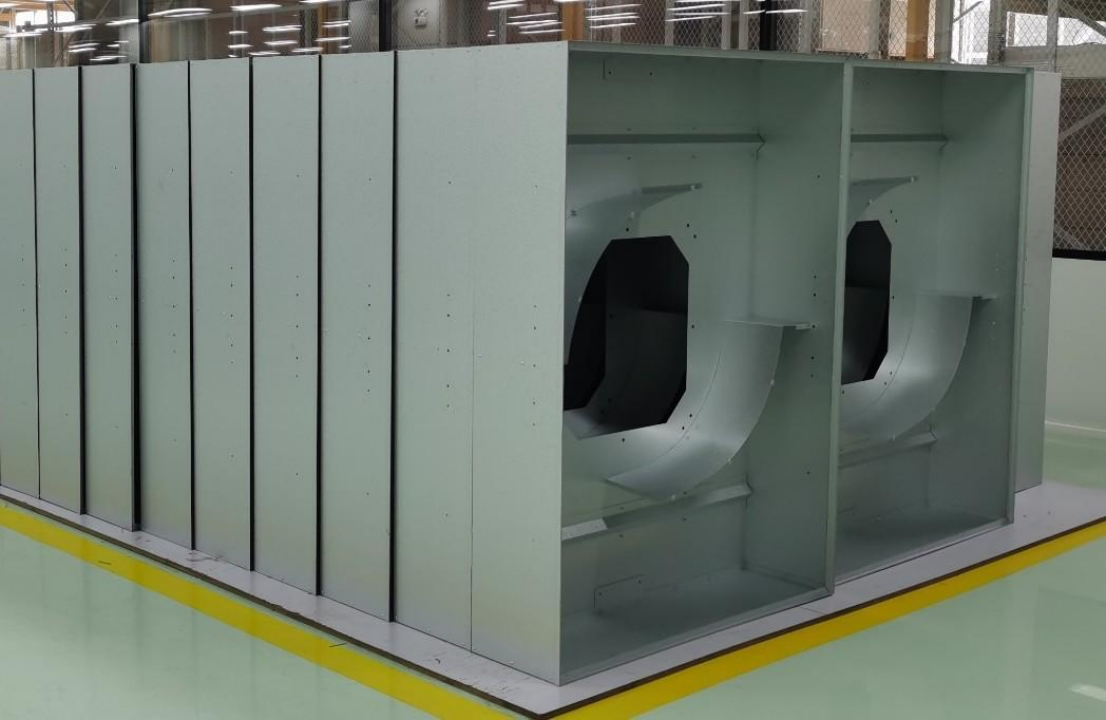

| Built-in air duct guide system reduces noise and pressure loss and improves fan efficiency |
Features
 |  |
Primary filter, using synthetic fiber non-woven fabric as a pre-treatment for high-efficiency filters to remove coarse dust | High efficiency filter, filtration efficiency 99.99%@0.3μm, supplies highly clean air; |
Flexible

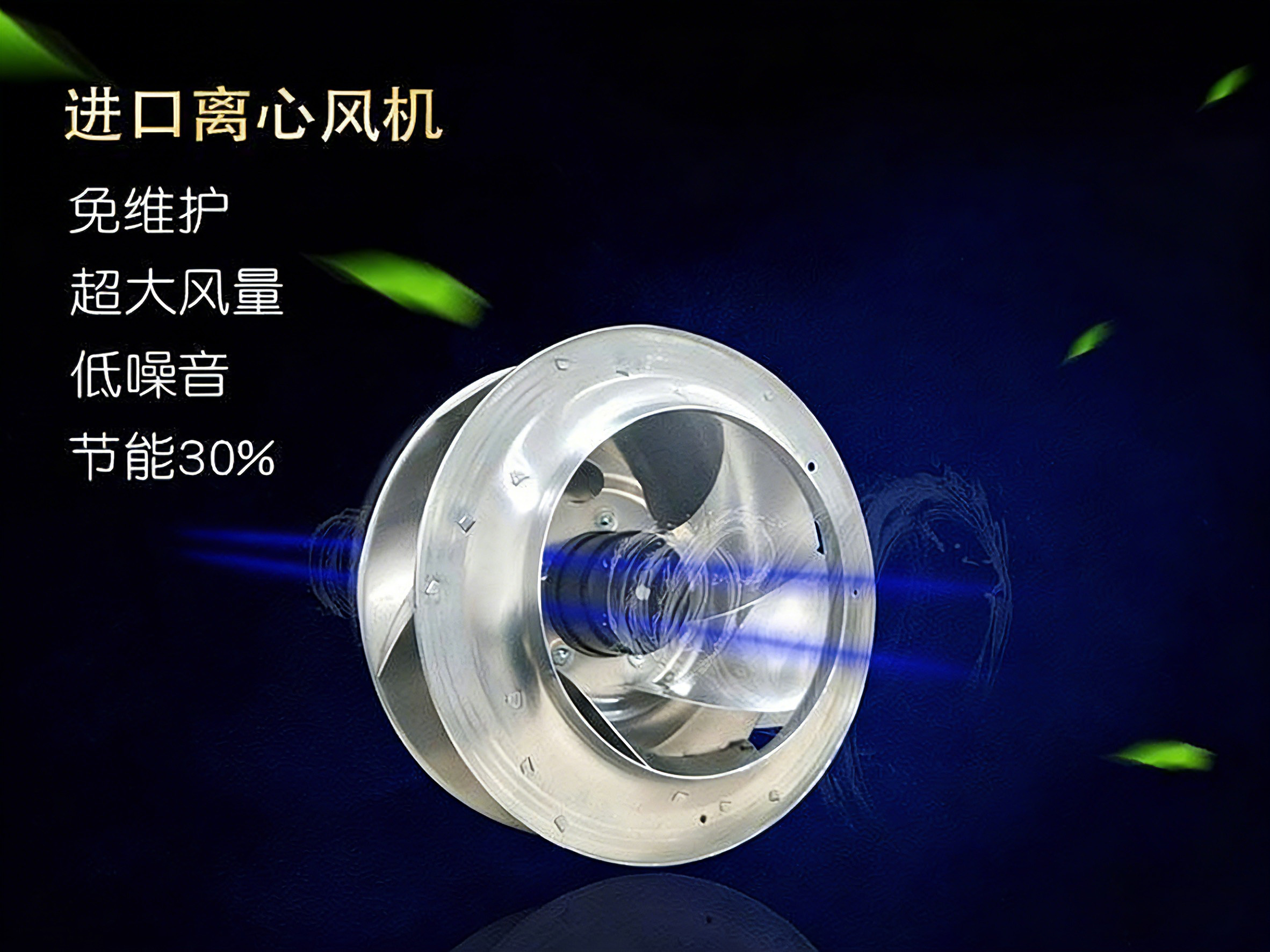

 | Imported maintenance-free centrifugal fan can increase air volume and high static pressure conditions, with a working life of more than 50,000 hours |
Featured
 |  |  |
| Diversified materials and forms | ||
Features
 |
| The wind speed can be controlled in multiple ways, including one-click control and remote online control. |

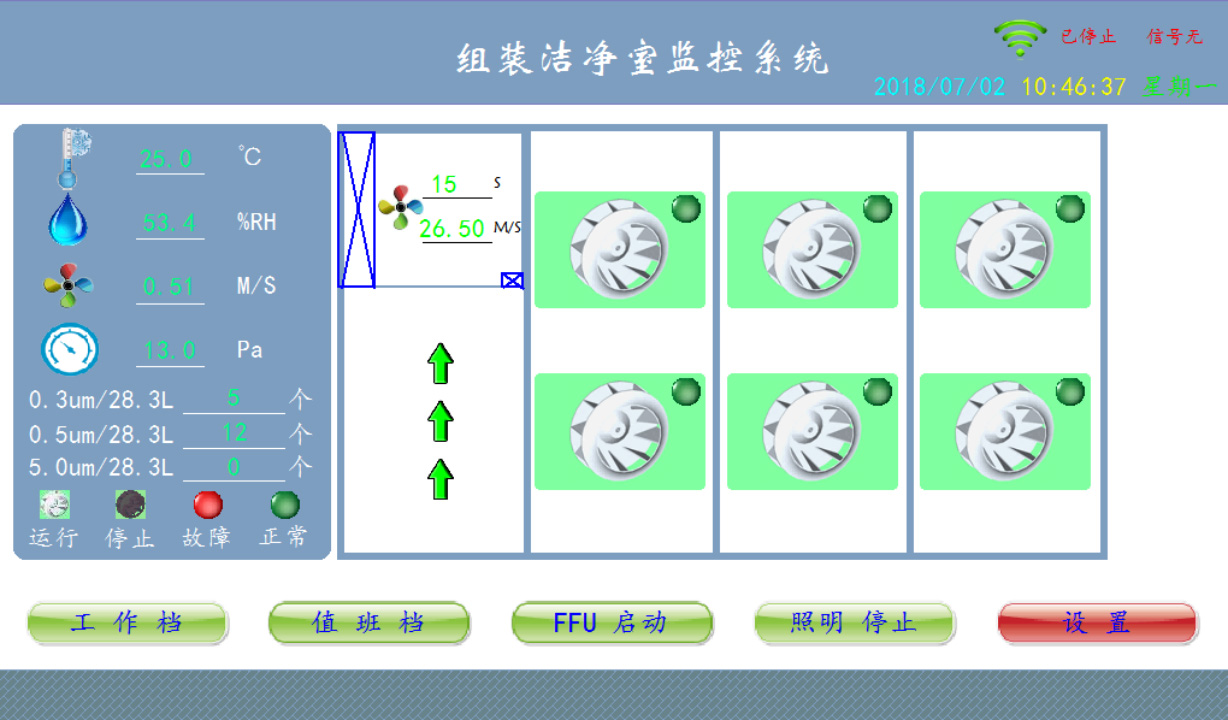

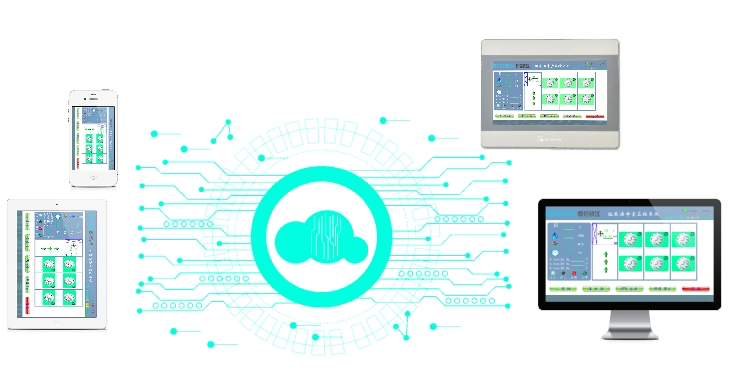

Group control system
The FFU group control system can effectively solve the problems of large number and difficult maintenance during the use of the factory through modular connection;
Function:
1. Through dedicated protocols, the LCD touch screen is directly controlled, making use, operation and maintenance more concise and clear;
2. The working interface can correspond to the on-site layout one by one, and online real-time monitoring can be used to promptly remind filter replacement and troubleshooting;
3. Remote monitoring can be carried out via mobile phone or computer, which facilitates intelligent and unified management of the factory.
Technical Parameters
Specifications | 2‘x2’ | 2’x4’ | 3’x4’ | 4’x4’ |
Dimensions | 575x575x325 | 1175x575x325 | 1175x875x325 | 1175x1175x325 |
Air volume（m³/h） | 520 | 1080 | 1800 | 2210 |
wind velocity（m/s） | 0.45m/s±20% | |||
Cleanliness | Class 1~100（US Federal Standard 209E） | |||
HEPA | H14~U16（99.99%@0.3μm~99.9999%0.12μm） | |||
HEPA size | 570x570x70 | 1170x570x70 | 1170x870x70 | 1170x1170x70 |
noise（dB） | The test point is 1m below, and the wind speed is 0.35m/s | |||
Shell material | Stainless steel/zinc-aluminum alloy/painted steel plate | |||
Power（230VAC 50Hz） | 75W | 120W | 230W | 230W |
weight | 18kg | 35kg | 38kg | 41kg |
Product Configuration

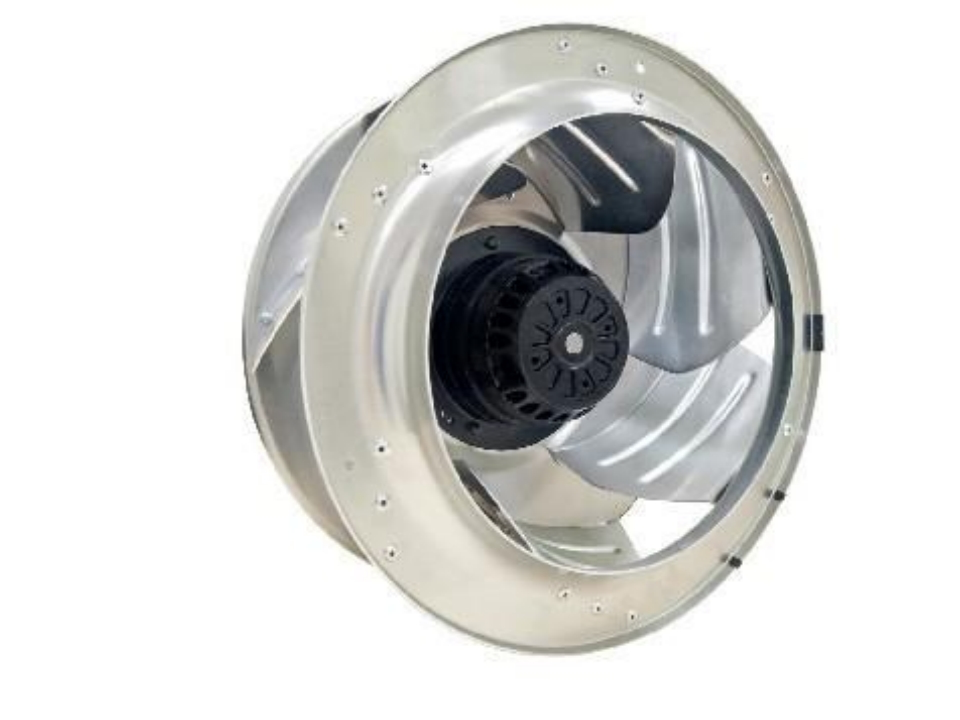

 | External ion fan It has the characteristics of long life, low noise, maintenance-free, low vibration, large air volume and infinitely adjustable speed, and its working time can reach more than 50,000 hours. |

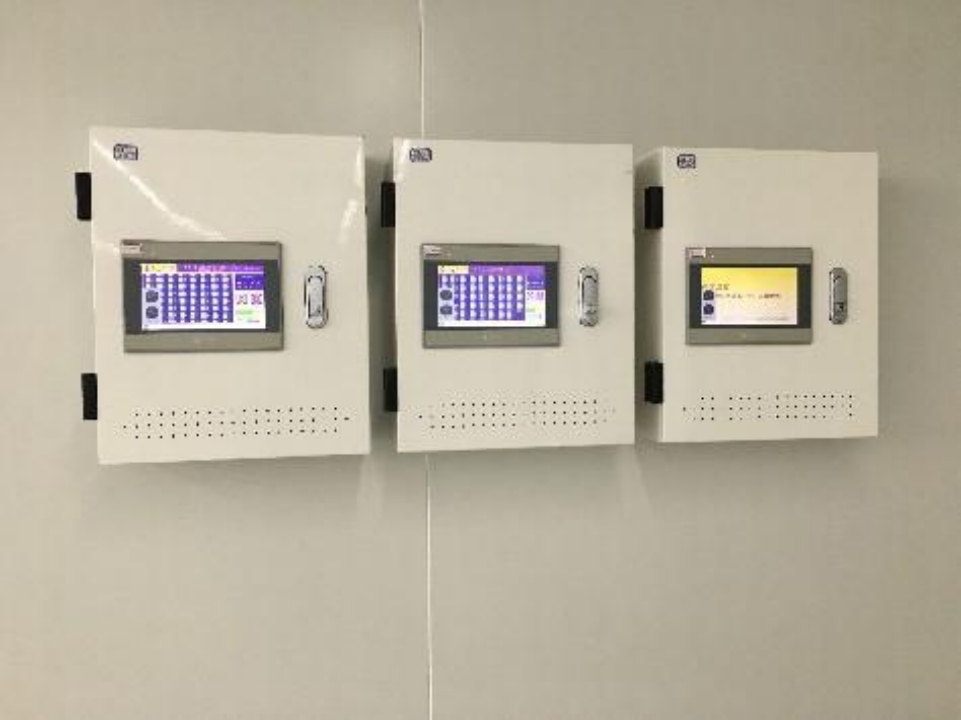

 | Group control system Specialized communication protocol, direct control by LCD touch screen, simple and clear operation; real-time online monitoring, troubleshooting, and timely reminder to replace filters. |
Technical Parameters | |

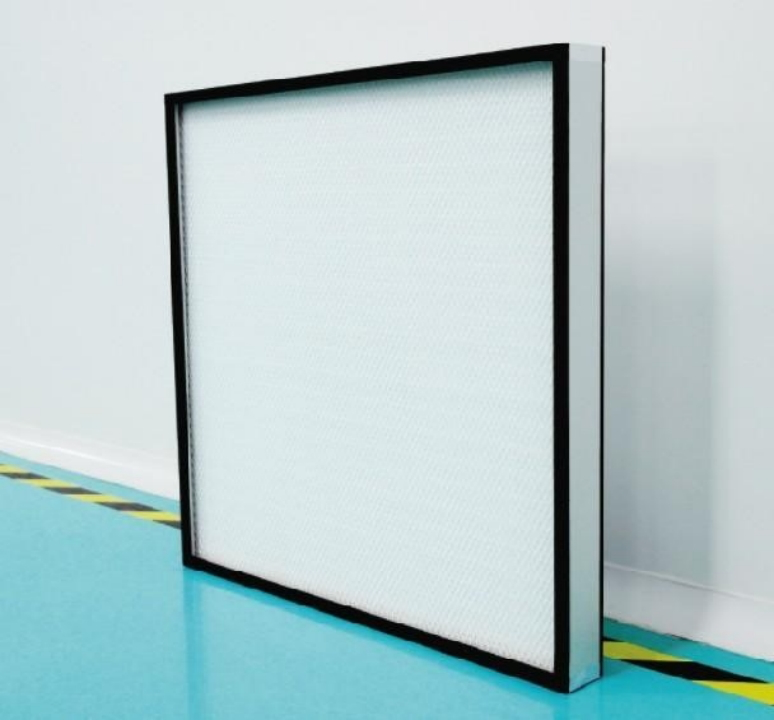

 | High efficiency filter High efficiency filter without partition, special aluminum alloy outer frame, stable efficiency and uniform wind speed, filtration efficiency is 99.99% (0.3um), long life and strong adsorption capacity; |

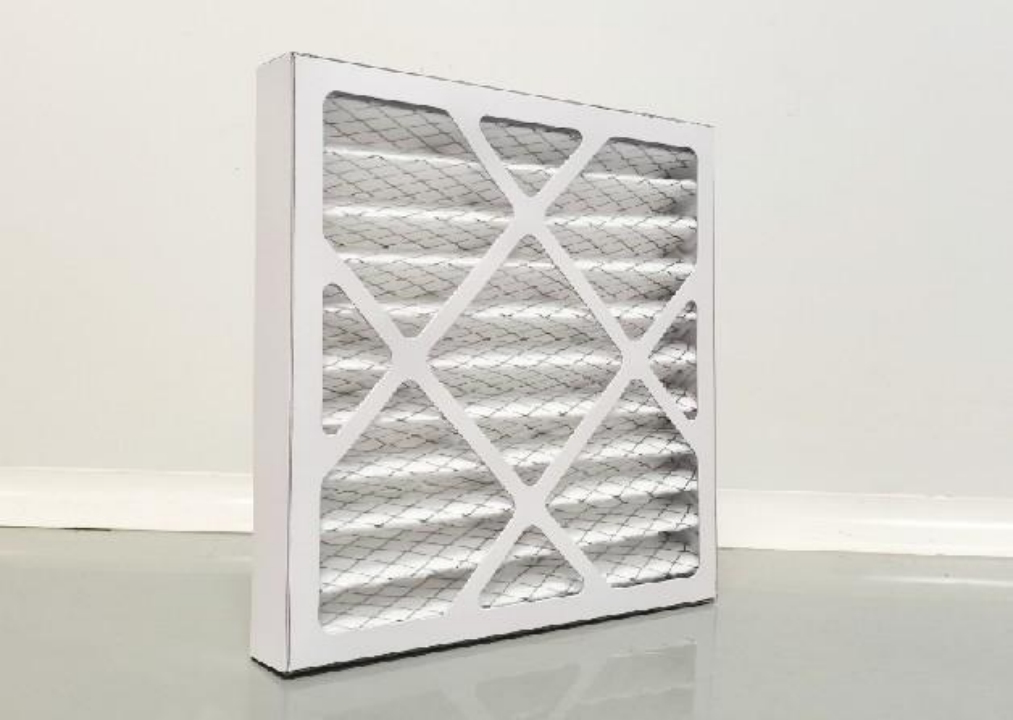

 | Primary filter Foldable paper frame primary filter, easy to replace, filters dust particles above 5μm, G4 coarse air filter, with stainless steel punched return air plate |
Technical Parameters | |
 | Galvalume Good corrosion resistance and heat resistance |

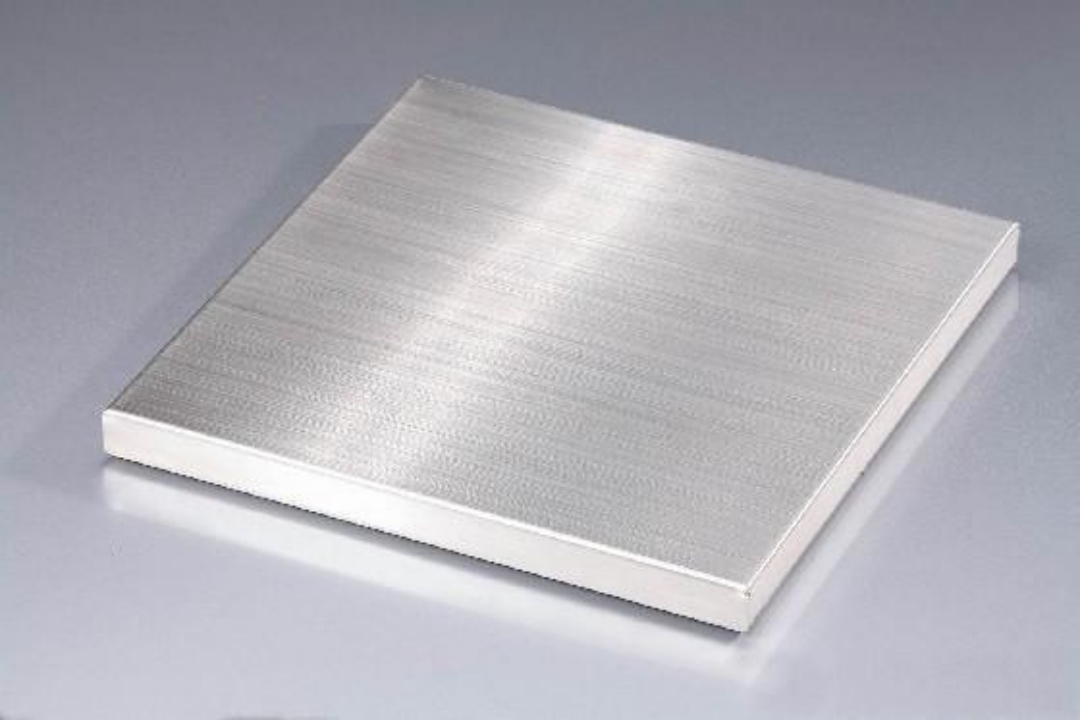

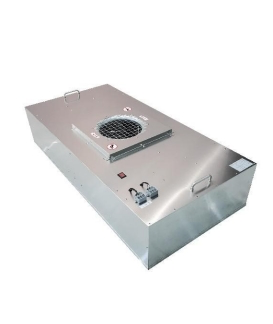

 | SUS304 stainless steel Acid and corrosion resistant, not prone to scale accumulation |
