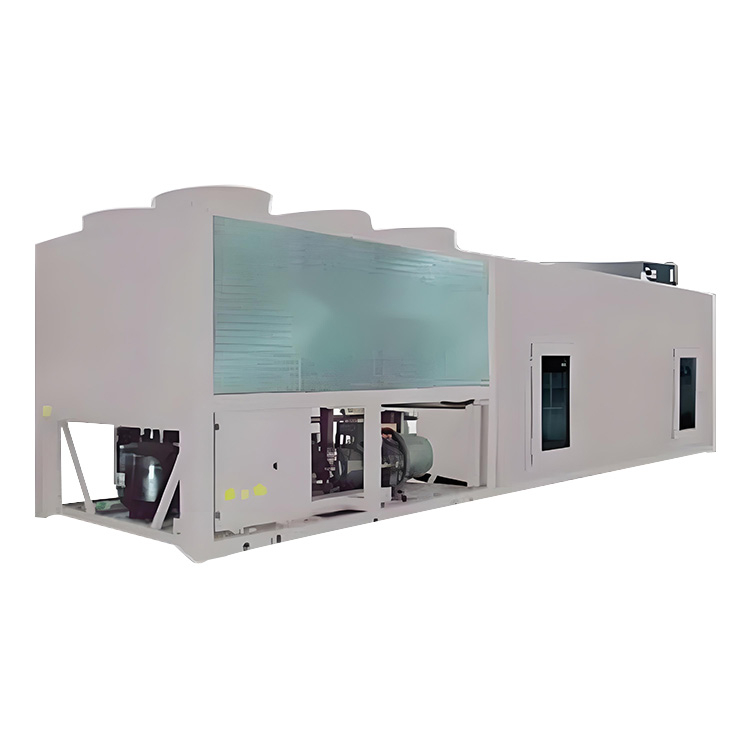

Fresh-Air Rooftop Split Air-Conditioner

The Rooftop Air-conditioning Unit (Split) is a high-performance climate control solution available in three core variants: Heat Pump Type, Single Cold Type, and All Fresh Air Type.

Availability:

Quantity:



Inquire Add to Basket

Rooftop Air-conditioning Unit (Split) Rooftop Split Air Conditioner Air-Conditioner

Product Description

Product Overview

Designed for large-scale cooling and heating needs, this unit integrates advanced compression-condensation and air-handling technologies to deliver reliable performance in commercial, industrial, and public environments. With refrigerating capacities ranging from 109 kW to 421 kW and heating capacities from 110.4 kW to 427.5 kW, it caters to diverse space requirements while ensuring energy efficiency and precise temperature regulation. Whether for office buildings, factories, or public facilities, this split rooftop unit combines space-saving design with powerful functionality.

Key Features & Benefits

Advanced Compressor Technology

Equipped with Hermetic Scroll Compressor (for mid-range models) or Semi-hermetic Screw Compressor (for high-capacity models), ensuring stable operation and low energy consumption.

Multiple compressor configurations (3 to 8 sets for scroll type; 1 set for screw type) adapt to varying load demands, optimizing efficiency.

Precision Temperature Control

Boasts a temperature control sensitivity of ±1℃, maintaining consistent indoor comfort even in fluctuating environments.

Flexible heating options (electric, steam, hot water) with heating capacities up to 280 kW, suitable for cold climates.

High-Efficiency Heat Exchange

Adopts Efficient Red Copper Tube Cover Aluminum Fin evaporators and condensers, maximizing heat transfer efficiency and reducing operational costs.

Optional refrigerants (R22/R410A) meet environmental standards and regional regulations, enhancing versatility.

Low Noise & Durable Design

Unit noise levels as low as 72 dB(A), minimizing disruption to indoor and surrounding environments.

Robust construction with heavy-duty materials (compression-condensation section weight up to 3000 kg) ensures long service life in harsh rooftop conditions.

Flexible Air Volume & Static Pressure

Air volume ranges from 8800 m³/h to 64500 m³/h, accommodating large open spaces and complex airflow requirements.

Adjustable external static pressure (400/600/800 Pa) supports customized ductwork designs.

Technical Specifications

Type Performance			WFWR(D)110			WFWR(D)150			WFWR(D)190			WFWR(D)220			WFWR(D)260			WFWR(D)300
WFWL(D)110			WFWL(D)150			WFWL(D)190			WFWL(D)220			WFWL(D)260			WFWL(D)300
Air-conditioning unit performance	Refrigerating capacity	kW	109			149.4			189.5			219			258			298
	Heating capacity	kW	110.4			151			191.4			222			261			302
	Air volume	M3/h	14500	16000	17500	22000	24000	26000	27000	30000	33000	30000	33000	36000	34500	38000	41500	41000	45000	49000
	External static pressure	Pa	400,600,800
	Unit power	kW	Refer to the unit electrical parameters
	Temperature control and sensitivity	℃	±1
	Unit noise	dB(A)	72			72			72			73			74			74
	Operating power supply		3/N/PE AC 380/220V 50Hz
Compression-condensation section	Compressor	Type	Hermetic scroll compressor
		Set number	3			4			5			6			7			8
	Refrigerant	Working medium used	R22/R410A(optional)
		Control form	External equalizer thermostatic expansion valve
		Charge Qty (Kg）	3×10			4×10			5×10			6×10			7×10			8×10
	Condenser type		Efficient red copper tube cover aluminum fin
	Condensate fan	Type	High-efficient axial flow fan
		Qty	2			2			4			4			4			4
	Refrigerant pipe connecting specification	Air pipe	3-φ28			4-φ28			5-φ28			6-φ28			7-φ28			8-φ28
		Liquid pipe	3-Φ16			4-φ16			5-Φ16			6-Φ16			7-φ16			8-φ16
	Weight	kg	700			800			1230			1400			1500			1600
Air-handling section	Blower	Type	Centrifugal type
	●Electric heater	Heating capacity (kW)	24			27			48			60			72			80
	●Steam heater	Heating capacity (KW)	60			80			100			140			160			180
	●Hot water heater	Heating capacity (kW)	60			80			100			140			160			180
	Filter unit		Plate-type primary efficiency G3
	Evaporator type		Efficient red copper tube cover aluminum fin
	Weight	kg	1150			1400			1650			1750			2050			2400

Type Performance			WFLR(D)260			WFLR(D)310			WFLR(D)370			WFLR(D)420
WFLL(D)260			WFLL(D)310			WFLL(D)370			WFLL(D)420
Air-conditioning unit performance	Refrigerating capacity	kW	260			309.5			369.5			421
	Heating capacity	kW	265			326.5			378.5			427.5
	Air volume	m³/h	34500	38000	41500	41000	45000	49000	45000	49000	54000	53000	58000	64500
	External static pressure	Pa	400,600,800
	Unit power	kW	Refer to the unit electrical parameters
	Temperature control and sensitivity	℃	±1
	Unit noise	dB(A)	73			74			75			75
	Operating power supply		3/N/PE AC 380/220V 50Hz
Compression-condensation section	Compressor	Type	Semi-hermetic screw compressor
		Set number	1			1			1			1
	Refrigerant	Working medium used	R22
		Control form	External equalizer thermostatic expansion valve
		Charge Qty (Kg）	110			140			150			170
	Condenser type		Efficient red copper tube cover aluminum fin
	Condensate fan	Type	High-efficient axial flow fan
		Qty	6			6			8			8
	Refrigerant pipe connecting specification	Air pipe	2-φ54			2-φ 54			2-φ67			2-φ67
		Liquid pipe	2-φ28			2-φ28			2-φ 35			2-φ 35
	Weight	kg	2280			2400			2850			3000
Air-handling section	Blower	Type	Centrifugal type
	●Electric heater	Heating capacity (kw)	72			80			90			108
	●Steam heater	Heating capacity (kW)	160			180			200			280
	●Hot water heater	Heating capacity (kW)	160			180			200			280
	Filter unit		Plate-type primary efficiency G3
	Evaporator type		Efficient red copper tube cover aluminum fin
	Weight	kg	2050			2400			2750			3300

Type Performance			WFWXR(D)110		WFWXR(D)150			WFWXR(D)190			WFWXR(D)220			WFWXR(D)260			WFWXR(D)300
WFWXL(D)110		WFWXL(D)150			WFWXL(D)190			WFWXL(D)220			WFWXL(D)260			WFWXL(D)300
Air-conditioning unit performance	Refrigerating capacity	kW	109		149.4			189.5			219			258			298
	Heating capacity	kW	110.4		151			191.4			222			261			302
	Air volume	M3/h	8800 9800	10500	11000	12000	13000	14500	16000	17500	17000	18500	20000	20000	22000	24000	2300025000	27500
	External static pressure	Pa	400,600,800
	Unit power	kW	Refer to the unit electrical parameters
	Temperature control and sensitivity	℃	±1
	Unit noise	dB(A)	72		72			72			73			74			74
	Operating power supply		3/N/PE AC 380/220V 50Hz
Compression-condensation section	Compressor	Type	Hermetic scroll compressor
		Set number	3		4			5			6			7			8
	Refrigerant	Working medium used	R22/R410A(optional)
		Control form	External equalizer thermostatic expansion valve
		Charge Qity (Kg)	3×9		4×9			5×9			6×9			7×9			8×9
	Condenser type		Efficient red copper tube cover aluminum fin
	Condensate fan	Type	High-efficient axial flow fan
		Qty	2		2			4			4			4			4
	Refrigerant pipe connecting specification	Air pipe	3-φ28		4-φ28			5-φ28			6-φ28			7-φ28			8-φ28
		Liquid pipe	3-φ 16		4-φ 16			5-φ 16			6-φ 16			7-φ 16			8-φ 16
	Weight	kg	700		800			1230			1400			1500			1600
Air-handling section	Blower	Type
	●Electric heater	Heating capacity (kW)	24		27			48			60			72			80
	●Steam heater	Heating capacity (kW)	60		80			100			140			160			180
	●Hot water heater	Heating capacity (kW)	60		80			100			140			160			180
	Filter unit		Plate-type primary efficiency G3
	Evaporator type		Efficient red copper tube cover aluminum fin
	Weight	kg	750		850			1050			1250			1450			1600

Type Performance			WFLXR(D)260			WFLXR(D)310			WFLXR(D)370			WFLXR(D)420
WFLXL(D)260			WFLXL(D)310			WFLXL(D)370			WFLXL(D)420
Air-conditioning unit performance	Refrigerating capacity	kW	260			309.5			369.5			421
	Heating capacity	kW	265			326.5			378.5			427.5
	Air volume	m/h	20000	22000	24000	23000	25000	27500	26000	28500	31000	31000	34000	37000
	External static pressure	Pa	400,600,800
	Unit power	kW	Refer to the unit electrical parameters
	Temperature control and sensitivity	℃	±1
	Unit noise	dB(A)	74			74			75			75
	Operating power supply		3/N/PE AC 380/220V 50Hz
Compression-condensation section	Compressor	Type	Semi-hermetic screw compressor
		Set number	1			1			1			1
	Refrigerant	Working medium used	R22
		Control form	External equalizer thermostatic expansion valve
		Charge Qty (Kg)	110			140			150			170
	Condenser type
	Condensate fan	Type	High-efficient axial flow fan
		Qty	6			6			8			8
	Refrigerant pipe connecting specification	Air pipe	2-φ 54			2-φ54			2-Φ 67			2-φ 67
		Liquid pipe	2-φ28			2-φ28			2-φ35			2-φ 35
	Weight	kg	2280			2400			2850			3000
Air-handling section	Blower	Type	Centrifugal type
	●Electric heater	Heating capacity (kw)	72			80			90			108
	●Steam heater	Heating capacity (kW)	160			180			200			280
	●Hot water heater	Heating capacity (kw)	160			180			200			280
	Filter unit		Plate-type primary efficiency G3
	Evaporator type		Efficient red copper tube cover aluminum fin
	Weight	kg	1450			1600			1700			2000

Applications

Commercial Buildings

Office towers, shopping malls, hotels, and retail centers: Benefits from large air volume and precise temperature control to enhance customer and employee comfort.

Industrial Facilities

Factories, warehouses, and production plants: Handles high heat loads and maintains stable environments for equipment and operations.

Public Spaces

Schools, hospitals, exhibition halls, and transportation hubs: All Fresh Air Type variant ensures high air quality, critical for crowded areas.

Competitive Advantages

Versatile Model Range

Three core types and 16+ models cover small to large-scale applications, eliminating the need for custom solutions.

Energy-Saving Components

High-efficiency axial flow fans, centrifugal blowers, and optimized refrigerant circuits reduce energy consumption by up to 15% compared to conventional units.

Easy Installation & Maintenance

Split design allows separate installation of compression-condensation and air-handling sections; sectioned air-handling units simplify transportation and on-site assembly.

Reliable Performance

Operates under strict working conditions (refrigeration: 27℃/19℃ indoor dry/wet bulb; 35℃ condenser inlet) with consistent output.

Usage & Installation Guidelines

Installation Precautions

Mount the unit on a stable rooftop foundation capable of supporting the unit weight (700 kg to 3300 kg).

Ensure proper spacing for ventilation: Maintain at least 1.5 meters of clearance around the condenser.

Follow refrigerant pipe specifications (air pipe: 3×φ28 to 2×φ67; liquid pipe: 3×φ16 to 2×φ35) for optimal performance.

Operation Tips

Set temperature within 18℃ to 26℃ for cooling and 20℃ to 28℃ for heating to maximize efficiency.

Regularly check air filters (plate-type primary efficiency G3) and clean or replace every 3 to 6 months.

FAQ

Can I switch between heat pump and single cold modes?

Yes, the Heat Pump Type supports both cooling and heating, while the Single Cold Type is dedicated to cooling—choose based on your regional climate needs.

What refrigerant should I select?

R410A is recommended for environmental friendliness (low GWP), while R22 is a cost-effective option for existing systems.

Is the unit suitable for coastal areas?

Yes, the corrosion-resistant fin material and sealed compressors ensure durability in humid, salty environments.

How accurate is the temperature control?

The unit maintains a ±1℃ temperature precision, ideal for spaces requiring stable climates (e.g., laboratories, data centers).
