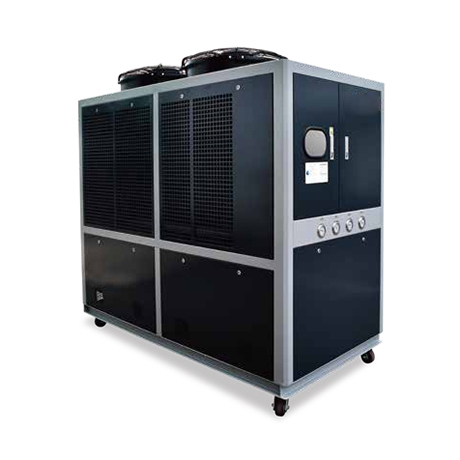

The Heavy-Duty Air-Cooled Industrial Oil Cooler is a professional cooling equipment dedicated to hydraulic oil, lubricating oil and thermal oil cooling of heavy machinery, adopting air-cooled heat exchange technology and a heavy-duty structural design to adapt to the harsh working conditions of construction, metallurgy and mining industries. This machinery-specific air-cooled oil cooler features imported hermetic rotor/scroll compressors, corrosion-resistant evaporators and a high-pressure oil pump system, with a cooling capacity ranging from 2.9kW to 180kW and precise oil temperature control (15℃/10℃ inlet/outlet). As a core B2B equipment for heavy machinery normal operation, the corrosion-resistant industrial oil cooler solves the problem of oil overheating in continuous high-load operation of machinery, extending the service life of hydraulic systems and reducing maintenance costs. Its outdoor-friendly design, complete safety protection and multiple customization options make it the first choice for oil cooling of construction machinery, mining equipment and industrial heavy-duty lathes.
High-strength welded steel frame with thickened metal plates and anti-vibration compressor mounting, resistant to strong vibration and impact during machinery operation (e.g., construction cranes, mining excavators).
Optional acid-alkali resistant evaporator and oil pipelines, suitable for cooling various industrial oils (hydraulic oil, lubricating oil, thermal oil) with different chemical properties; no oil leakage and easy cleaning.
Adopts MCHE or finned tube condenser with large air flow (1000~60000 m³/h), fast heat dissipation and no need for cooling water, adapting to water-scarce construction sites and open-air mining areas.
Equipped with a high-performance oil pump with pressure ranging from 2.0bar to 2.7bar and flow from 0.5m³/h to 31m³/h, ensuring sufficient oil circulation for heavy machinery cooling.
European/Japanese imported compressors, Danfoss/Sporlan/Carel refrigeration valves and ABB/SIEMENS/Schneider electrical components, with a mean time between failures (MTBF) of more than 8000 hours.
Digital temperature display microcomputer controller with real-time oil temperature monitoring; integrated overload, phase inversion, high/low pressure, low liquid level and anti-freezing protection for all-round equipment safety.
ITEM | UNIT | ACO–01AS | ACO–03AS | ACO–05AS | ACO–10AS | ACO–15AS | ACO–20AD | ACO–25AD | ACO–30AD | ACO–40AF | ACO–50AF | ACO–60AF | |
Cooling Capacity | kcal/h | 2494 | 7482 | 11782 | 24768 | 36550 | 49536 | 57448 | 73100 | 94256 | 114896 | 154800 | |
kW | 2.9 | 8.7 | 13.7 | 28.8 | 42.5 | 57.6 | 66.8 | 85 | 109.6 | 133.6 | 180 | ||
Power Input | kW | 1.4 | 3.4 | 5.1 | 9.9 | 15.4 | 20.4 | 23.6 | 30.6 | 40.4 | 46.8 | 59.2 | |
Maximum Running Current | A | 11 | 10 | 15 | 30 | 45 | 55 | 60 | 82 | 111 | 118 | 180 | |
Refrigerant | R22 | R410A | R22 | R410A | R22 | R410A | |||||||
Control Type | Digital temperature display microcomputer controller | ||||||||||||
Power Supply Type | 1N，220V，50Hz | 3N,380V,50Hz | |||||||||||
Safety Protection Device | Overload、Inverse Phase(3 Ph)、High/Low Pressure、Low Level、Antifreeze Protection，etc | ||||||||||||
Compressor | Type | Hermetic Rotor Or Scroll Type | |||||||||||
Power | kW | 0.9x1 | 2.7x1 | 4x1 | 8x1 | 12.7X1 | 8x2 | 9.6x2 | 12.7x2 | 8x4 | 9.6x4 | 12.7x4 | |
Condenser | Type | MCHE Or Finned Tubes | |||||||||||
Air Flow | m3/h | 1000 | 3000 | 5000 | 10000 | 15000 | 20000 | 25000 | 30000 | 40000 | 50000 | 60000 | |
Fan Power | kW | 0.11x1 | 0.33x1 | 0.55x1 | 1.1x1 | 0.8x2 | 1.1x2 | 1.1x2 | 1.1x2 | 1.1x4 | 1.1x4 | 1.1x4 | |
Evaporator | Type | Submerged Coil Type | Dry Shell And Tube Type | ||||||||||
In/Out Pipe Size | Inch | 1/2 | 1 | 1 | 1.5 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | |
Tank Volume | L | 30 | 70 | 70 | 120 | 120 | 200 | 200 | 200 | 400 | 400 | 400 | |
Pump | Flow | m3/h | 0.5 | 1.5 | 2.4 | 5 | 7.3 | 9.9 | 11.5 | 14.9 | 19.8 | 23 | 31 |
Pressure | bar | 2.1 | 2.2 | 2.2 | 2.3 | 2.5 | 2.5 | 2.4 | 2.2 | 2.2 | 2 | 2.2 | |
Power | kW | 0.37 | 0.75 | 0.75 | 1.5 | 2.2 | 3 | 3 | 3 | 4 | 4.5 | 7.5 | |
L×W×H | cm | 65*65*70 | 110*72*72 | 140*68*120 | 150*95*170 | 200*92*160 | 225*112*220 | 240*200*220 | |||||
Net weight | kg | 90 | 150 | 170 | 370 | 520 | 590 | 790 | 880 | 1100 | 1280 | 1420 | |
Refrigerant Charge | kg | 0.8 | 2.7 | 4.3 | 8.5 | 13 | 17 | 21 | 25 | 33 | 42 | 50 | |
★The above parameters based on chilled oil inlet/outlet temperature of 15℃/10℃,Ambient temperature 35 ℃.
★We reserve the rights to change the parameters without notice.
Fixed Installation: Install the oil cooler on the heavy machinery or a fixed base with strong anti-vibration bolts; ensure the oil inlet/outlet is at the same horizontal height as the machinery oil system.
Oil Pipeline Connection: Use high-pressure oil hoses to connect the unit’s oil inlet/outlet to the machinery oil tank; install a filter at the oil inlet to prevent metal impurities from entering the cooler.
Condenser Protection: Install a dust cover on the finned tube condenser for outdoor operation to prevent sand and gravel from blocking the fins (mining/construction sites).
Electrical Wiring: Follow the power supply type (1N/3N) to connect the power cord; use flame-retardant cables for flammable working conditions and ground the unit reliably.
Pre-Start Testing: Add the specified industrial oil to the unit’s oil tank; test the oil pump for normal operation and check for oil leakage at pipe joints; set the target oil temperature and commission the unit.
Construction Machinery: Oil cooling for excavators, cranes, loaders, concrete mixers and pile drivers in construction sites.
Mining Equipment: Hydraulic oil cooling for mining excavators, belt conveyors and ore crushers in open-pit and underground mines.
Metallurgical Industry: Lubricating oil cooling for rolling mills, forging machines and smelting equipment in steel plants.
Heavy Machine Tool: Oil cooling for large CNC lathes, machining centers and hydraulic presses in machine manufacturing factories.
Marine & Port Machinery: Oil cooling for port cranes, ship loaders and unloaders (with customized anti-corrosion design for marine environment).
Agricultural Machinery: Oil cooling for large harvesters, tractors and agricultural processing equipment in large-scale farms.
Evaporator Customization: Provide stainless steel plate heat exchanger or acid-alkali resistant evaporator for special industrial oil cooling.
Oil Pump Upgrade: Customize high-pressure/high-flow oil pumps to meet the large oil circulation demands of super heavy machinery.
Marine Anti-Corrosion Modification: Adopt marine-grade anti-rust paint and stainless steel components for marine/coastal application scenarios.
Explosion-Proof Design: Ex-explosion proof modification for oil and gas mining, chemical plant and other flammable and explosive working conditions.
Mobile Design: Add wheels and a portable handle for mobile oil cooling of small and medium-sized construction machinery.
Remote Monitoring: Upgrade to PLC control with RS485 communication, supporting remote oil temperature monitoring and fault alarm for fleet management of construction machinery.
The technical parameters are based on chilled oil inlet/outlet temperature of 15℃/10℃ and ambient temperature of 35℃, and the oil temperature can be adjusted according to machinery working demands.
Yes, the unit supports cooling of hydraulic oil, lubricating oil, thermal oil and other industrial oils; acid-alkali resistant evaporators can be customized for corrosive oil media.
This air-cooled model eliminates the need for cooling water towers and water pipelines, suitable for water-scarce construction/mining sites; it has a more compact structure and better mobility, and the heavy-duty design is more adaptable to harsh working conditions.
Regularly clean the condenser fins and oil filter to prevent blockage; check the oil level and refrigerant charge regularly; replace the oil seal and gaskets in time to avoid oil leakage.
