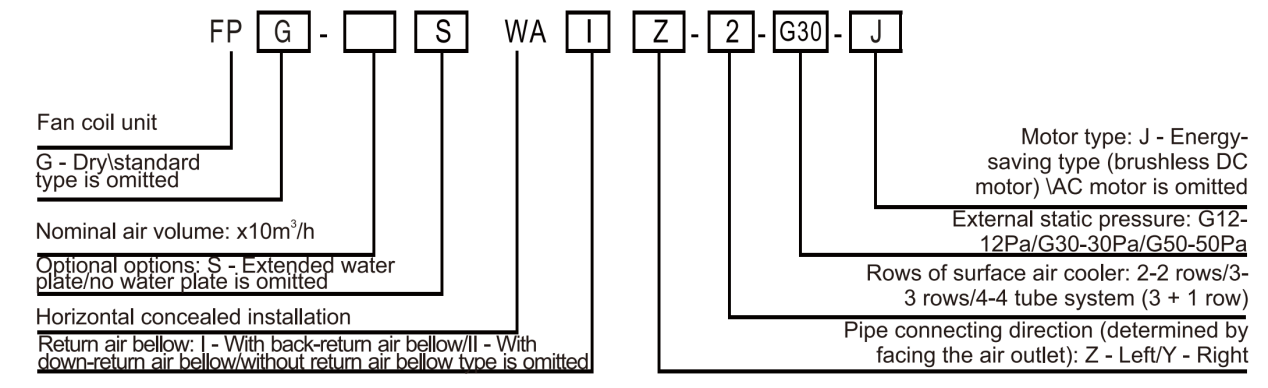

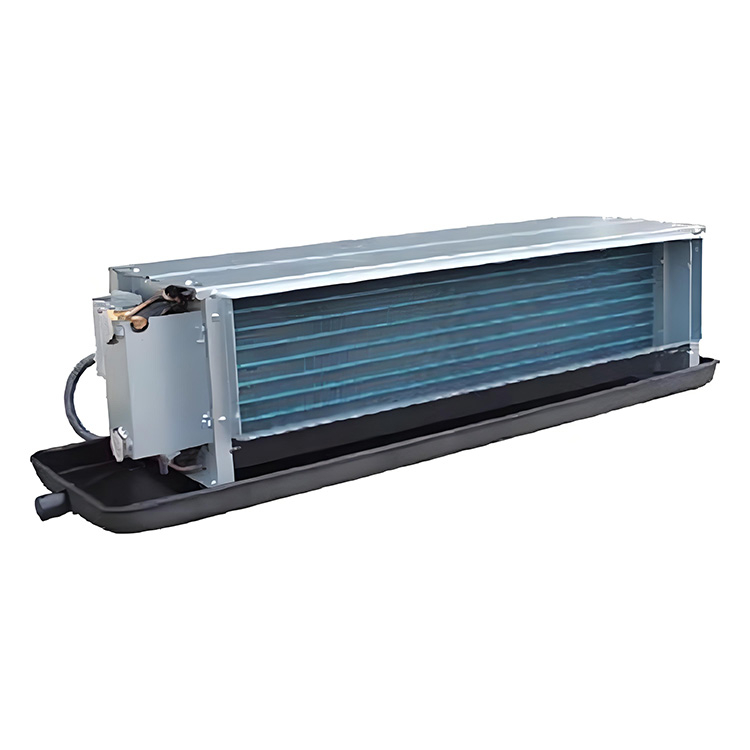

Unit Model Denotation Method
Note:
1. Judgment criteria for left and right type of unit:Facing the air, if the connecting pipe is on the left, it is left type; otherwise, it is right type;
2. The return air bellow and extended water plate are optional.If required, please specify at the time of ordering;
3. The speed-adjusting switch and unit power cord shall be prepared by the user;
4. Example of unit model denotation: FP-68WAlZ.2-G30 represents: unit air volume of 680m3/h, with back return air bellow, left type pipe connecting, external static pressure of 30Pa, AC motor with 2-row coil, and horizontal type fan coil unit.
5. Standard energy-saving fan coil (brushless DC motor)doesn't have network control. If required, please select the luxury configuration unit of our company.
6. Dry type fan coil can only select 3-row coil type.
Unit model | Air volume | Refrigerating | Heating | Water flow | Water | Input power (W) | Noise (A)) | Unit (kg) | Net | ||||||||||
High | Medium | Low | High | Medium | Low | High | Medium | Low | Refrigeration | Heating | Refrigeration | Heating | AC | DC | |||||
2-row coil | 34WA-G12(G30/G50) | 340 | 255 | 170 | 1968 | 1692 | 1299 | 3247 | 2793 | 2143 | 338 | 338 | 16.9 | 16.9 | 36(40/48) | 21(28/32) | 36.5(38.5/40.5) | 11 | 2.2 |
51WA-G12(G30/G50) | 510 | 383 | 255 | 2710 | 2385 | 1897 | 4672 | 4111 | 3270 | 466 | 466 | 29.2 | 29.2 | 49(55/63 | 27(35/43) | 37.5(40.5/43) | 13 | 2.5 | |
68WA-G12(G30/G50) | 680 | 510 | 340 | 3600 | 3060 | 2340 | 5880 | 4998 | 3822 | 619 | 619 | 25.3 | 25.3 | 59(6977) | 47(56/62) | 40(4344.5) | 14 | 2.8 | |
85WA-G12(G30/G50) | 850 | 638 | 425 | 4080 | 3509 | 2774 | 7081 | 6090 | 4815 | 701 | 701 | 28.9 | 28.9 | 76(8797 | 52(65/76) | 41(44/46.5) | 15 | 3.0 | |
02WA-G12(G30/G50) | 1020 | 765 | 510 | 4800 | 4176 | 3360 | 8560 | 7447 | 5992 | 825 | 825 | 36.2 | 36.2 | 94(106/117) | 62(84/99) | 44(46/48) | 16 | 3.3 | |
h36WA-G12(G30/G50) | 1360 | 1020 | 680 | 7054 | 5996 | 4656 | 9782 | 8315 | 6456 | 1212 | 1212 | 38.6 | 38.6 | 32(150/172) | 01(118/138 | 44.5(46.5/48.5) | 24 | 4.4 | |
3-row coil | 34WA-G12(G30/G50) | 340 | 255 | 170 | 2350 | 2021 | 1551 | 3647 | 3137 | 2407 | 404 | 404 | 26.9 | 26.9 | 36(40/45) | 20(27/31) | 35.5(38/41.5) | 12 | 2.2 |
51WA-G12(G30/G50) | 510 | 383 | 255 | 3200 | 2816 | 2240 | 5222 | 4595 | 3655 | 550 | 550 | 26.8 | 26.8 | 47(55/60) | 26(34/42) | 37.5(40/42.5 | 14 | 2.5 | |
68WA-G12(G30/G50) | 680 | 510 | 340 | 4200 | 3570 | 2730 | 6728 | 5719 | 4373 | 722 | 722 | 21.8 | 21.8 | 55(6578) | 45(55/61) | 39(42.5/44.5) | 15 | 2.8 | |
85WA-G12(G30/G50) | 850 | 638 | 425 | 5030 | 4326 | 3420 | 7903 | 6797 | 5374 | 864 | 864 | 29.9 | 29.9 | 75(82/95) | 51(6375) | 41(43.5146) | 16 | 3.0 | |
02WA-G12(G30/G50) | 1020 | 765 | 510 | 6020 | 5237 | 4214 | 9425 | 8200 | 6598 | 1034 | 1034 | 36.4 | 36.4 | 94(107/116) | 61(83197) | 4(45.548) | 17 | 3.3 | |
36WA-G12(G30/G50) | 1360 | 1020 | 680 | 8120 | 6902 | 5359 | 12328 | 10479 | 8137 | 1395 | 1395 | 29.9 | 29.9 | 128(148/165) | 99(116/136) | 44.5(45.5/49 | 25 | 4.4 | |
70WA-G12(G30/G50) | 1700 | 1275 | 850 | 9400 | 8272 | 6392 | 15963 | 14047 | 10855 | 1615 | 1615 | 39.4 | 39.4 | 150(170/200) | 15(145/175) | 46.5(48/50.5) | 28 | 4.5 | |
204WA-G12(G30/G50) | 2040 | 1530 | 1020 | 11800 | 10148 | 7788 | 18463 | 15878 | 12185 | 2028 | 2028 | 40 | 40 | 188(211/245) | 55(180/221) | 48(50/52) | 31 | 5.3 | |
238WA-G12(G30/G50) | 2380 | 1785 | 1190 | 13200 | 11484 | 9240 | 20766 | 18066 | 14536 | 2268 | 2268 | 42 | 42 | 225(236/280) | 82(193/255) | 50.5(51.5/53) | 34 | 6.0 | |
4-tube system (3+1 row coi) | 34WA-G12(G30/G50) | 340 | 255 | 170 | 2250 | 1935 | 1485 | 1850 | 1591 | 1221 | 387 | 129 | 20 | 15 | 36(40/45) | 20(27/31) | 35.5(38/41.5 | 12.5 | 2.2 |
51WA-G12(G30/G50) | 510 | 383 | 255 | 3100 | 2728 | 2170 | 2700 | 2376 | 1890 | 533 | 178 | 20 | 30 | 47(55/60) | 26(34/42) | 37.5(40/42.5) | 14.5 | 2.5 | |
68WA-G12(G30/G50) | 670 | 503 | 335 | 4000 | 3400 | 2600 | 3200 | 2720 | 2080 | 687 | 229 | 30 | 30 | 55(65/78) | 45(55/61) | 39(42.5/44.5 | 15.5 | 2.8 | |
85WA-G12(G30/G50) | 820 | 615 | 410 | 4850 | 4171 | 3298 | 3850 | 3311 | 2618 | 833 | 278 | 28 | 15 | 75(82/95) | 51(63/75) | 41(43.5/46) | 16.5 | 3.0 | |
102WA-G12(G30/G50) | 1010 | 758 | 505 | 5750 | 5002.5 | 4025 | 4700 | 4089 | 3290 | 988 | 329 | 35 | 20 | 94(107/116) | 61(83/97) | 4(45.548) | 17.5 | 3.3 | |
136WA-G12(G30/G50) | 1300 | 975 | 650 | 7300 | 6205 | 4818 | 6150 | 5227.5 | 4059 | 1254 | 418 | 28 | 15 | 128(148/165) | 99(116/136) | 44.5(45.5/49) | 26 | 4.4 | |
170WA-G12(G30/G50) | 1680 | 1260 | 840 | 8700 | 7656 | 5916 | 7150 | 6292 | 4862 | 1495 | 498 | 35 | 20 | 150(170/200) | 115(145/175) | 46.5(48/50.5 | 29 | 4.5 | |
204WA-G12(G30/G50) | 2000 | 1500 | 1000 | 10500 | 9030 | 6930 | 8850 | 7611 | 5841 | 1804 | 601 | 38 | 30 | 188(211/245) | 155(180/221) | 48(50/52) | 32 | 5.3 | |
238WA-G12(G30/G50) | 2330 | 1748 | 1165 | 12100 | 10527 | 8470 | 10300 | 8961 | 7210 | 2079 | 693 | 41 | 40 | 225(236/280) | 82(193/255) | 50.5(51.553 | 35 | 6.0 | |
Fan | Metal forward curved multi-blades centrifugal fan | ||||||||||||||||||
Power supply | 1/N/PE AC 220V 50Hz | ||||||||||||||||||
Heat exchanger | Copper tube cover bouver aluminum fin,with working pressure of 1.6MPa | ||||||||||||||||||
Piping | Cold water coil connecting to pipe RC3/4(DN20),hot water coil connecting to pipe Rc1/2(DN15), | ||||||||||||||||||
Note:
1. The unit noise value is measured in the anechoic room and 1m away from the air outlet of unit. (see page 14 for details);
2. Test conditions under refrigerating working condition:Air inlet dry bulb temperature:27℃, wet bulb temperature: 19.5℃, water inlet temperature: 7℃, and water outlet temperature: 12℃;
3. Test conditions under heating working condition: Air inlet dry bulb temperature: 21 C, and water inlet temperature: 60℃;
4. The air volume, refrigerating capacity, heating capacity and other parameters in the table are all based on the unit without return air bellow; if with return air bellow, the relevant parameters shall multiply with the correction coefficient (0.95 for air volume, and 0.97 for refrigerating capacity and heating capacity);
5. The left and right type of unit can be changed on site; however, after changing, the refrigerating and heating capacity shall multiply with the correction coefficient of 0.9-0.95.
