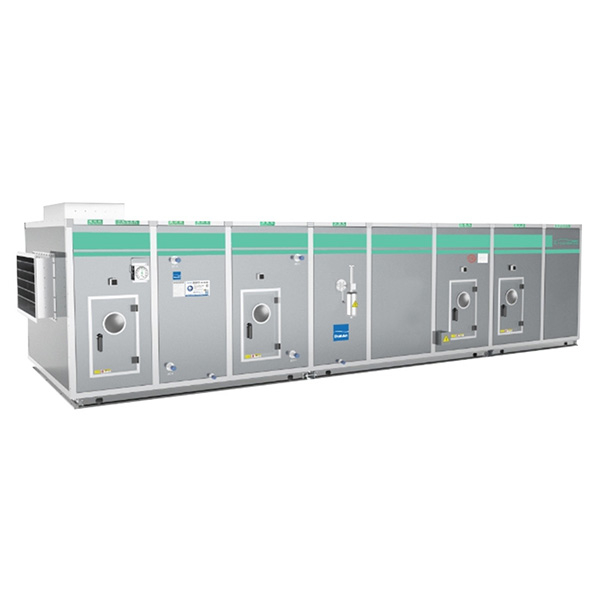

I-excellence Series Modular Air-conditioning

The modular air-conditioning unit represents the pinnacle of modern HVAC engineering, meticulously crafted to transform the atmosphere of expansive commercial and industrial spaces. Upon first glance, the robust metallic finish of the cabinet exudes industrial elegance, complemented by meticulously aligned stainless steel pressure gauges and a visually seamless exterior. The tactile sensation of the smooth, anti-corrosion panels hints at the uncompromising durability built into every square inch. When operational, the system hums with a quiet, reassuring resonance, a testament to the advanced aerodynamic design and vibration-dampening materials that eliminate disruptive mechanical noise. Beyond its sophisticated appearance, this unit breathes life into enclosed environments, delivering a crisp, perfectly conditioned airflow that feels natural and revitalizing. The internal architecture is a marvel of precision, utilizing high-pressure foamed polyurethane and specialized insulation to ensure optimal thermal retention. Facility managers will appreciate the meticulous craftsmanship, where every wrap angle support and flat connection cover is tool-made for absolute dimensional accuracy. This is not merely an air conditioning unit; it is a comprehensive climate management asset designed to optimize energy consumption, drastically reduce operational overhead, and maintain an impeccable indoor environment for the most demanding facilities.

Unit Feature

1. The whole foamed case board adopts an aluminum-plastic composite frame and multiple sealing and splicing. The inner panel is provided with lining steel, high-strength connection cover and L-support for fixing.

The buckle sealing and splicing are fixed with bolts. The mechanical strength of cabinet reaches EN1886 Level D1 and the air leakage rate reaches EN1886 Level L1.

2. The profiles adopt aluminum-plastic composite structure. After the panel is formed, the inner and outer plates are completely separated by PVC and EVA materials, and the high-pressure foamed polyurethane thermal insulation material is filled inside, so as to eliminate cold bridge of the cabinet and prevent cold loss.

3. The access door is manufactured by using German technology, and the door leaf is integrally foamed. The combination of seamless dispensing technology with double-edge sealing on the door frame can ensure no deformation and no leakage point under pressure of 3000 Pa.

4. The cabinet enjoys environmentally friendly appearance, sub-series English LOGO, and built-in bolt design.

The product has optimized modular design and can be customized for the customer.

5. The stainless steel connecting pipe pressure gauge is neat, beautiful, and anti-corrosion: aluminum alloy flange frame has good flatness, low secondary air leakage, and beautiful appearance; wrap angle support, L-support, flat connection cover and other common parts all adopt toolmaking mode to ensure accurate dimension.

6. The internal splicing of the box is flat and seamless without any accumulation of dust. The water plate adopts a three-dimensional dam structure to ensure that the condensing water is drained during the operation of the unit, so as to prevent the growth of bacteria, and fully meet the requirements of cleanliness and hygiene.

7. In accordance with DIN6701 certification process, each operator is professionally trained by the European bonding technician; the "nuclear grade" insulation cotton splicing and sticking process ensures the insulation and sealing effects, excellent anti-aging and anti-condensation performance of the insulation cotton throughout the unit.

8. The heat exchanger has passed the AHRI certification and is selected by professional software. The software is written in strict accordance with the law of thermal engineering and modified according to the practical usage of coils, so as to make the product more reliable.

9. The stainless steel plate can increase anti-skid treatment according to the user's need: The unit uses natural emptying technology and adopts Z-shaped inclined design for the connection pipes between the inlet pipe and surface air cooler, so as to ensure the water can be drained naturally in the surface air cooler. Such design can eliminate the frost cracking of water pipes in winter caused by incomplete drainage of surface air cooler. The design of the filter strainer retainer allows the customer to conveniently disassemble and maintain the strainer.

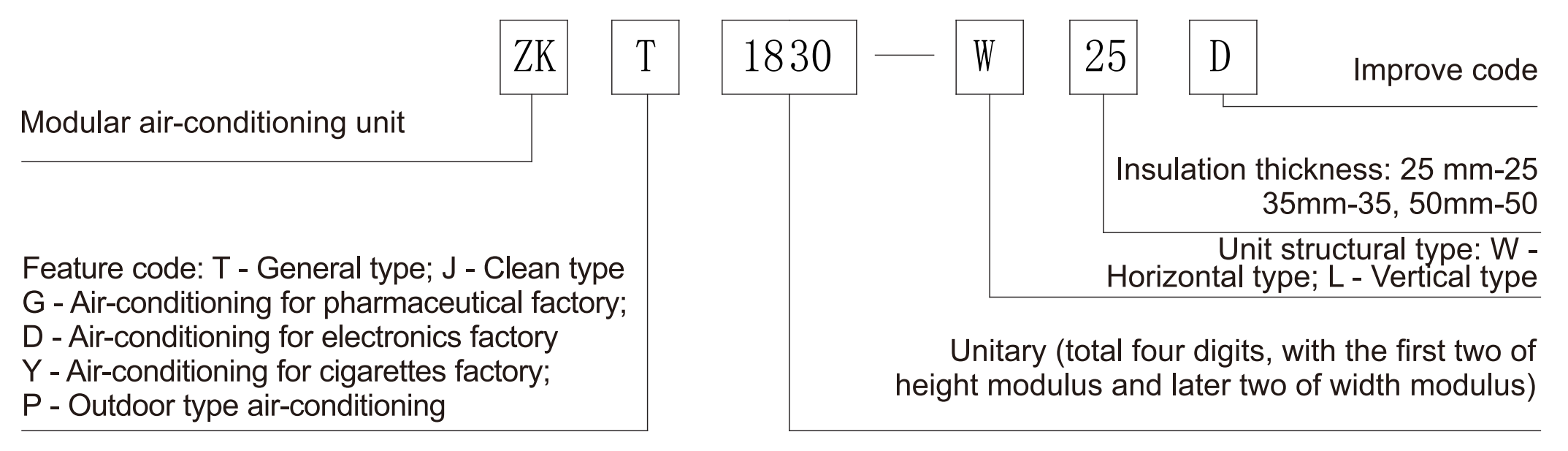

Unit Model Denotation Method

Note:

1. Oval tube heat exchanger has over-sized net flow area. It is recommended to select the type according to the face velocity of 3m/s;

2. When the coil face velocity exceeds 3.5m/s, the surface air cooler is not suitable while the heater is applicable.
