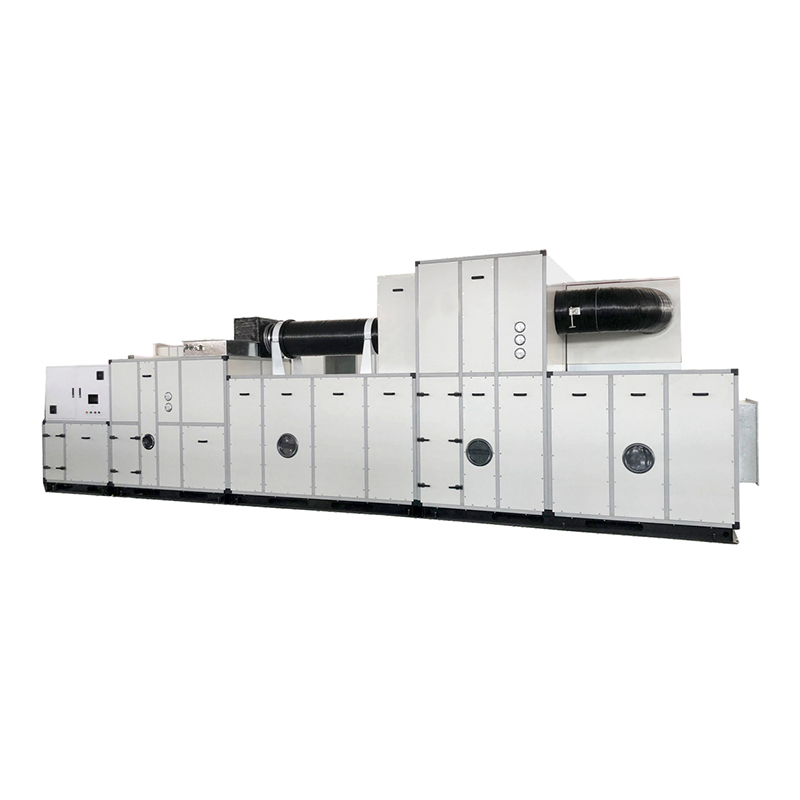

Unit Features
The structure features a thermal break aluminum alloy frame and polyurethane foam panels for excellent insulation;
The core component uses a silica gel rotor from PROFLUTE of Sweden, achieving a dew point temperature as low as -70℃;
High-temperature regeneration utilizes a waste heat recovery system, saving energy;
The PLC microcomputer automatic control system ensures stable operation, and the touchscreen human-machine interface is easy to use;
The entire unit features a modular design for convenient transportation and maintenance.
SPECIFICATIONS
The selection of air intake parameters is mainly based on local climate conditions. The unit's model and configuration vary depending on the customer's temperature and humidity requirements for their processes.
Parameters model | ADL-E2000 | ADL-E3500 | ADL-E6000 | ADL-E9000 | ADL-E12000 | ADL-E16000 | ADL-E21000 | ADL-E26000 |
Airflow range (m³/h) | 1500-2000 | 3000-3500 | 5500-6000 | 8500-9000 | 11000-12000 | 15000-16000 | 20000-21000 | 25000-26000 |
Processing airflow (m³/h) | 2000 | 3500 | 6000 | 9000 | 12000 | 16000 | 21000 | 26000 |
Regeneration airflow (m³/h) | 350 | 600 | 1000 | 1500 | 2000 | 2650 | 3500 | 4350 |
Minimum outlet dew point (°Cd) | -70 | -70 | -70 | -70 | -70 | -70 | -70 | -70 |
Regeneration energy consumption (kW) | 14.5 | 25 | 41 | 61.5 | 82 | 111 | 143.5 | 182 |
Processing fan power (kW) | 2.2 | 2.6 | 5.2 | 9.5 | 13 | 18.5 | 26 | 30 |
Regeneration fan power (kW) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 |
Drive motor power (kW) | 0.12 | 0.12 | 0.12 | 0.12 | 0.18 | 0.18 | 0.24 | 0.24 |
Total power (kW) | 17.37 | 28.47 | 47.42 | 72.62 | 97.38 | 132.68 | 173.74 | 217.74 |
Notes: 1. The performance listed in this table is based on the following conditions: ambient temperature: 28℃; ambient relative humidity: 60%RH; regeneration temperature: 120℃; air density: 1.2 KG/M3; 2. Regeneration heating can be achieved through electric heating, steam heating, thermal oil heating, high-temperature heat pump heating (requires separate design), etc.; 3. Due to continuous technological advancements, the actual technical parameters are subject to the parameters designed by the manufacturer. | ||||||||
Application Areas
Mainly used in industries such as lithium-ion new energy, biopharmaceuticals, food industry, aerospace, precision electronics manufacturing, coating, wood processing, warehousing and drying, and laboratory research.
 |  |  |
| Warehousing and drying | aerospace industry | coating industry |
 |  |  |
| Lithium-ion battery new energy | laboratory research | biopharmaceuticals |
