This professional Cleanroom T-Grid Ceiling is a high-performance ceiling solution specially designed for industrial cleanrooms, HVAC systems, FFU installation, and clean workshop construction. Made of 38mm aluminum extrusion profile with a complete set of connectors and level adjusters, our 38mm Aluminum T-Grid Ceiling delivers stable structure, easy assembly, and perfect compatibility with cleanroom building standards, helping engineering contractors and cleanroom solution providers improve construction efficiency and project quality.
Our Cleanroom T-Grid Ceiling adopts 38mm×38mm high-strength aluminum extrusion material, which features strong load-bearing capacity, corrosion resistance, and long service life. It supports long-term stable use in dust-free, sterile, and humidity-controlled cleanroom environments, effectively reducing later maintenance and replacement costs for your project.
Different from ordinary ceiling grids, this FFU Compatible T-Grid Ceiling is equipped with a dedicated level adjustment structure. It allows on-site micro-adjustment of ceiling flatness, greatly improving installation accuracy and shortening construction time for engineering teams. This design makes it the preferred choice for high-standard cleanroom ceiling projects.
The structure of our Cleanroom HVAC Ceiling System is fully optimized for FFU (Fan Filter Unit) installation, air return duct matching, and HVAC system integration. It ensures smooth air circulation and purification effects in cleanrooms, fully meeting the operational requirements of electronics, pharmaceutical, food, and other precision manufacturing cleanrooms.

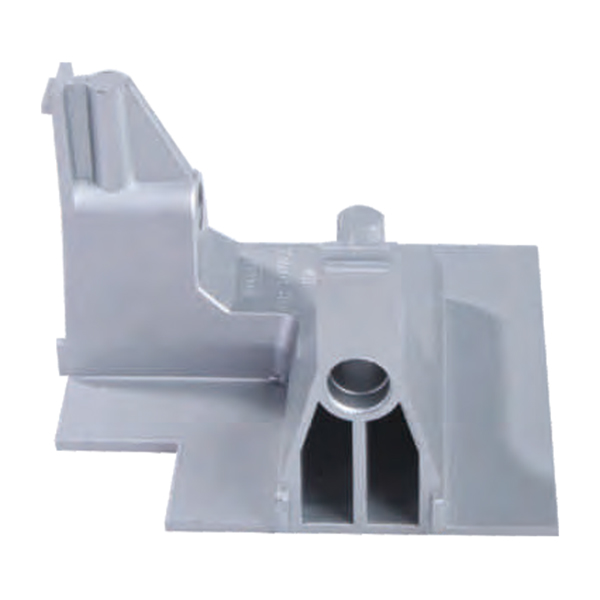

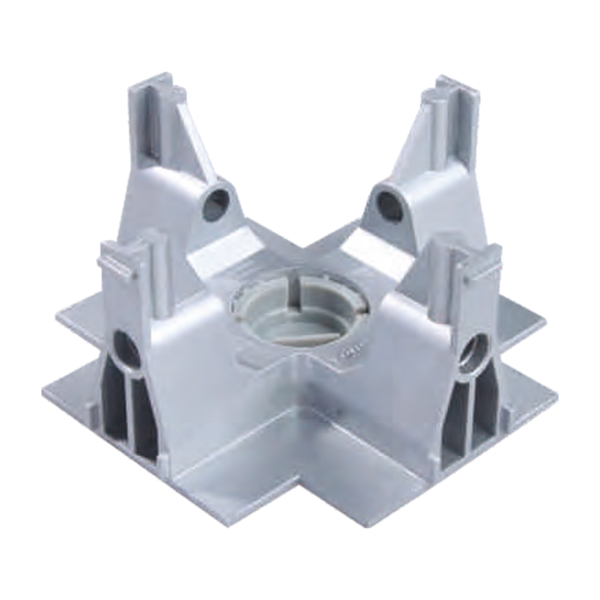

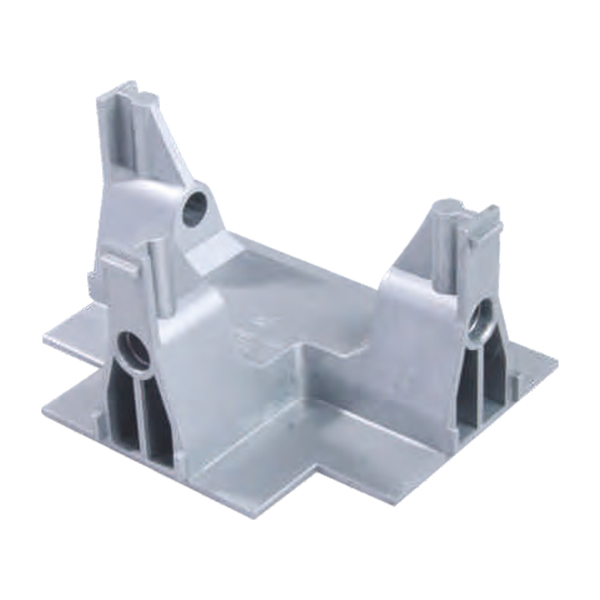

The T-Grid Ceiling Assembly system is equipped with 2-way, 3-way, and 4-way standard connectors, fixed with M8 high-strength bolts. The modular design supports flexible layout and expansion according to cleanroom area and structure, adapting to various RC ceiling and rock wool panel installation scenarios.
Parameter Category | Details |
Main Frame | 38mm×38mm aluminum extrusion profile |
Connector Types | 2-way / 3-way / 4-way standard connectors |
Fasteners | M8 connecting bolts, M4 suspension screws |
Matching Panel | 1170×570mm blind panel, rock wool panel |
Applicable Scene | Cleanroom, HVAC system, FFU installation, RC ceiling |
Adjustment Function | Integrated level adjuster for flatness correction |
These complete specifications make our Cleanroom T-Grid Ceiling highly adaptable to different cleanroom engineering designs and ensure stable performance in actual use.

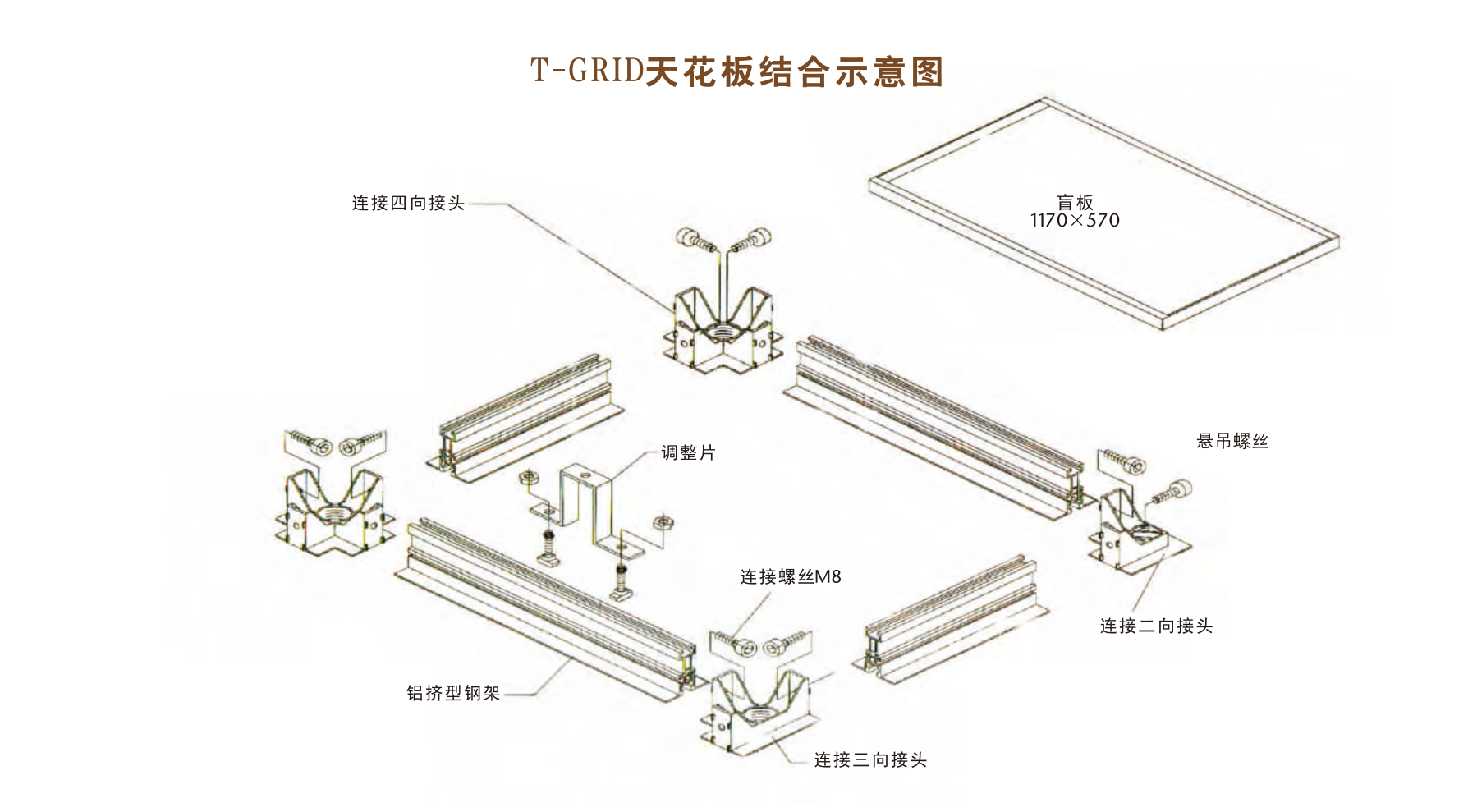

The complete set includes: 38mm aluminum frame, multi-directional connectors, level adjustment sheet, M8 bolts, suspension beams, blind panels, and fixing accessories. All parts are produced with uniform standards for easy replacement and on-site construction.

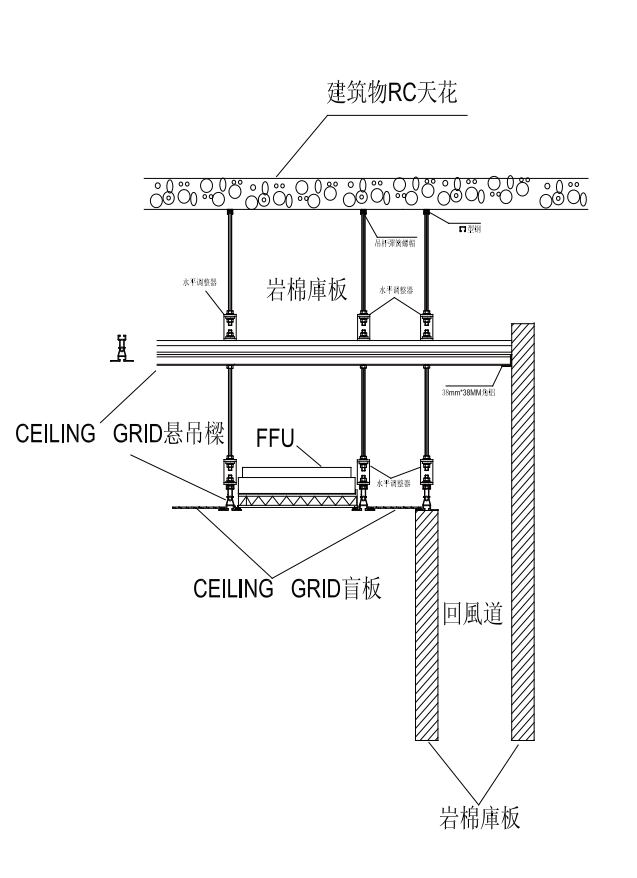

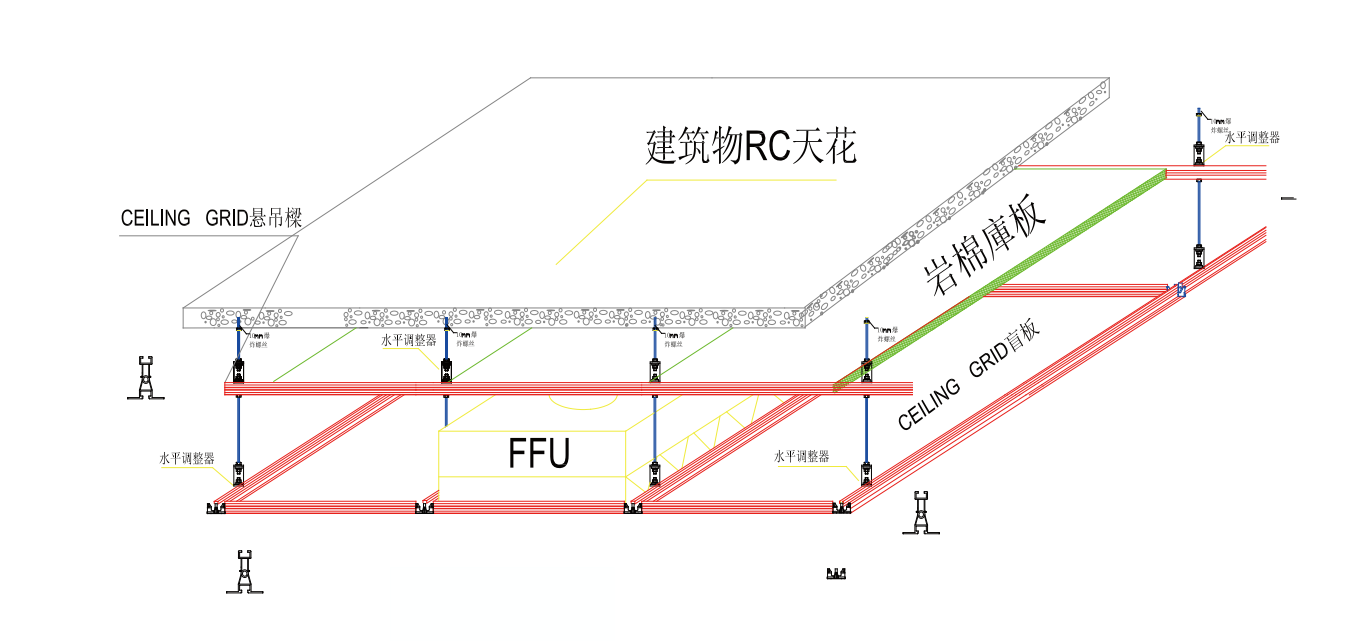

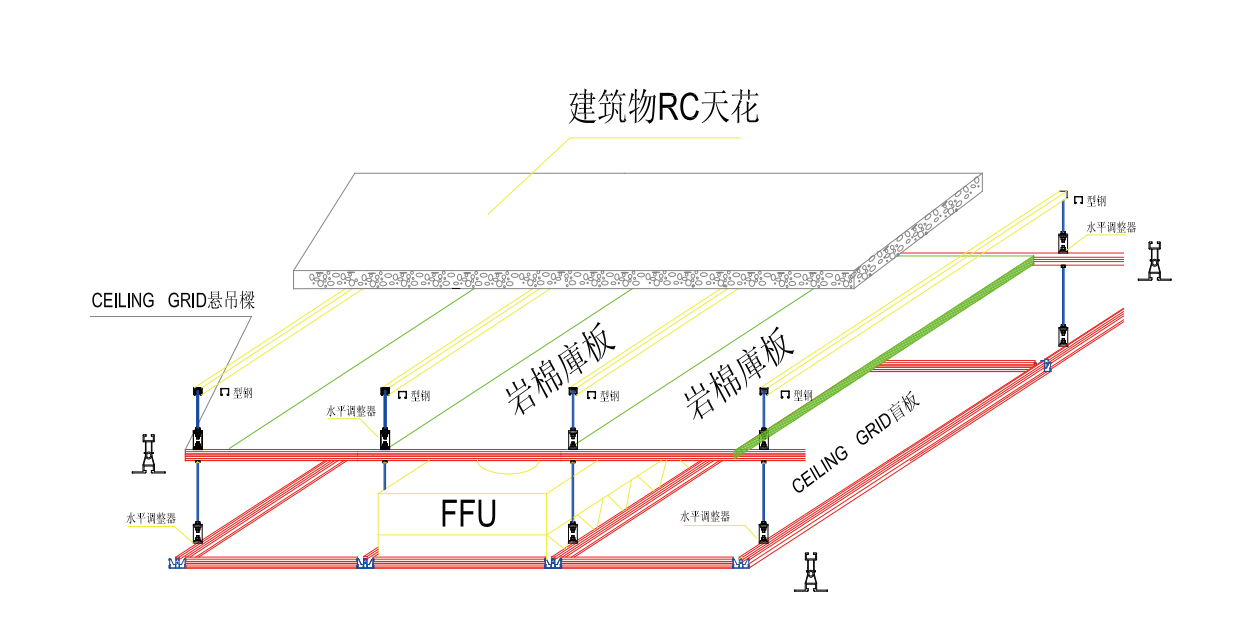

Fix suspension beams to the building RC ceiling using M4 suspension screws.
Connect aluminum frames with 2/3/4-way connectors and lock with M8 bolts.
Install level adjusters and complete preliminary flatness adjustment.
Install blind panels and rock wool panels to form a complete ceiling surface.
Connect with FFU and air ducts to realize the integration of Cleanroom HVAC Ceiling System.
Our Cleanroom T-Grid Ceiling is widely used in professional cleanroom and HVAC projects, including:
Electronics manufacturing cleanrooms (semiconductor, PCB, precision instrument workshops)
Pharmaceutical and medical cleanrooms (GMP-standard sterile workshops)
Food processing and packaging dust-free workshops
HVAC system renovation and FFU installation projects
Industrial workshop RC ceiling and rock wool panel supporting projects
It has become a core ceiling component for professional cleanroom engineering and HVAC system integration.
We provide targeted customization services for our 38mm Aluminum T-Grid Ceiling to meet different project needs:
Custom frame size and panel dimensions
Special connector and load-bearing design
Matching solutions for non-standard FFU and HVAC systems
One-stop technical support from our professional engineering team
We support both sample orders and bulk wholesale, providing reliable supply for cleanroom contractors and system integrators.
Yes, our standard 38mm Cleanroom T-Grid Ceiling is compatible with most industrial FFU models. We also provide customized frame sizes for non-standard equipment.
Standard inventory models can be shipped quickly. Customized products have a short production cycle, and we will provide an accurate delivery plan according to your order quantity.
We offer complete assembly drawings, installation manuals, and online technical guidance to help your team complete efficient and standardized installation.
