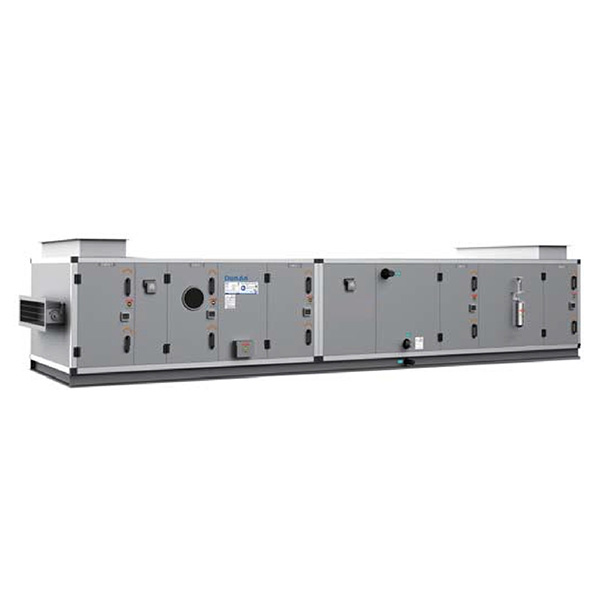

Purification Modular Air-conditioning Unit
Purification Modular Air-conditioning Unit Purification Modular Air-conditioning Unit

loading

Purification Modular Air-conditioning Unit

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Unit Feature
1. Low air leakage and high strength;
2. Without cold bridge or condensation;
3. High performance and low wind resistance;
4. Anti-freeze surface air cooler design;
5. Professional software design;
6. Prevention of secondary pollution design;
7. Multi-working conditions and standard functional section design;
8. Intelligent control.
Availability:
Quantity:
Inquire Add to Basket
Previous:
Next:
Product Description

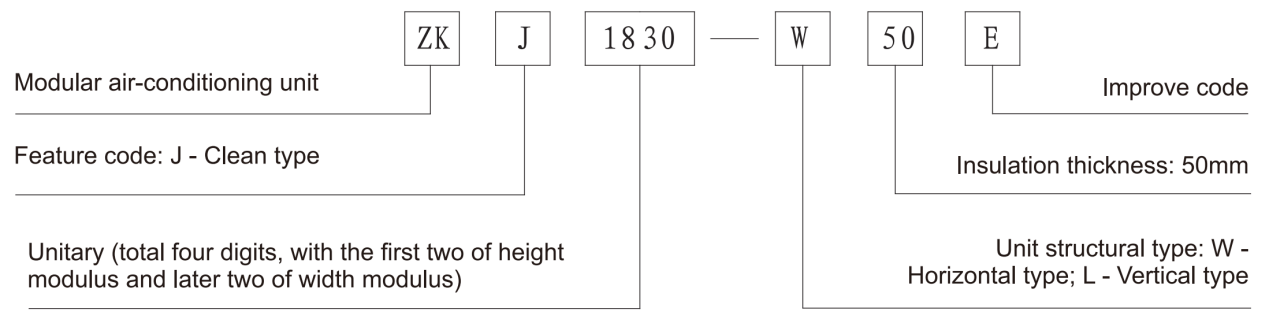

Unit Mode Denotation Method

图层 1 wecom-temp-844715-d92e5f692786cb2d6a460498ab781edb 1



Technical Parameters

Unit
specification

Unit heigh

Unit width

Coil
face area

Coil face velocity(m/s)

2.00

2.25

2.50

2.75

3.00

3.25

mm

mm

m²

Air  volume(m³/h)

0606

800

700

0.16

1108

1327

1474

1622

1769

1916

0607

800

800

0.21

1482

1667

1852

2037

2223

2408

0608

800

900

0.25

1784

2007

2230

2453

2676

2899

0707

900

800

0.26

1905

2143

2381

2620

2858

3096

0708

900

900

0.32

2294

2581

2867

3154

3441

3728

0709

900

9100

0.37

2683

3018

3353

3689

4024

4359

0710

900

1100

0.43

3072

3455

3839

4223

4607

4991

0711

900

1200

0.48

3460

3893

4325

4758

5190

5623

0712

900

1300

0.53

3849

4330

4811

5293

5774

6255

0713

900

1400

0.57

4121

4636

5152

5667

6182

6697

0811

1000

1200

0.59

4229

4758

5287

5815

6344

6873

0812

1000

1300

0.65

4704

5293

5881

6469

7057

7645

0813

1000

1400

0.70

5037

5667

6296

6926

7556

8185

0814

1000

1500

0.77

5512

6201

6890

7579

8268

8958

0815

1000

1600

0.83

5988

6736

7484

8233

8981

9730

1013

1200

1400

0.89

6411

7212

8014

8815

9616

10418

1014

1200

1500

0.97

7016

7893

8770

9647

10524

11400

1015

1200

1600

1.06

7620

8573

9526

10478

11431

12383

1016

1200

1700

1.14

8225

9253

10282

11310

12338

13366

1115

1300

1600

1.21

8709

9798

10886

11975

13064

14152

1116

1300

1700

1.31

9400

10575

11750

12925

14100

15276

1117

1300

1800

1.40

10092

11353

12614

13876

15137

16399

1118

1300

1900

1.50

10783

12131

13478

14826

16174

17522

1317

1500

1800

1.66

11984

13482

14980

16478

17976

19473

1318

1500

1900

1.78

12804

14405

16006

17606

19207

20807

1319

1500

2000

1.89

13625

15328

17032

18735

20438

22141

1320

1500

2100

2.01

14446

16252

18058

19863

21669

23475

1322

1500

2300

2.23

16088

18099

20110

22121

24132

26142

1422

1600

2300

2.47

17781

20004

22226

24449

26672

28894

1424

1600

2500

2.72

19596

22045

24494

26944

29393

31843

1721

1900

2200

2.90

20892

23503

26114

28726

31337

33949

1722

1900

 2300

3.06

22015

24767

27518

30270

33022

35774
1724
 1900 2500 3.37 24261

27294

30326

33359

 36392 39424
1726 1900 2700 3.68 26508

29821

33134

36448

 39761 43075
1926 2100 2700 3.96 28547

32115

35683

39252

 42820 46388
1928 2100 2900 4.30 30966

34836

38707

42578

 46449 50319
2226 2400 2700 4.67 33644

37850

42055

46261

 50466 54672
2228 2400 2900 5.07 36495

41057

45619

50181

 54743 59305
2230 2400 3100 5.46 39347

44265

49183

54102

59020

 63938
2430 2600 3100 5.96 42924

48289

53654

59020

64385

 69751
2432 2699 3300 6.39 46034

51788

57542

63297

69051

 74805
2632 2800 3300 7.10 51149

57542

63936

70330

76723

 83117
2634 2800 3500 7.58 54605

61430

68256

75082

81907

 88733
2834 3000 3500 8.15 58700

66038

73375

80713

88050

 95388
2840 3000 4200 9.08 65388

73156

81734

89908

98081

 106255
2844 3000 4600 10.11 72818

81920

91022

100125

109227

 118329
3046 3200 4800 11.37 81873 92107 102341 112575 122809 133043

Note: When the coil face velocity is less than 3.25m/s, it's not applicable to the surface air cooler, but applicable to heater.
