The stainless steel interlocking cleanroom pass box is a professional clean area transfer equipment with 19 years of R&D and manufacturing experience, specially designed for B-end cleanroom scenarios to transfer small items between clean areas and between clean areas and non-clean areas. This GMP-compliant cleanroom transfer box effectively reduces the number of cleanroom door openings and minimizes cross-contamination in clean areas, and is divided into three types: ordinary sterile pass box, sterile laminar flow pass box and air shower pass box for clean area. Adopting high-quality SUS304 stainless steel as the main material, it has the characteristics of easy cleaning, high airtightness and strong corrosion resistance, and its performance meets ISO 5 cleanliness standards and the latest cGMP requirements. It is an essential auxiliary equipment for cleanrooms in the pharmaceutical, electronic, food and laboratory industries, and provides a reliable sterile transfer solution for B-end enterprises with strict clean requirements.
The 304 stainless steel cleanroom pass through uses thickened SUS304 stainless steel for the main body and inner wall, with an internal arc structure without dead corners, easy to clean and disinfect; the glue-foamed integrated airtight strip is adopted to realize high confinement and effectively prevent the entry of external dust and bacteria.
Equipped with LCJ brand electronic interlock system, it realizes lock-on power and unlock-off power to avoid simultaneous opening of double doors and prevent cross-contamination; built-in Philips ultraviolet germicidal lamp (embedded installation) with a service life of 8000H, which can realize efficient sterilization of transferred items.
The sterile laminar flow pass box is equipped with a liquid tank high-efficiency filter (99.99% filtration efficiency for 0.3μm particles), PAO dust outlet and DOP detection port to ensure filter element integrity, and the cleanliness reaches ISO 5 (better than 209E class100), fully complying with the latest cGMP requirements.
The air shower pass box for clean area is equipped with a photoelectric sensor, which realizes automatic induction air shower with adjustable time (wind speed ≥25m/s); the laminar flow type is equipped with an LCD touch screen and American Dwyer differential pressure gauge, with adjustable laminar flow and sterilization time, and high-efficiency filter replacement reminder function.
Configuration | Specifications | Optional Options |
Overall size (W×D×H) | 860×680×1250mm (external) | 1060×880×1450mm (external) |
Inner size (W×D×H) | 600×600×600mm | 800×800×800mm |
Main material | SUS304 stainless steel | External SPCC sprayed steel plate + inner SUS304 |
Interlock type | LCJ electronic interlock | / |
Glass window | Double-layer hollow black edge paint, 5mm tempered glass | 502×502×5mm / 650×650×5mm |
Germicidal lamp power | 8W/18W | 8-16W (customizable) |
Cleanliness standard | ISO 5 (better than 209E class100) | / |
Wind speed | 0.45m/s ±20% | / |
Filtering system | Flume HEPA (99.99%@0.3μm) | 520×520×93mm / 650×650×93mm |
Differential pressure gauge | Dwyer 0-500Pa | / |
Inspection port | SUS PAO dust outlet + DOP detection port | / |
Power supply | AC220V 140W | / |
Handle type | Snap-on stainless steel handle | Customizable stainless steel handle |
Classify and check the components of different types of pass boxes (ordinary sterile/laminar flow/air shower): ensure the integrity of the high-efficiency filter, differential pressure gauge and germicidal lamp of the sterile laminar flow pass box; check the air shower fan and nozzle of the air shower type for no blockage.
Fix the 304 stainless steel cleanroom pass through on the cleanroom wall according to the installation position (reserve the corresponding installation hole); install the electronic interlock system and germicidal lamp, connect the power supply and conduct an interlock test to ensure the double doors cannot be opened at the same time; install the high-efficiency filter and differential pressure gauge, and seal the connection part to avoid air leakage.
Conduct an airtightness test on the pass box to ensure no air leakage at the door and connection parts; calibrate the wind speed of the laminar flow/air shower type and the sterilization time of the germicidal lamp; detect the cleanliness of the inner cavity to ensure it meets the ISO 5 standard, and record the test data for filing.
As a GMP-compliant cleanroom transfer box, it is used for the sterile transfer of pharmaceutical raw materials, finished drugs and experimental samples in pharmaceutical workshops and biotech labs, meeting the strict GMP clean requirements.
Suitable for the transfer of precision electronic components, semiconductor chips and micro-parts in electronic cleanrooms, effectively preventing dust and static electricity from polluting high-precision products.
Used in the sterile transfer of food raw materials, packaging materials and finished products in food clean workshops, avoiding microbial contamination and ensuring food safety and hygiene.
Applicable to the transfer of experimental samples, culture media and testing equipment in university laboratories and scientific research institute cleanrooms, maintaining the sterile environment of the laboratory and the accuracy of experimental results.
Customize the internal and external dimensions of the stainless steel interlocking cleanroom pass box according to the thickness of the cleanroom wall and the size of the transferred items; the material can be customized as full SUS304 stainless steel or external SPCC sprayed steel plate with inner SUS304 to reduce enterprise costs.
Support the customization of germicidal lamp power (8-16W), handle type and glass window size; the sterile laminar flow pass box can be added with a no-hinge design and a concealed UV germicidal lamp according to requirements.
For the air shower pass box for clean area, customize the air shower wind speed and induction time; for the laminar flow type, optimize the filter system configuration and add an intelligent fault alarm function to match the personalized needs of the enterprise's cleanroom.
The standard cleanliness reaches ISO 5 (better than 209E class100), and the high-efficiency filter can achieve 99.99% filtration efficiency for 0.3μm particles.
The unit uses LCJ brand electronic interlock with all stainless steel lock core, which realizes lock-on power and unlock-off power, with stable performance and long service life, effectively preventing cross-contamination.
The built-in Philips ultraviolet germicidal lamp has a service life of 8000H, with an embedded installation design and simple replacement steps, without professional maintenance personnel.
Type-Ordinary (Sterile) Pass box
|
|

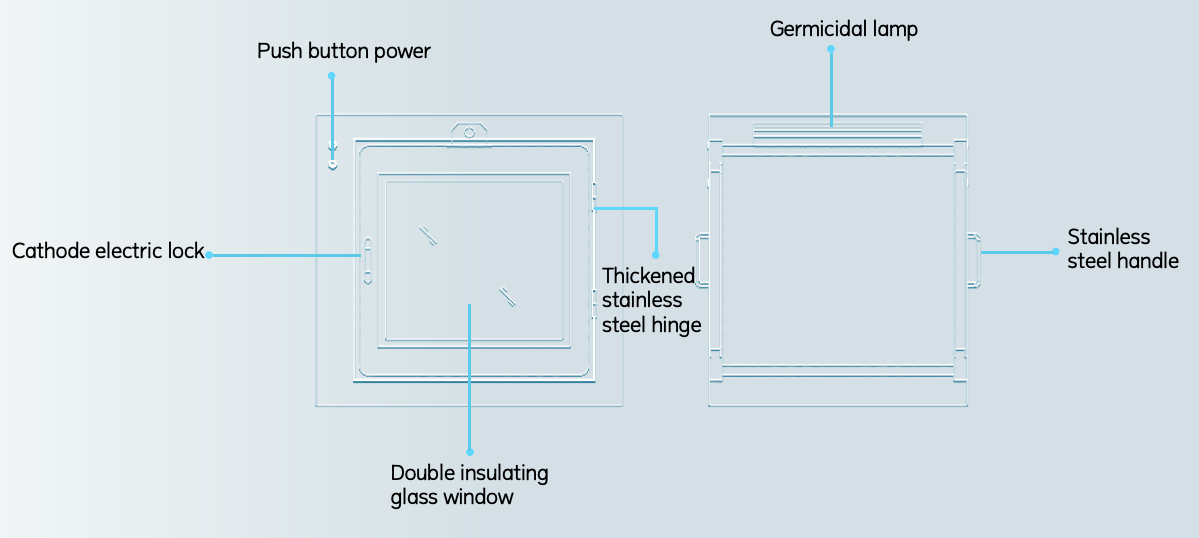

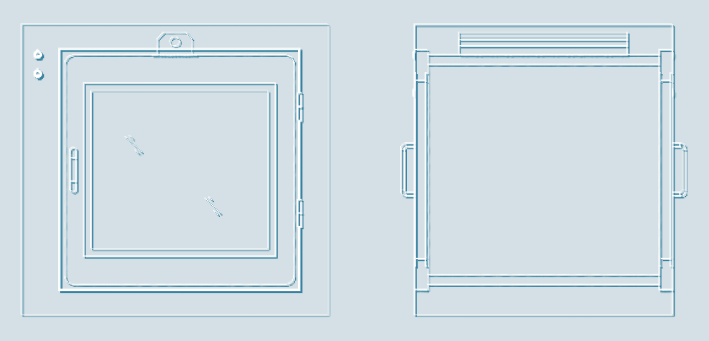

Type-Ordinary (Sterile) Pass Box-Composition Structure
Type-Ordinary (Sterile) Pass Box-Features
|
|
|

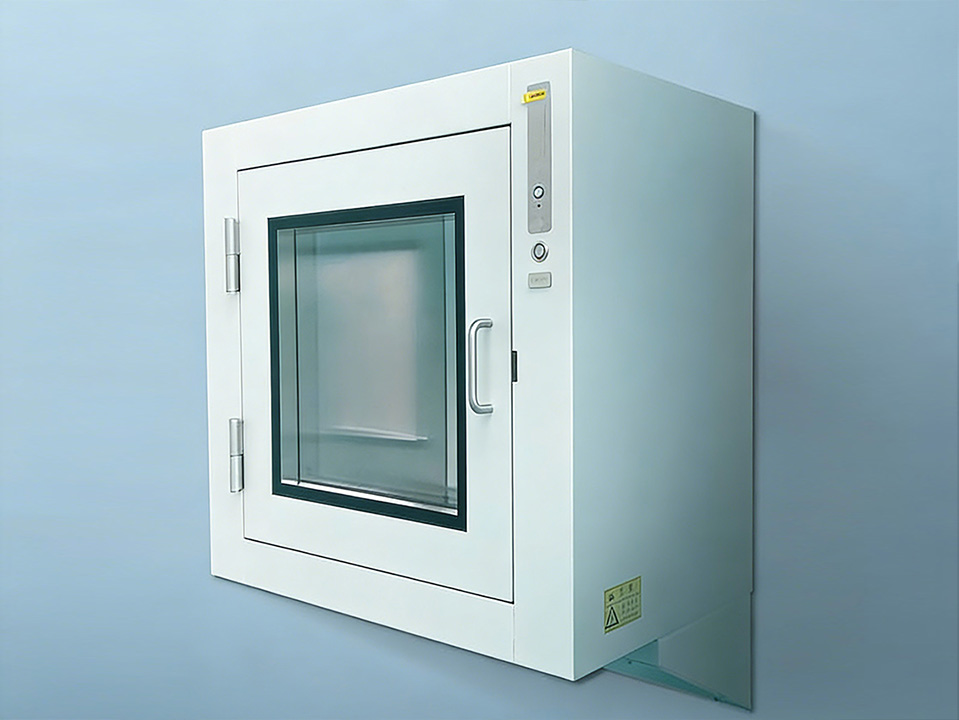

Easy to clean Internal arc structure, no dead angle | High Confinement Glue-foamed integrated airtight strip | High appearance Double glazing, smooth inside and outside |

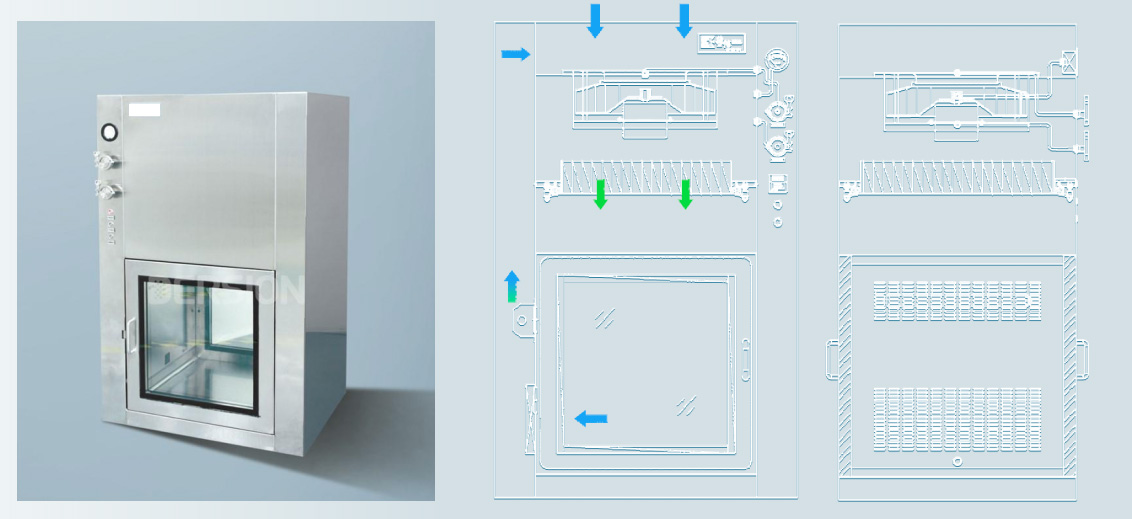

Type - Sterile Laminar Flow Pass box - Working Principle

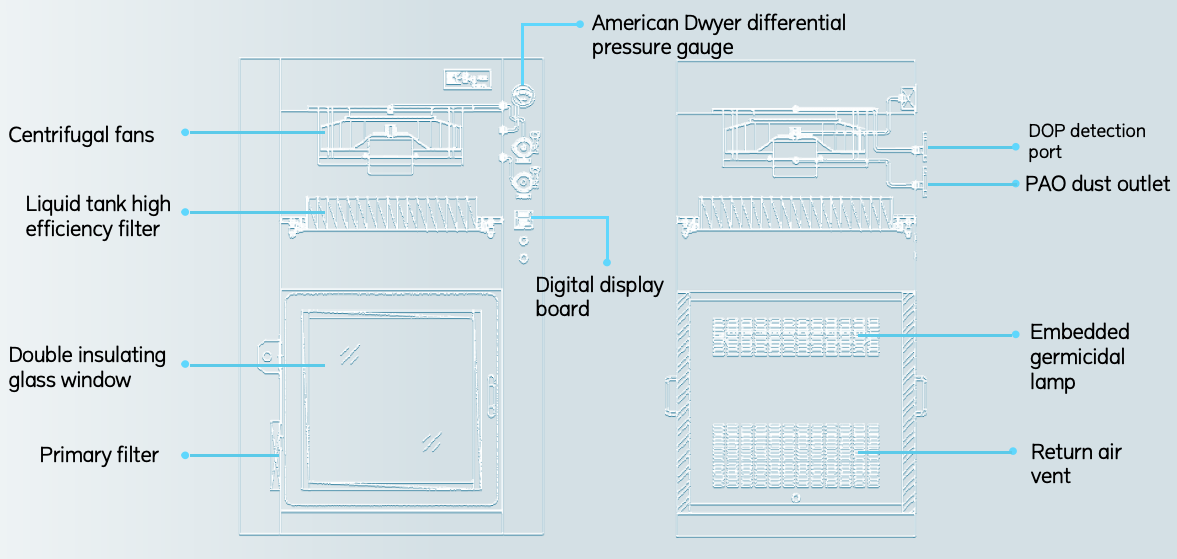

Type-Sterile Laminar Flow Pass box-Composition Structure

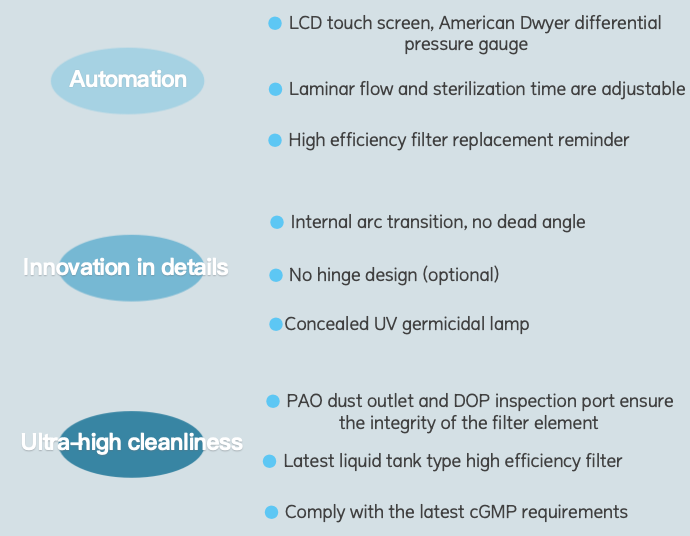

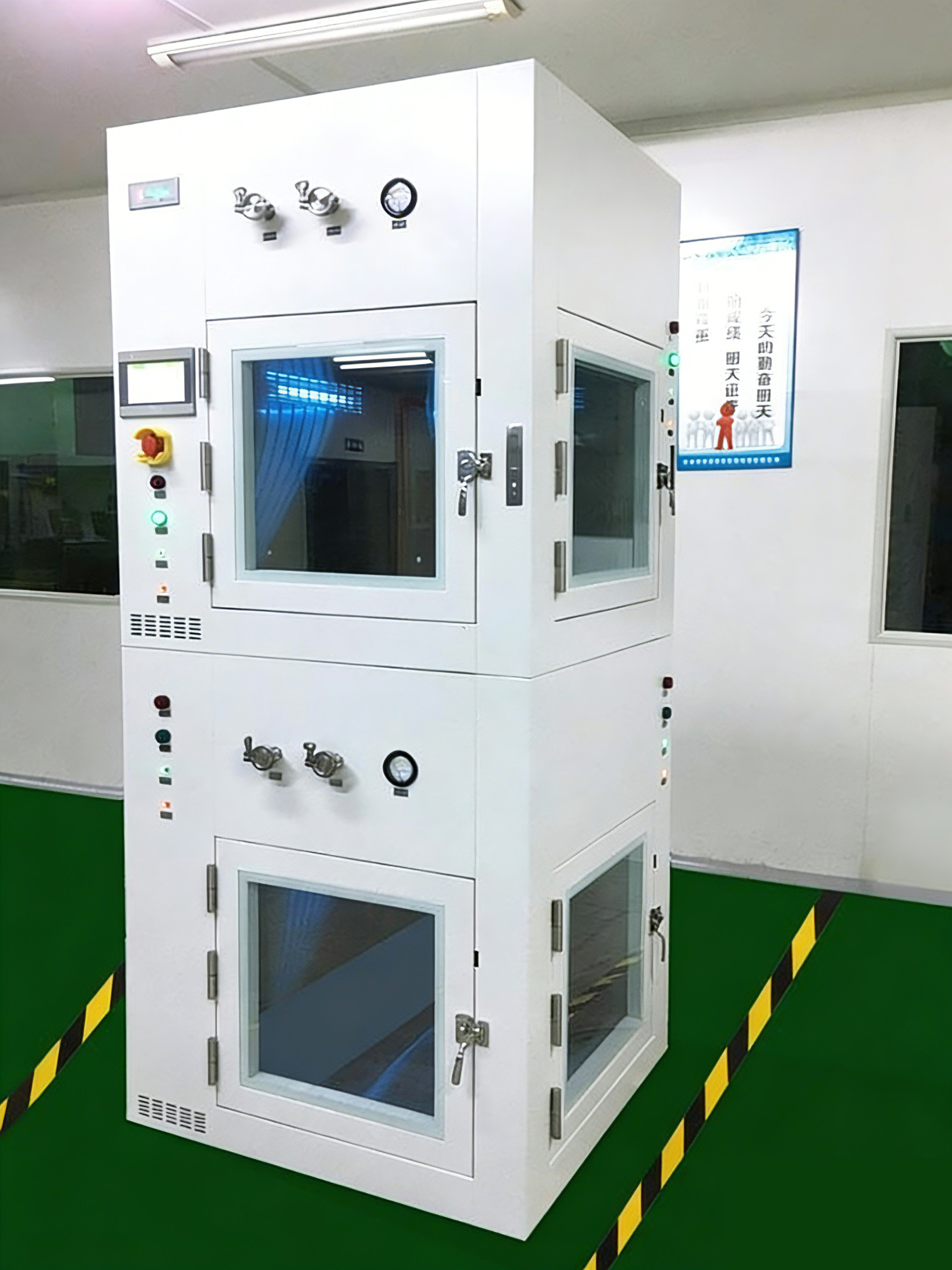

Type-Sterile Laminar Flow Pass Box-Features
|
|

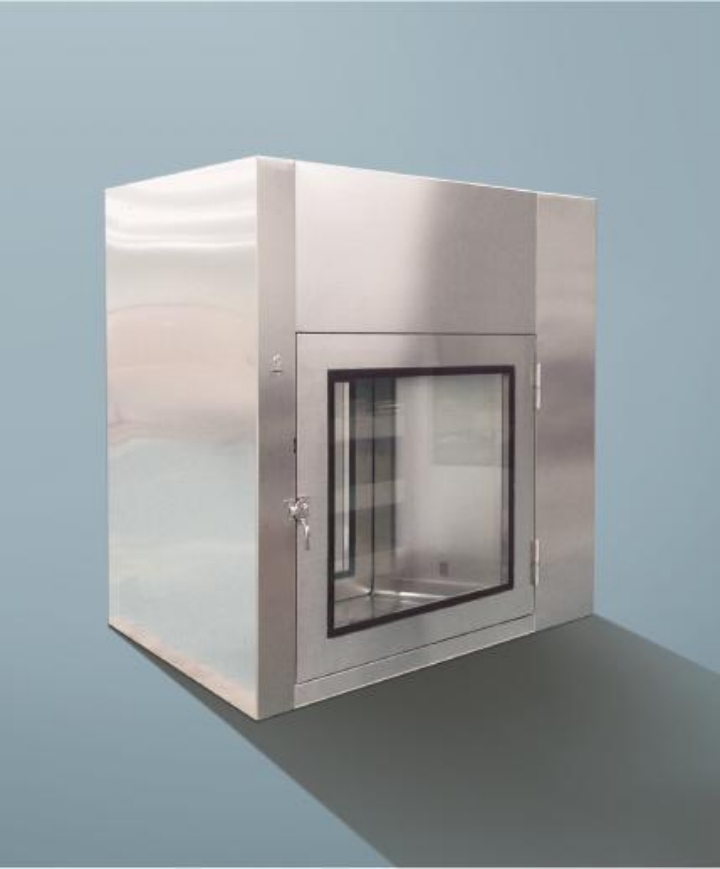

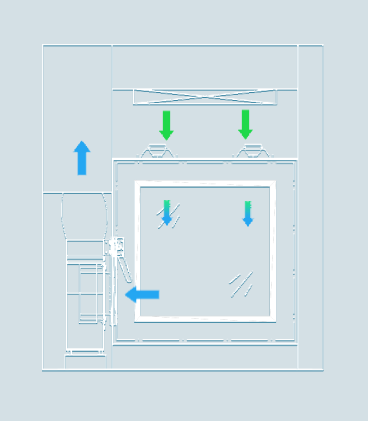

Type-Air Shower Pass Box-Working Principle
|
|

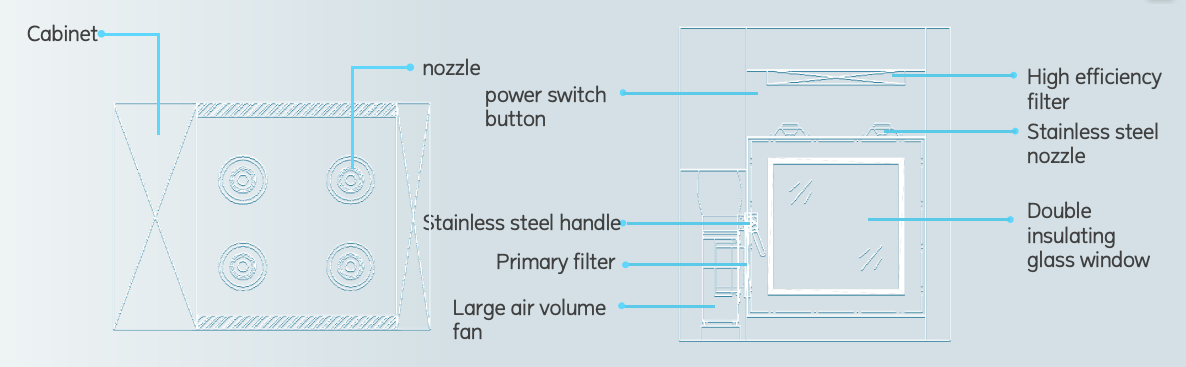

Type-Air Shower Pass Box-Composition Structure

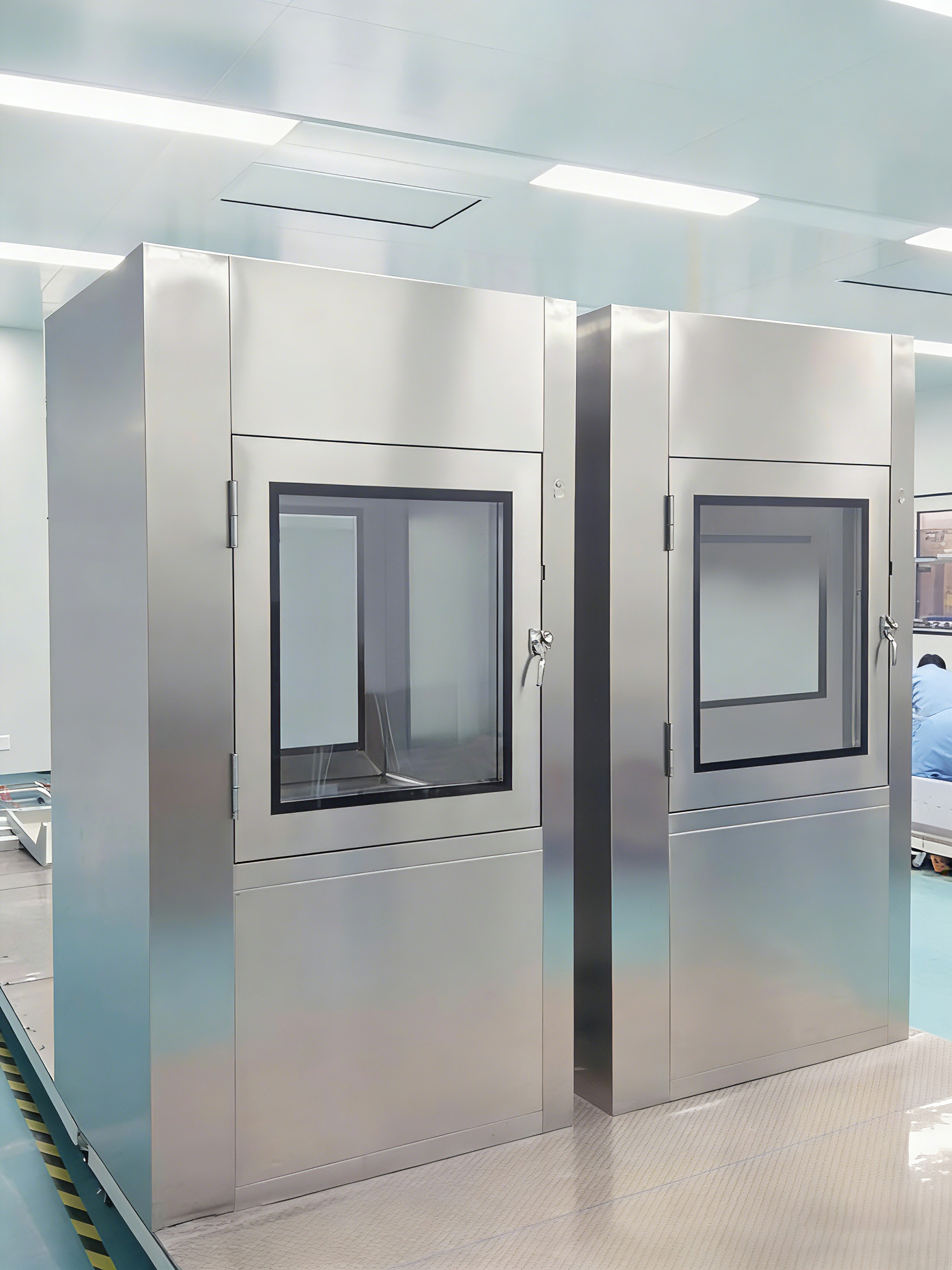

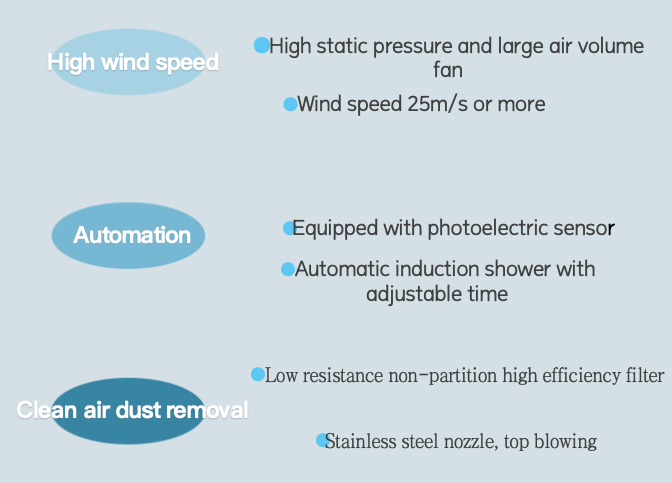

Type-Air Shower Pass Box-Features
|
|

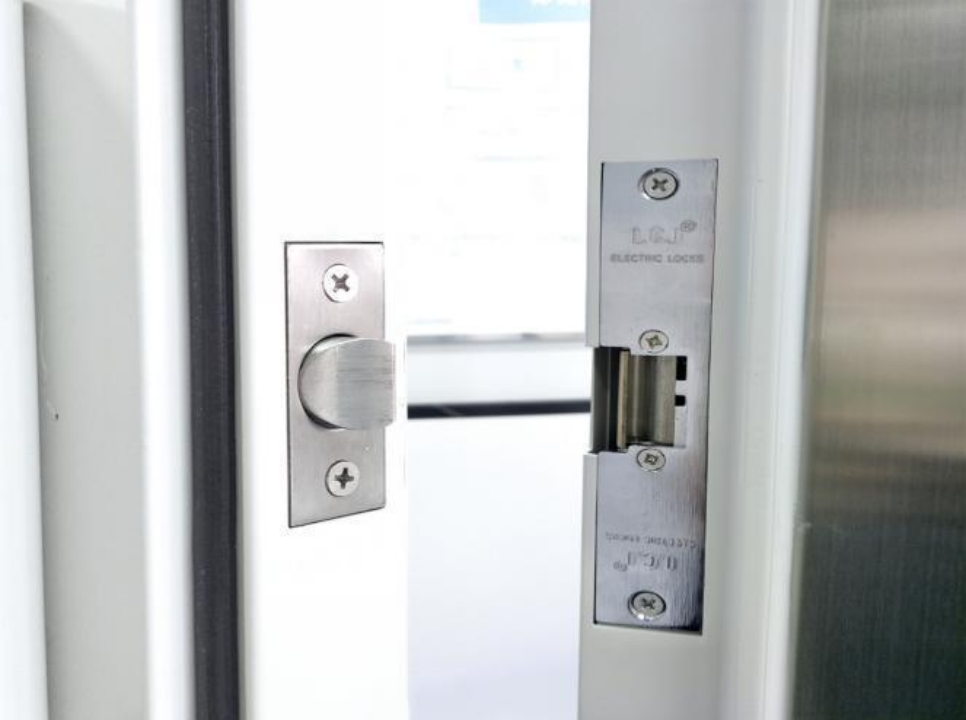

| Electronic interlock Using brand LCJ electronic interlock All stainless steel lock core Lock when powered on, unlock when powered off |

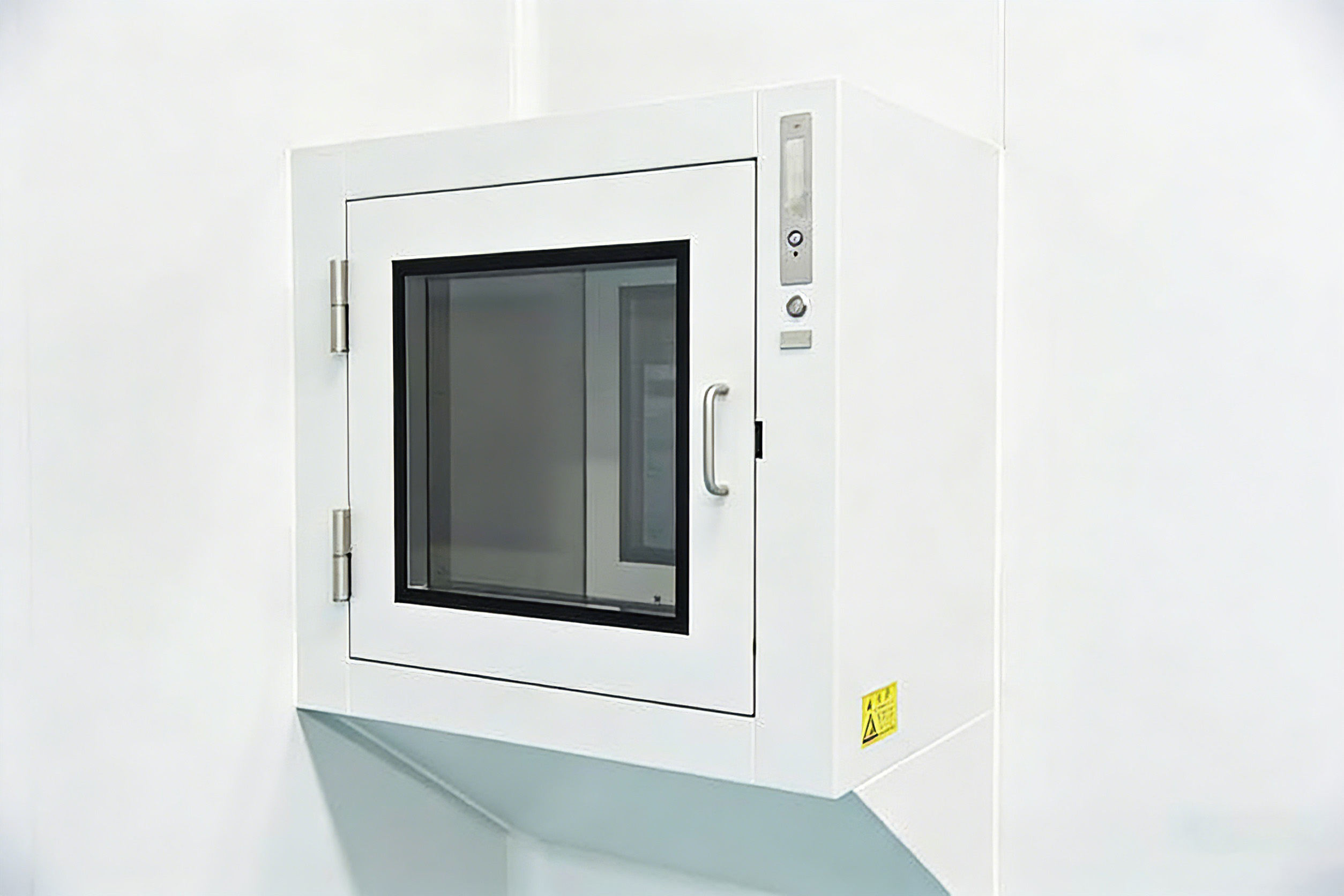

| Observation window Large viewing angle observation window Double-layer hollow tempered glass Tempered glass thickness: 5mm Black beautiful edge design |

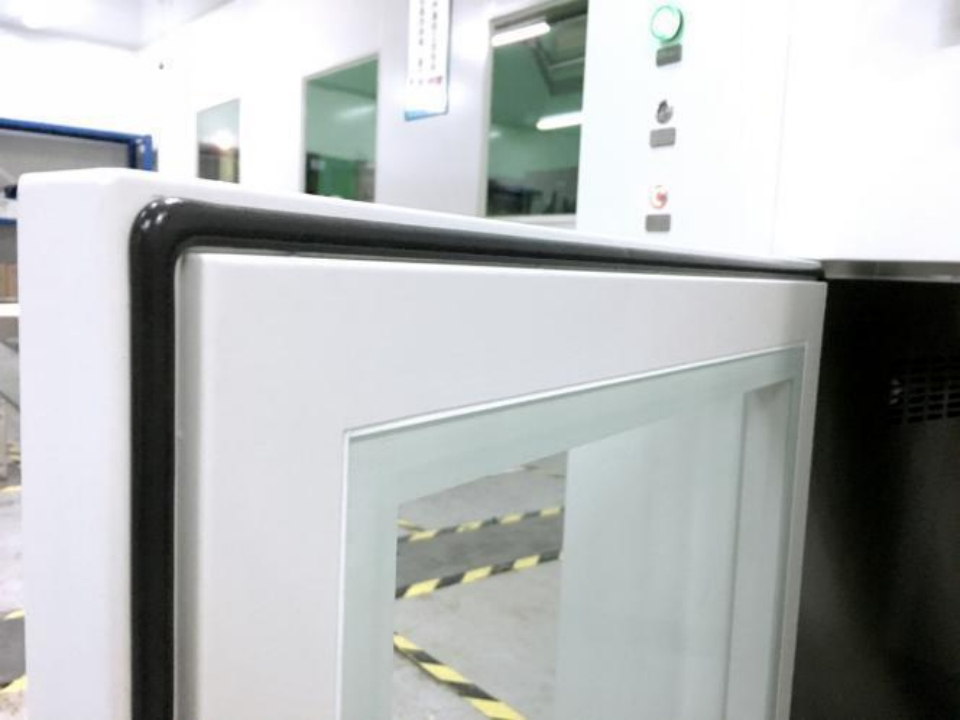

| Sealing Glue-dispensing foaming process Strong airtightness |

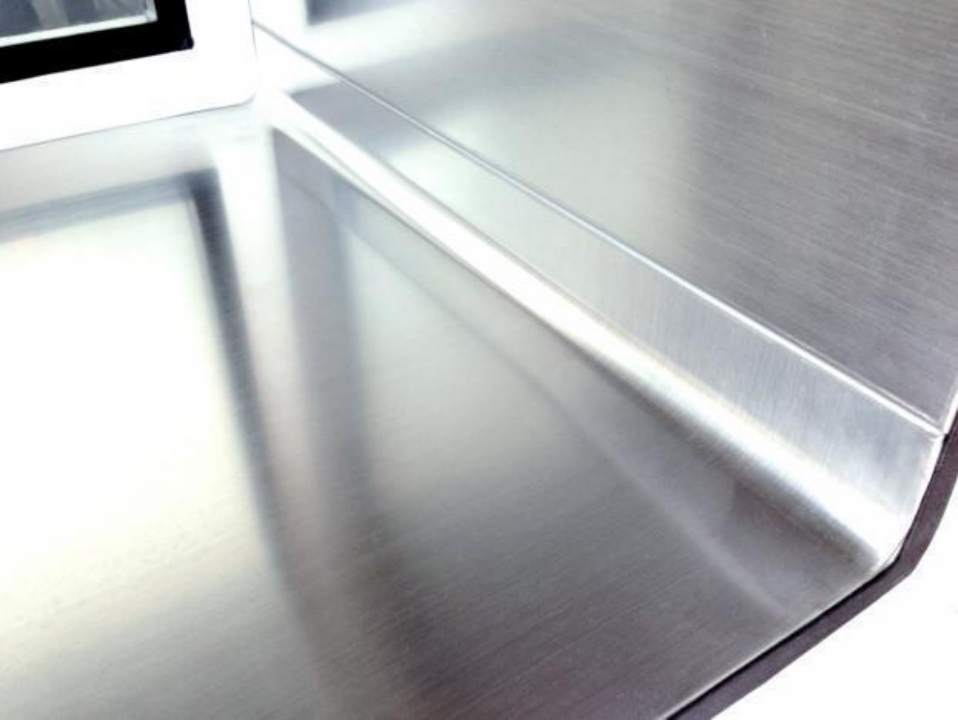

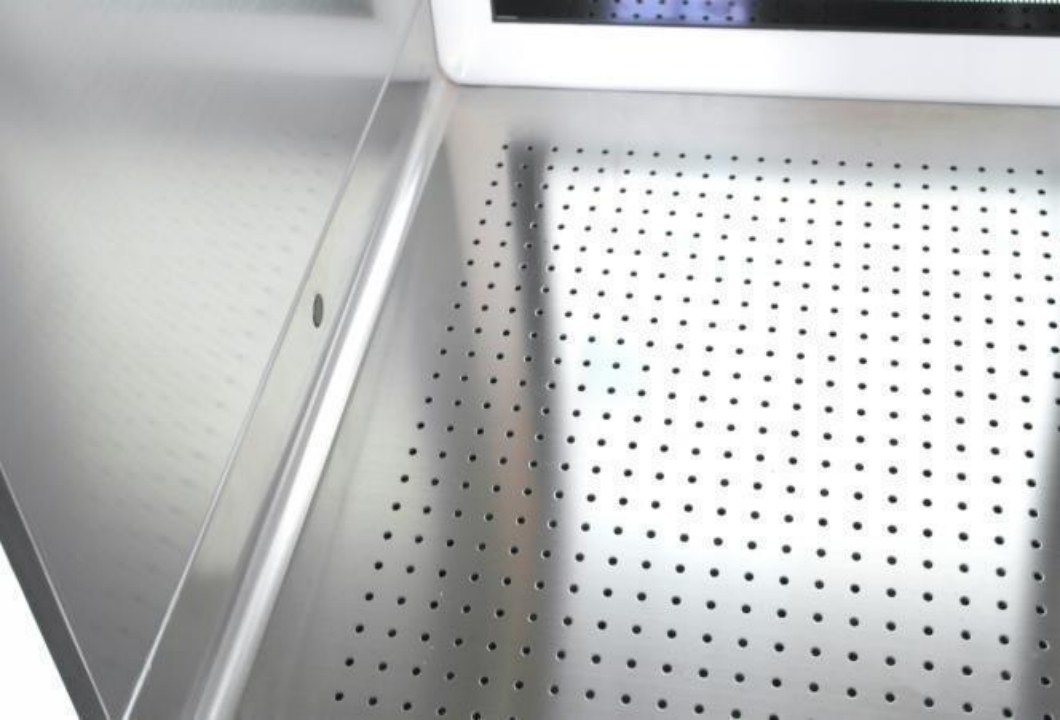

| Corner Arc corner More in line with the clean room principle No dead corners, easy to clean |

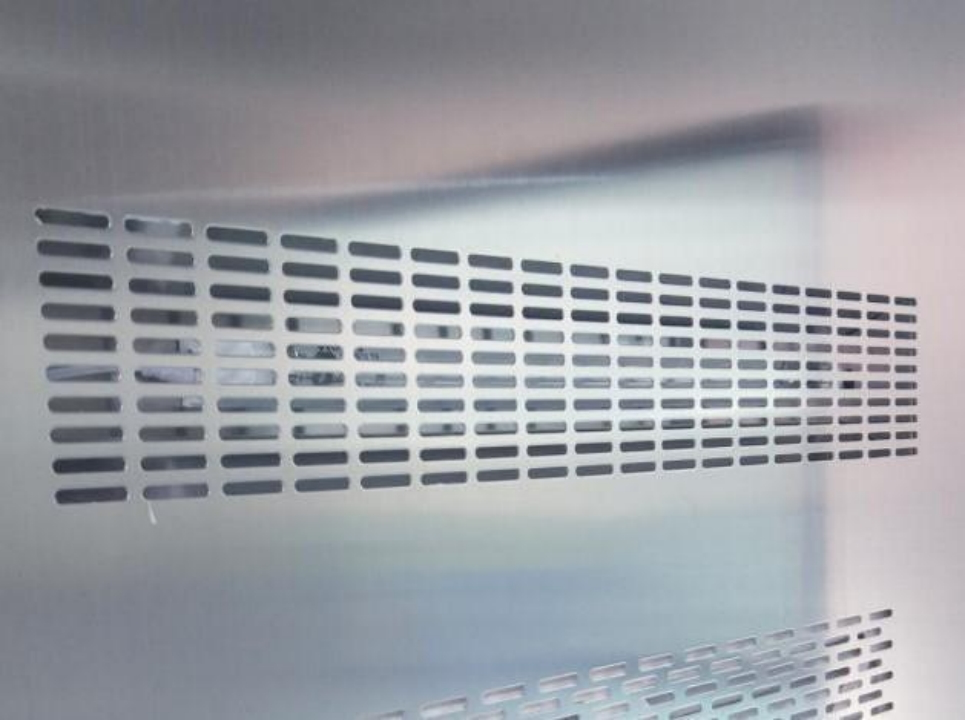

| Ultraviolet germicidal lamp Using Philips ultraviolet germicidal lamp Embedded installation Optional: 8-16w Service life: 8000H |

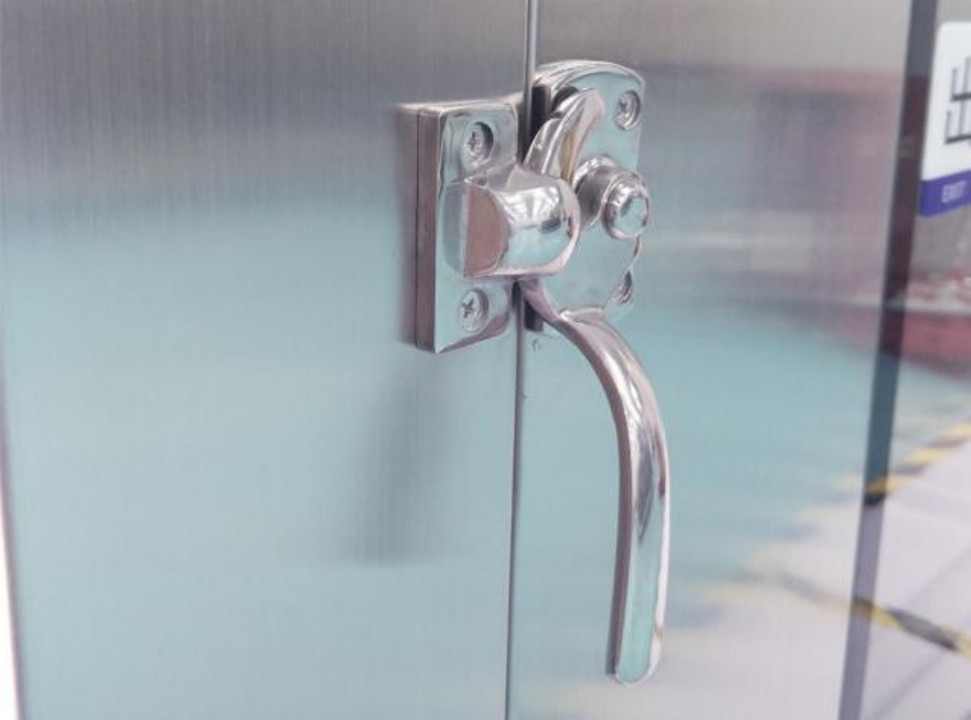

| Handle Press-on handle All stainless steel Good sealing performance |
