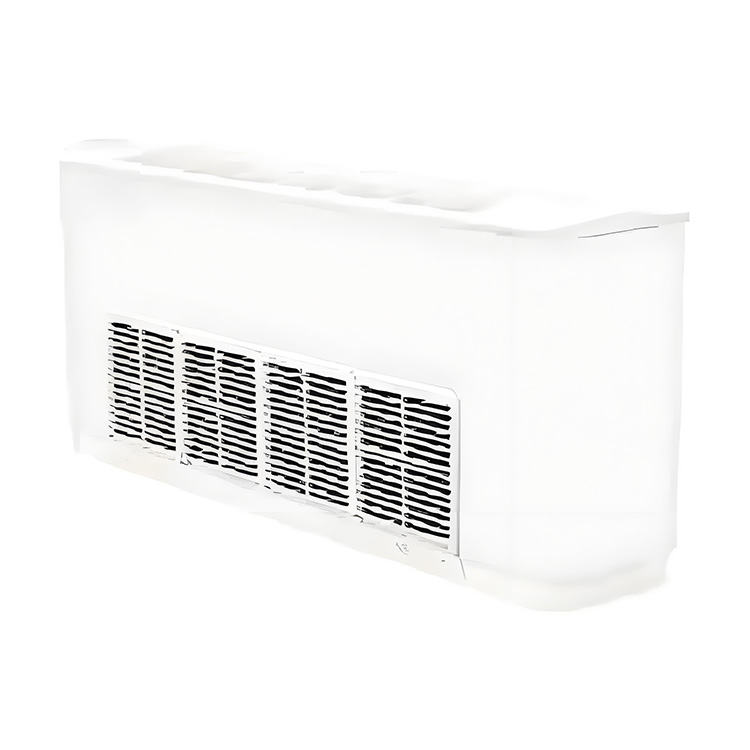

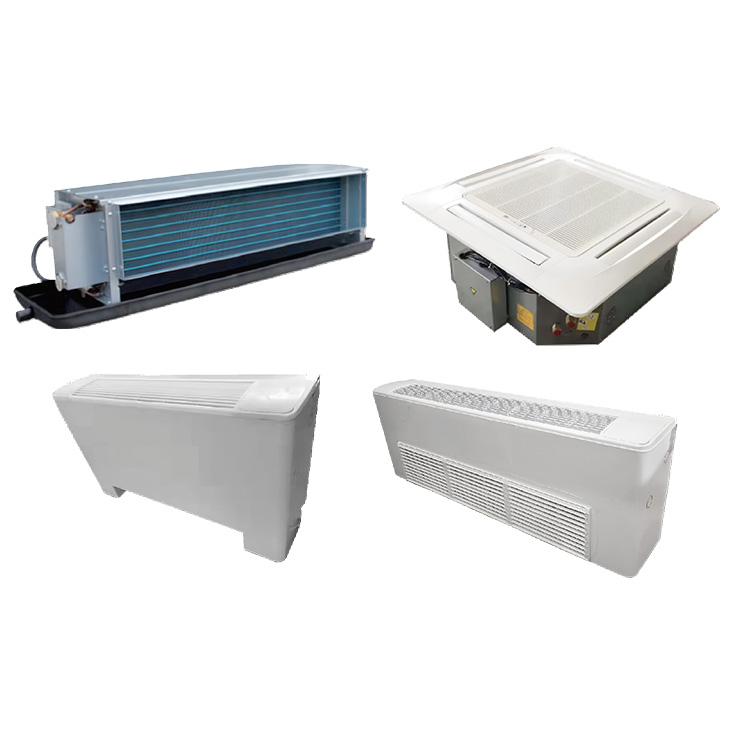

Horizontal/vertical Surface Mounted Type
|  |  |
 |  |  |
 |  |
Note:
Elegant appearance:Beautiful view
Saving space: Maximum thickness of 250mm
The standard control mode is three-speed switch control, with remote control and wire control optional
The vertical surface mounted type has up-air outlet type only
The horizontal surface mounted type has down-return air and front air outlet type only
Judgment criteria for left and right type of unit:Facing the return air inlet, if the connecting pipe is on the left, it is left type; otherwise, it is right type;

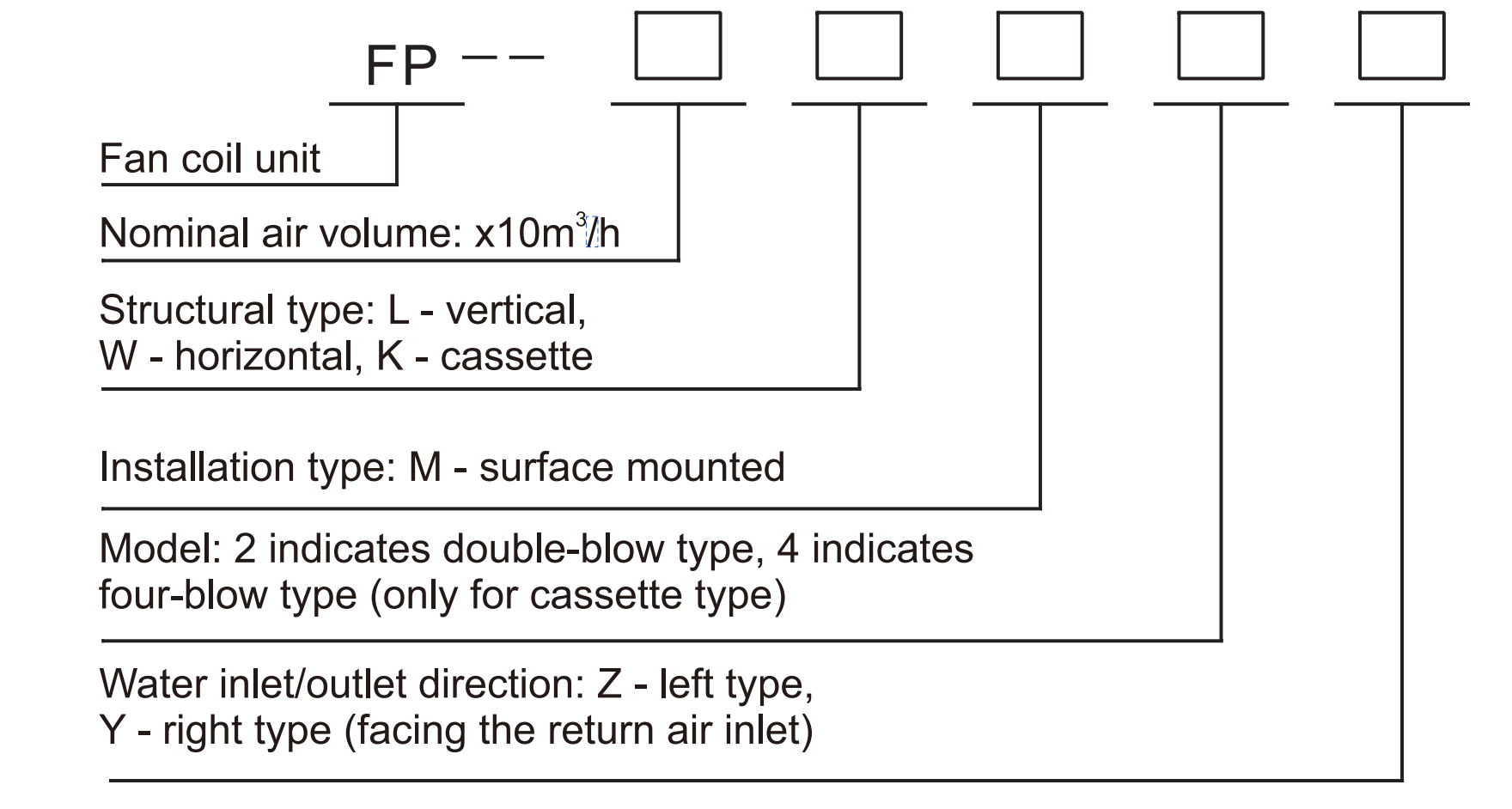

Type | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | |
Rated air | H | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 |
M | 384 | 510 | 638 | 765 | 1020 | 1275 | 1530 | |
L | 258 | 340 | 425 | 510 | 680 | 850 | 1020 | |
Refrigerating | H | 2680 | 3640 | 4480 | 5350 | 7180 | 8950 | 10600 |
M | 2270 | 3020 | 3770 | 4530 | 6040 | 7515 | 8350 | |
L | 1650 | 2170 | 2710 | 3250 | 4340 | 5420 | 6050 | |
Heating | H | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 |
M | 3240 | 4290 | 5370 | 6430 | 8580 | 10720 | 13380 | |
L | 2260 | 3000 | 3710 | 4450 | 5950 | 7450 | 9580 | |
Power (W) | H | 51 | 62 | 71 | 94 | 124 | 152 | 188 |
Noise (dB(A)) | H | 39 | 41 | 43 | 45 | 46 | 48 | 50 |
Power supply | 220~240V/1P/50Hz | |||||||
Coil working pressure | 1.6MPa | |||||||
Inlet/outlet water pipe joint | Rc3/4(internal thread) | |||||||
Condensate water joint | φ20mm | |||||||
Water flow | H | 520 | 700 | 876 | 1050 | 1400 | 1750 | 1990 |
Water resistance | H | 5.9 | 11.9 | 19.7 | 31.9 | 37.8 | 24.2 | 29.4 |
Weight(Kg) | 19 | 21 | 22 | 27 | 39 | 47 | 49 | |
Specification:
1. Measurement condition of refrigerating capacity: Air inlet dry bulb temperature of 27℃, wet bulb temperature of 19.5℃, water inlet temperature of 7℃, and water outlet temperature of 12℃.
2. Measurement condition of heating capacity: Air inlet dry bulb temperature of 21℃, and water inlet temperature of 60℃. The water supply working condition is same with the refrigeration condition.
3. The sound pressure level value is measured in the anechoic room or semi-anechoic room, 1m below and before the unit under high-grade operation.
4. H, M and L refer to high, medium and low grade respectively.
Surface Mounted Fan Coil Unit

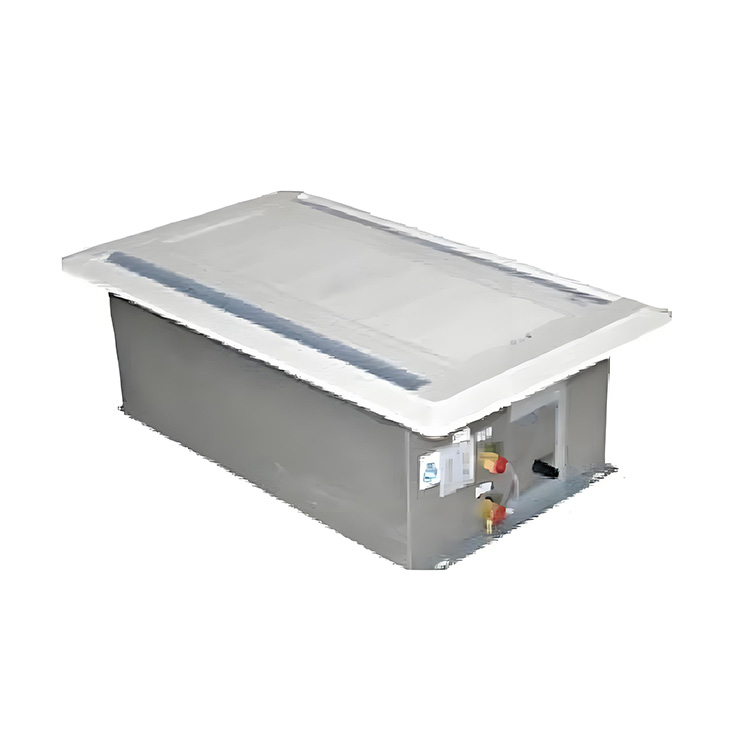

Cassette Double-blow Type
Note:
Km2 indicates cassette double-blow type unit;
Suitable for long and narrow space,such as corridor or long and narrow living room or dining room;
Two-way air outlet design,guaranteeing uniform air flow;
No left/right type division of unit;
The unit is equipped with condensate water lift pump(with lift of 700 mm)and remote control.
Type | FP-51KM2 | FP-68KM2 | FP-85KM2 | FP-102KM2 | FP-136KM2 | FP-170KM2 | FP-204KM2 | |
Rated air | High-grade | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 |
Refrigerating | High-grade | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 |
Heating | High-grade | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 |
Power (W) | High-grade | 52 | 62 | 76 | 96 | 134 | 152 | 189 |
Noise(dB(A)) | High-grade | 39 | 41 | 43 | 45 | 46 | 48 | 50 |
Coil | Type | High-quality copper tube mechanic expansion-join corrugated fin | ||||||
Working | 1.6MPa | |||||||
Inlet/outlet water pipe joint | Rc3/4(internal thread) | |||||||
Condensate water joint | φ20mm | |||||||
Overall | Lifting | 892 | 892 | 1012 | 1252 | 1252 | 1732 | 1732 |
Panel:L | 1083 | 1083 | 1203 | 1443 | 1443 | 1924 | 1924 | |
Water flow | High-grade | 520 | 700 | 876 | 1050 | 1400 | 1750 | 1990 |
Water | High-grade | 5.9 | 11.9 | 19.7 | 31.9 | 37.8 | 24.2 | 29.4 |
Weight (Kg) | 36 | 36 | 42 | 46 | 46 | 57 | 60 | |
Note:
1. Air volume refers to that with the outlet static pressure of 0Pa.
2. Measurement condition of refrigerating capacity: Air inlet dry bulb temperature of 27℃, wet bulb temperature of 19.5℃, water inlet temperature of 7℃, and water outlet temperature of 12℃.
3. Measurement condition of heating capacity: Air inlet dry bulb temperature of 21℃, and water inlet temperature of 60℃.
Surface Mounted Fan Coil Unit

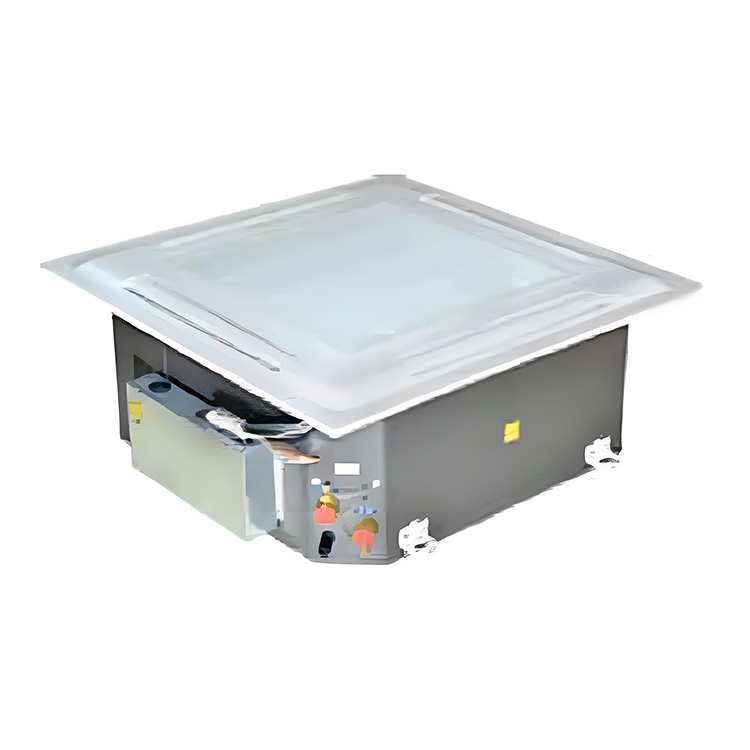

Cassette Double-blow Type
Type | FP-34KM4 | FP-51KM4 | FP-68KM4 | FP-85KM4 | FP-102KM4 | FP-136KM4 | FP-170KM4 | FP-204KM4 | FP-238KM4 | |
Rated air flow(m³/h) | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | |
Refrigerating | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | 12150 | |
Heating capacity | 2700 | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 | 17500 | |
Piping | Inlet/outlet | Rc3/4(DN20) | ||||||||
Condensate | φ20 | |||||||||
Water flow Kg/h | 350 | 520 | 700 | 860 | 1050 | 1400 | 1750 | 1990 | 2320 | |
Water resistance kpa | 30 | 30 | 30 | 30 | 40 | 40 | 40 | 40 | 50 | |
Input power W | 37 |
| 62 |
| 96 |
|
|
|
| |
Noise dB(A) | ≤37 | ≤39 | ≤41 | ≤43 | ≤45 | ≤46 | ≤48 | ≤50 | ≤52 | |
Connection type | Internal thread connection | |||||||||
Power supply | 1/N/PE/AC 220V 50HZ | |||||||||
Unit net | Type 290 | 23 | 23 | 23 | 34 | 34 | 34 | 48 | 48 | 48 |
Type 390 | 23 | 23 | 23 | 34 | 34 | 34 | 48 | 48 | 48 | |
Working pressure | 1.6 | |||||||||
Overall | A*B | 650*650 | 650*650 | 650*650 | 850*850 | 850*850 | 850*850 | 1050*1050 | 1050*1050 | 1050*1050 |
L*S | 570*570 | 570*570 | 570*570 | 730*730 | 730*730 | 730*730 | 930*930 | 930*930 | 930*930 | |
K*H |
|
|
|
|
|
|
|
|
| |
Nominal working condition of unit:
Working condition of refrigeration: Air inlet dry bulb temperature of 27℃, wet bulb temperature of 19.5℃, water inlet temperature of 7℃, and water outlet temperature of 12℃;
Working condition of heating: Air inlet dry bulb temperature of 21℃, and water inlet temperature of 60℃; (Input power of type 290 unit increases 20W)
