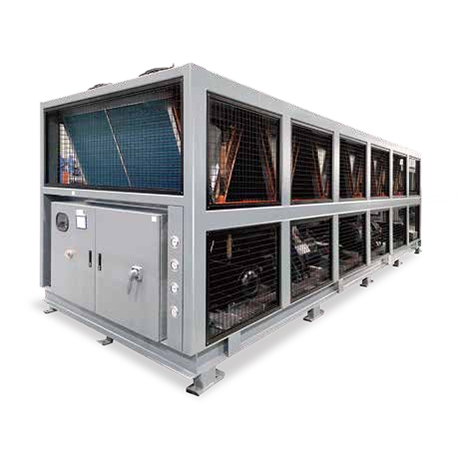

AIR COOLED SCREW CHILLER

The Air Cooled Screw Chiller represents the pinnacle of industrial thermal management, engineered specifically for large-scale facilities requiring absolute temperature precision and unwavering reliability. When you approach the unit, the solid, high-strength welded metal frame immediately conveys a sense of rugged durability, coated in a flawless, weather-resistant finish designed to withstand the harshest outdoor elements without a hint of degradation. The low-vibration, rhythmic hum of the imported semi-hermetic screw compressor speaks volumes about its balanced internal mechanics and superior craftsmanship. By harnessing advanced heat exchange dynamics through finely crafted finned-tube condensers and highly efficient dry shell-and-tube evaporators, this chiller systematically eliminates thermal bottlenecks in your complex production lines. It does not merely cool your processes; it actively safeguards your critical infrastructure from heat-induced fatigue, drastically reducing the risk of costly, unplanned downtime. Every stainless steel pipe, precision valve, and industrial-grade electrical relay is meticulously assembled to create a cohesive, highly responsive cooling ecosystem that adapts seamlessly to fluctuating operational loads, ensuring your facility remains running at peak efficiency day and night.

REFRIGERATION EQUIPMENT

Such as intelligent high and low liquid temperature control unit for vehicle components test、intelligent high and low liquid temperature control unit for reaction kettle in pharmacy and chemicals、evaporative cooling screw chiller、full liquid screw chiller、cascade screw low temperature screw chiller、dual effect heat pump for waste water and environmental protection、gas and oil condense recovery chiller, Tertiary oil and gas recovery condense chiller for oil and gas station, ex-explosion proof fuel refrigeration equipment.

The main products are: air cooled chiller、water cooled chiller、industrial air cooler、industrial oil cooler、 air cooled screw chiller、water cooled screw chiller、water cooled low temperature screw chiller evaporative cooling screw chiller、cascade refrigerating unit、intelligent high and low liquid temperature control unit，etc.

PRODUCT FEATURES

• The unit has complete protection functions, including power phase sequence, high and low pressure,motor overload, low liquid level, anti-freezing protection, etc

• The unit use high strength welded frame，The paint is suitable for outdoor use

• Imported brand compressor from Europe and Japan

• The water tank and water pipe made of stainless steel SUS304

• The refrigeration valve from Danfoss, Sporlan,Carel and other well-known brands

• Electrical components supplied from ABB, SIEMENS, Schneider and other famous brands

• The standard unit has remote switch interface and fault transmission interface, Rs485 communication function is optional

• Adopts microcomputer automatic control or PLC control

• Other refrigerants can be selected ,such as R22, R407C, R404A, R134A, R410A etc

• Other evaporator type can be selected,such as stainless steel plate heat exchanger, shell and tube type, coil type, and Acid and alkali resistant type

• The default frame color RAL 7045, metal color RAL 7075, it also can be customized according to customer requirements

SPECIFICATIONS

★The above parameters based on chilled water inlet/outlet temperature of 12℃/7℃,Ambient temperature 35℃.
★We reserve the rights to change the parameters without notice.

Core Components & Brand Endorsement

The longevity and reliability of any heavy industrial equipment are entirely dependent on the pedigree of its internal components. We refuse to compromise on the foundational elements of our chillers, partnering exclusively with globally recognized engineering pioneers to construct a machine that operates flawlessly under continuous stress. This uncompromising approach to sourcing drastically lowers your long-term maintenance overhead and eliminates the costly trial-and-error often associated with inferior parts.

• Elite Compressor Technology: Powered by imported semi-hermetic screw compressors from premier European and Japanese manufacturers, delivering unparalleled volumetric efficiency, exceptional durability, and whisper-quiet operation on the factory floor.

• World-Class Refrigeration Valves: Integrated with precision expansion and control valves from industry giants like Danfoss, Sporlan, and Carel, guaranteeing exact refrigerant metering and preventing dangerous liquid slugging inside the compressor.

• Industrial-Grade Electrical Switchgear: Equipped with heavy-duty contactors, breakers, and relays sourced directly from ABB, SIEMENS, and Schneider, ensuring absolute electrical stability even amidst severe power grid fluctuations and voltage spikes.

Cooling Performance & Energy Efficiency

Energy consumption is a critical metric for any large-scale facility, and this chiller is meticulously engineered to drive down your utility expenditures while maximizing thermal output. With a broad cooling capacity spectrum ranging from 74.6 kW to 316.6 kW, the system is perfectly calibrated to handle massive industrial heat loads without breaking a sweat. The high Coefficient of Performance (COP) translates directly into measurable cost savings, transforming your thermal management from a liability into a strategic advantage.

• Load-Matching Intelligence: The stepped capacity control (0/25/50/75/100%) seamlessly transitions between output levels, ensuring the compressor only consumes the exact amount of electricity required for the current heat load.

• Optimized Heat Transfer: The high-efficiency dry shell-and-tube evaporator maximizes the contact surface area between the refrigerant and the process fluid, accelerating the heat exchange rate and minimizing thermal energy loss.

• Low-Friction Mechanics: The semi-hermetic screw design features ultra-precise rotor profiles that compress the refrigerant with minimal mechanical friction, significantly boosting overall energy efficiency and reducing internal heat generation.

Smart Control & Automation

Modern industrial facilities demand equipment that can communicate, adapt, and operate with minimal human intervention. This chiller acts as an intelligent node within your broader factory ecosystem, utilizing cutting-edge microcomputer automation to monitor, analyze, and adjust its performance parameters in real-time. The intuitive interface eliminates the steep learning curve typically associated with complex refrigeration systems, empowering your operators to manage massive cooling loads with a simple touch.

• Siemens PLC Brain: At the core lies a highly responsive Siemens Programmable Logic Controller, executing complex algorithmic adjustments instantly to maintain perfect thermal equilibrium across your production line.

• Vibrant LCD Touch Interface: A high-resolution, color LCD screen provides a crystal-clear visual representation of all operating metrics, system statuses, and historical data logs for effortless daily management.

• Seamless BMS Integration: Optional RS485 communication protocols allow the unit to integrate flawlessly into your centralized Building or Factory Management System, enabling remote, unmanned oversight and multi-language operation.

• Automated Fault Diagnostics: Instantly detects, isolates, and transmits detailed fault codes to your central control room via the standard fault transmission interface, enabling preemptive maintenance before a minor issue escalates.

Reliability & Comprehensive Safety

Unplanned downtime is the ultimate enemy of industrial profitability. We have engineered this chiller with an exhaustive array of fail-safes and protective mechanisms designed to shield the equipment—and your production line—from catastrophic failures. Whether facing sudden power surges, extreme ambient temperatures, or unexpected flow restrictions, the system possesses the autonomous capability to protect its core components, ensuring your high-value production processes run 24/7 without interruption.

• Electrical Grid Protection: Comprehensive inverse phase and phase-loss monitoring instantly disconnects power during grid anomalies, preventing irreversible motor burnout and electrical fires.

• Hydraulic Safeguards: Sensitive water flow sensors and pressure drop monitors ensure the compressor never operates under dry or restricted conditions, completely eliminating the risk of evaporator freezing and internal rupture.

• Internal Mechanical Shields: Continuous electronic monitoring of oil pressure, oil level, and exhaust temperatures guarantees the screw rotors remain perfectly lubricated and well within safe thermal operating limits.

• High/Low Pressure Regulation: Dual mechanical and electronic pressure switches prevent the refrigerant cycle from exceeding its critical design thresholds, venting safely via integrated safety valves if an overpressure event occurs.

Environmental Adaptability & Durability

Industrial environments are inherently hostile, exposing equipment to corrosive chemicals, abrasive dust, and relentless weather. The exterior and structural integrity of this chiller are built to outlast the harshest conditions, providing a fortified enclosure for the delicate internal mechanics. From the tactile feel of the heavy-gauge metal to the flawless, baked-on paint finish, every physical element is optimized for extreme longevity and uncompromising structural rigidity.

• Fortified Structural Chassis: Constructed from high-yield-strength carbon steel, the fully welded frame eliminates vibration-induced micro-fractures over decades of continuous operation.

• Weather-Defiant Coating: Finished with a specialized outdoor-grade powder coating (standard RAL 7045 frame / RAL 7075 metal color) that fiercely resists UV degradation, moisture ingress, and atmospheric corrosion.

• Corrosion-Proof Fluid Pathways: The integration of SUS304 stainless steel for all water-contacting surfaces ensures that your process water remains pristine and the internal pipes never succumb to oxidative decay.

• Harsh-Environment Customization: The robust design allows for the integration of acid and alkali-resistant evaporators, making it perfectly suited for highly corrosive chemical processing plants or coastal installations exposed to salt air.

Eco-friendly & Refrigerant Flexibility

As global environmental regulations become increasingly stringent, future-proofing your facility's infrastructure is paramount. This chiller is engineered with exceptional thermodynamic flexibility, allowing it to operate at peak efficiency across a wide spectrum of modern, environmentally responsible refrigerants. By minimizing your carbon footprint and adhering to strict international compliance standards, this system supports your corporate sustainability goals while ensuring smooth, restriction-free international procurement and deployment.

• Broad Refrigerant Compatibility: Fully optimized to run on a variety of gases, including R22, R407C, R404A, R134A, and R410A, allowing you to select the exact medium that aligns with your regional environmental mandates.

• Zero Ozone Depletion Potential: Options for low-GWP and zero-ODP refrigerants ensure that your cooling processes do not contribute to atmospheric degradation, meeting the highest green industry standards.

• Hermetic Leak Prevention: Advanced brazing techniques and premium sealing gaskets create a virtually impenetrable closed-loop system, drastically reducing the risk of fugitive greenhouse gas emissions over the machine's lifespan.

• Regulatory Compliance Ready: Designed to meet rigorous international manufacturing and safety certifications, facilitating seamless integration into facilities bound by strict environmental audits and ISO standards.

Industry Adaptability & Customization

No two industrial facilities have the exact same thermal dynamics. We recognize that true operational excellence requires equipment that adapts to your specific process, rather than forcing your process to adapt to the equipment. This chiller serves as a highly versatile thermal platform, capable of being heavily customized to meet the exacting demands of diverse sectors, from high-speed plastic injection molding to delicate pharmaceutical synthesis.

• Versatile Evaporator Configurations: Choose between the standard dry shell-and-tube, ultra-compact stainless steel plate heat exchangers, or specialized coil types to perfectly match your fluid viscosity and cleanliness requirements.

• Aesthetic and Structural Tailoring: Beyond the standard RAL colors, the exterior metalwork can be custom-painted to match your corporate branding or specific facility color-coding safety standards.

• Cross-Industry Application: Proven to deliver exceptional results in chemical reaction kettle cooling, evaporative cooling processes, vehicle component stress testing, and large-scale food and beverage packaging.

• Adaptable Power Configurations: While standardizing on 3N/380V/50Hz, the electrical architecture can be expertly modified to accommodate diverse international power grids, ensuring rapid deployment globally.

Why Choose Us

Partnering with a premier manufacturer means securing more than just a piece of equipment; it means investing in a comprehensive ecosystem of support, engineering excellence, and unwavering reliability. We understand the high stakes involved in large-scale industrial procurement. Our production facilities operate under the strictest quality control protocols, ensuring that every chiller that leaves our floor is a masterpiece of thermal engineering. We are committed to empowering your operations with cooling solutions that drive productivity and protect your bottom line.

• End-to-End Engineering Support: From initial thermal load calculations to final site commissioning, our technical teams provide deep, consultative expertise to ensure you select the perfect configuration for your specific application.

• Rigorous Factory Testing: Every unit undergoes exhaustive, full-load simulation testing in our state-of-the-art climate chambers before dispatch, guaranteeing plug-and-play reliability the moment it arrives at your facility.

• Global Supply Chain Resilience: By maintaining deep strategic partnerships with top-tier component suppliers, we ensure rapid manufacturing lead times and the consistent availability of critical spare parts.

• Uncompromising Build Quality: We prioritize heavy-duty materials and meticulous craftsmanship over cost-cutting, resulting in equipment that significantly outlasts standard industry lifecycles and provides a superior return on investment.

FAQ

How does the step capacity control improve the overall lifespan of the semi-hermetic screw compressor?

By utilizing a 0/25/50/75/100% or 0/33/66/100% capacity control system, the compressor avoids brutal, full-load hard starts. It smoothly ramps up or down based on the exact thermal demand. This drastically reduces mechanical wear on the internal screw rotors and minimizes electrical stress on the motor windings, significantly extending the operational lifespan of the compressor and reducing maintenance intervals.

Can this air-cooled system effectively operate in environments with heavy airborne particulate matter?

Yes. The finned-tube condensers are meticulously designed with optimized fin spacing to allow for high-volume airflow while minimizing the accumulation of dust and debris. Furthermore, the high-strength welded frame and outdoor-rated paint protect the internal components. For extremely dusty environments, we can consult on specific placement strategies and additional pre-filtration options.

What makes the SUS304 stainless steel water tank and piping critical for process cooling?

Industrial process cooling often involves fluids that can be mildly corrosive or highly sensitive to contamination. SUS304 stainless steel provides exceptional resistance to oxidation and chemical scaling. This ensures that the water or coolant circulating through your expensive production machinery remains completely free of rust and particulate degradation, protecting your entire hydraulic loop from blockages.

How does the Siemens PLC integrate with our existing factory monitoring systems?

The integrated Siemens PLC acts as the intelligent hub of the chiller. By utilizing the optional RS485 communication interface, the unit can transmit real-time data—such as inlet/outlet temperatures, operating pressures, and fault codes—directly to your central Building Management System (BMS) using standard industrial protocols, enabling seamless remote monitoring and centralized control.

Is it possible to customize the evaporator type if our process fluid is highly acidic?

Absolutely. While the standard configuration utilizes a highly efficient dry shell-and-tube evaporator, we offer specialized acid and alkali-resistant evaporator options. These are constructed using advanced anti-corrosive alloys and specific coatings engineered to handle aggressive chemical fluids without degrading the heat transfer efficiency or risking structural failure.
