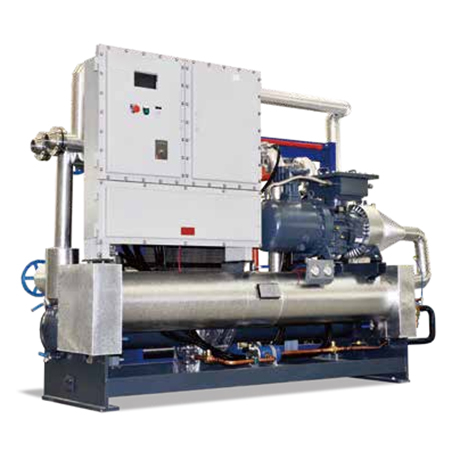

REFRIGERATION EQUIPMENT
Such as intelligent high and low liquid temperature control unit for vehicle components test、intelligent high and low liquid temperature control unit for reaction kettle in pharmacy and chemicals、evaporative cooling screw chiller、full liquid screw chiller、cascade screw low temperature screw chiller、dual effect heat pump for waste water and environmental protection、gas and oil condense recovery chiller, Tertiary oil and gas recovery condense chiller for oil and gas station, ex-explosion proof fuel refrigeration equipment.
The main products are: air cooled chiller、water cooled chiller、industrial air cooler、industrial oil cooler、 air cooled screw chiller、water cooled screw chiller、water cooled low temperature screw chiller evaporative cooling screw chiller、cascade refrigerating unit、intelligent high and low liquid temperature control unit，etc.
PRODUCT FEATURES
The unit has complete protection functions, including power phase sequence, high and low pressure,motor overload, low liquid level, anti-freezing protection, etc
The unit use high strength welded frame，The paint is suitable for outdoor use
Imported brand compressor from Europe and Japan
The water tank and water pipe made of stainless steel SUS304
The refrigeration valve from Danfoss, Sporlan,Carel and other well-known brands
Electrical components supplied from ABB, SIEMENS, Schneider and other famous brands
The standard unit has remote switch interface and fault transmission interface, Rs485 communication function is optional
Adopts microcomputer automatic control or PLC control
Other refrigerants can be selected ,such as R22, R407C, R404A, R134A, R410A etc
Other evaporator type can be selected,such as stainless steel plate heat exchanger, shell and tube type, coil type, and Acid and alkali resistant type
The default frame color RAL 7045, metal color RAL 7075, it also can be customized according to customer requirements
SPECIFICATIONS
ITEM | UNIT | AC–140WS | AC–180WS | AC–260WS | AC–340WS | AC–410WS | AC–470WS | AC–510WS | AC–580WS | AC–710WS | ACF–790WS | ACF–830WS | ACF–930WS | |
Cooling Capacity | kcal/h | 103458 | 135794 | 197800 | 269524 | 321124 | 382184 | 403512 | 478504 | 578608 | 746571 | 805141 | 898474 | |
kW | 120.3 | 157.9 | 230 | 313.4 | 373.4 | 444.4 | 469.2 | 556.4 | 672.8 | 868 | 936 | 1045 | ||
Total Power Input | kW | 28.5 | 36.1 | 52.4 | 67.7 | 83 | 96.4 | 101.7 | 118.7 | 142.5 | 157 | 167 | 185 | |
Maximum Running Current | A | 91 | 121 | 171 | 220 | 268 | 310 | 336 | 377 | 453 | 498 | 534 | 620 | |
Refrigerant | R22/R407C | |||||||||||||
Steps Control | % | 0/33/66/100 | 0/25/50/75/100 | |||||||||||
Temperature Control Range | ℃ | +5~+35 | ||||||||||||
Control Type | Siemens PLC Automatic Control,Color LCD Touch Screen | |||||||||||||
Power Supply Type | 3N,380V,50Hz | |||||||||||||
Safety Protection Device | Overload、Inverse Phase、High/Low Pressure、Safety Valve、Water Flow Oil Level、Exhaust Temperature、Antifreeze Protection,etc | |||||||||||||
Compressor | Type | Semi-hermetic Screw | ||||||||||||
Start Type | Y−△ | |||||||||||||
Amount | Sets | 1 | ||||||||||||
Condenser | Type | Shell And Tube Type | ||||||||||||
Water Flow | m3/h | 26 | 34 | 49 | 67 | 80 | 98 | 100 | 118 | 143 | 187 | 201 | 225 | |
Water Pressure Drop | kPa | 95 | 95 | 98 | 35 | 35 | 35 | 35 | 35 | 35 | 95 | 95 | 95 | |
In/Out Pipe Size | DN | 65 | 80 | 80 | 100 | 125 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | |
Evaporator | Type | Dry Shell And Tube Type | Flood type | |||||||||||
Water Flow | m3/h | 21 | 27 | 40 | 54 | 64 | 76 | 81 | 96 | 116 | 149 | 161 | 180 | |
Water Pressure Drop | kPa | 85 | 85 | 85 | 32 | 32 | 32 | 32 | 32 | 32 | 90 | 90 | 90 | |
In/Out Pipe Size | DN | 65 | 80 | 80 | 100 | 125 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | |
L×W×H | cm | 265*71*142 | 267*78*154 | 292*81*169 | 297*91*184 | 328*91*189 | 330*90*195 | 330*99*201 | 356*108*210 | 358*113*225 | 376*118*230 | 379*127*238 | ||
Net weight | kg | 970 | 1130 | 1460 | 1790 | 2080 | 2320 | 2490 | 2770 | 3310 | 3392 | 3650 | 4060 | |
Refrigerant Charge | kg | 23 | 30 | 43 | 59 | 70 | 84 | 89 | 105 | 127 | 156 | 168 | 187 | |
★The above parameters based on chilled water inlet/outlet temperature of 12℃/7℃,cooling water inlet/outlet temperature of 30℃/35℃.
★ We reserve the rights to change the parameters without notice.
★ExdII BT4。 Explosion proof ExdII BT4 available.
