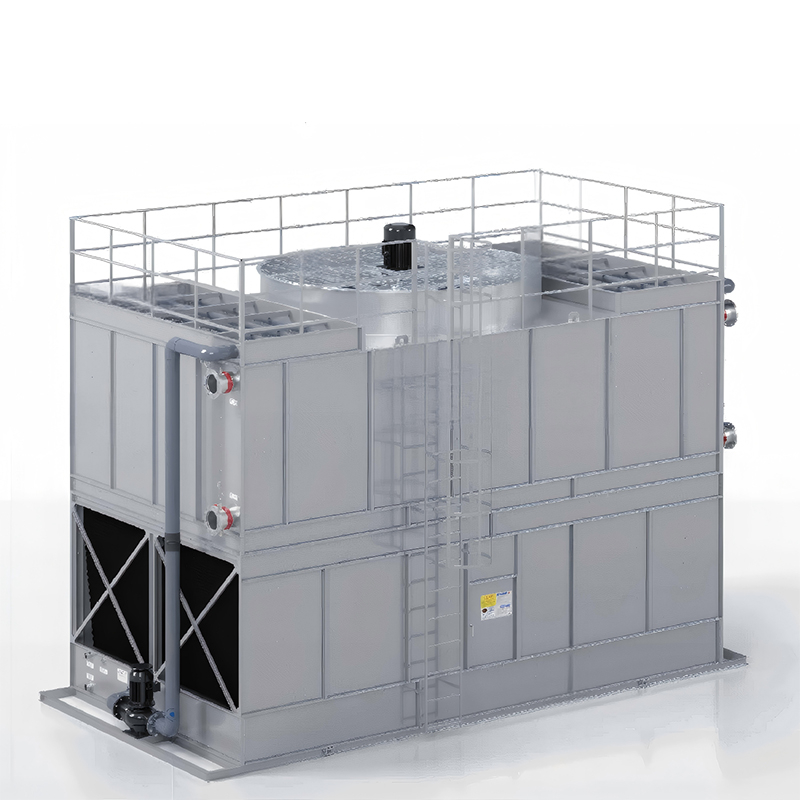

FHCD Closed-Circuit Cooling Tower (Dual Air Inlet, Compound Flow)

The FHCD Closed-Circuit Cooling Tower represents the pinnacle of modern thermal engineering, meticulously crafted to handle the most demanding heat rejection requirements of complex facilities. When you stand beside this unit, the subtle, steady hum of the high-efficiency aluminum alloy airfoil axial fan speaks to its precision aerodynamic balancing, moving massive volumes of air with barely a whisper of vibration. The exterior casing, forged from imported Aluminum-Zinc Alloy Coated Steel, presents a sleek, industrial-grade metallic finish that feels cool and unyielding to the touch, reflecting its inherent resistance to the harshest environmental elements. Inside, the intricate geometry of the compound flow system orchestrates a continuous, fluid dance between descending spray water and cross-flowing ambient air. This sophisticated interaction ensures that the internal process fluid remains entirely isolated within the immaculate T2 deoxidized copper or stainless steel coils, safeguarding your critical machinery from airborne debris and biological growth. By seamlessly integrating advanced fluid dynamics with robust architectural integrity, this cooling tower transforms raw thermal energy into a controlled, manageable asset, significantly elevating the operational stability, efficiency, and longevity of your entire production infrastructure.

SPECIFICATIONS

1--Water baffle

Effectively intercepts water droplets carried in the air, achieving a water drift rate of less than 0.001%. The detachable design facilitates maintenance of the cooler coils.  Made of polyvinyl chloride (PVC), it is corrosion-resistant, aging-resistant, and prevents microbial growth. It is installed above the cooler's water guide plate for easy cleaning.

2--Fan System

It adopts high-efficiency axial flow fans, fully enclosed air-cooled fan motors, corrosion-resistant cast steel multi-groove pulleys, and the fan casing, support frame, and protective net are made of hot-dip galvanized material. The entire fan system exhibits excellent corrosion resistance in high-temperature and high-humidity environments.

3--Water distribution system:

Made of corrosion-resistant rigid polyvinyl chloride (U-PVC), the special structural design allows for inspection and maintenance from outside the equipment without shutting it down. It utilizes large-diameter, 360-degree reinforced snap-on ABS nozzles, significantly reducing the possibility of clogging.

4--Coiled Tubing

The continuously bent, serpentine coil structure reduces the number of welding points, minimizing the possibility of leaks. The inclined design of the coil facilitates the smooth drainage of fluid from inside the tubes. The entire cooler, after welding, can withstand a pressure test of up to 2.5 MPa.

5--Cold Water Basin

The spray pump suction inlet is equipped with a stainless steel filter screen and anti-vortex plate. The cold water basin is designed with a reasonable height, ensuring that the spray pump operates without cavitation while minimizing the water volume.

6--Casing

Made of high-quality magnesium-plated aluminum-zinc steel plate, the coating contains a combination of multiple elements including zinc, aluminum, magnesium, and silicon, providing excellent corrosion resistance. It has a normal service life of over 25 years, and the corrosion resistance of the flat surfaces is 6-8 times that of ordinary aluminum-zinc steel plates. It also possesses unique self-healing properties for the cut edges.

Key Features & Highlights

Achieving optimal thermal equilibrium in a demanding environment requires equipment that goes beyond basic functionality. The FHCD Closed-Circuit Cooling Tower is engineered to deliver exceptional reliability, ensuring your operations remain uninterrupted even under peak thermal loads.

• Uncontaminated Fluid Circulation: By keeping your process fluid entirely enclosed within the premium coil system, the tower prevents airborne debris, dust, and biological growth from entering your critical machinery, drastically reducing internal fouling and equipment degradation.

• Acoustic Optimization: The integration of an airfoil axial fan crafted from high-grade aluminum alloy ensures that the aerodynamic profile slices through the air with minimal resistance. This translates to an exceptionally low decibel output, making it ideal for noise-sensitive environments without sacrificing airflow capacity.

• Structural Resilience: The heavy-duty casing materials are specifically selected to withstand severe weather conditions and corrosive atmospheres. The tactile rigidity of the ZAM panels ensures that the structural integrity remains uncompromised over decades of continuous operation.

• Streamlined Fluid Transport: Equipped with a dedicated high-flow, low-head centrifugal water pump, the system guarantees a uniform and powerful spray distribution. This precise fluid delivery maximizes the wetted surface area on the coils, accelerating the heat dissipation process while minimizing electrical draw.

Advanced Engineering & Operational Excellence

Our commitment to pushing the boundaries of thermal management is reflected in every aspect of the FHCD series. Below are the core engineering dimensions that set this system apart from conventional cooling solutions.

Cooling Efficiency & Anti-Scaling

Our patented dual air inlet and compound flow architecture merges parallel and cross-flow dynamics. This ensures the spray water comprehensively blankets the coil surface, entirely eliminating dry spots. By drastically reducing the scaling rate on the exterior coil walls, the system maintains long-term, stable heat exchange efficiency, perfectly suited for high-precision thermal management requirements.

Premium Materials & Durability

Built to endure, the standard outer casing utilizes high-strength, highly anti-corrosive Superdyma (ZAM) or stainless steel. The core heat exchange coils are meticulously fabricated from premium copper or stainless steel and subjected to rigorous pressure testing. This rugged construction defies harsh outdoor climates and corrosive atmospheres, significantly extending the equipment's lifecycle.

Energy & Water Conservation

The closed-loop circulation completely eradicates the evaporative loss and external contamination of the internal cooling medium. Paired with an intelligent variable-frequency fan and a high-efficiency spray pump, the system autonomously adapts its operational state based on ambient temperatures. This dynamic responsiveness remarkably reduces your facility's comprehensive utility consumption.

Compact Design & Easy Installation

The dual air inlet compound flow structure allows for a significantly smaller physical footprint compared to conventional units of the same cooling tonnage. This highly optimized, modular design not only streamlines logistics and transportation but also offers incredible flexibility for installations in space-constrained areas, such as retrofitted plants or rooftop environments.

Smart Control & Low Maintenance

Equipped with an industrial-grade PLC intelligent control system, operators benefit from one-touch start/stop functionality, automated fault alerts, and seamless BMS remote communication. Internally, spacious inspection corridors and accessible maintenance doors make routine checks, nozzle cleaning, and basin maintenance safe and highly efficient, sharply cutting down manual labor costs.

Customization & Adaptability

Understanding that every facility faces unique environmental challenges, we offer profound customization services. Whether your operations require anti-freezing measures for extreme cold, dust-resistant configurations, ultra-low noise profiles, or explosion-proof ratings, we tailor the materials, fans, and control logic to flawlessly integrate with your complex systems.

Quality Control & Reliability

Drawing upon three decades of manufacturing mastery, every single unit undergoes stringent pre-dispatch inspections, including coil airtightness evaluations, fan dynamic/static balance testing, and comprehensive full-machine trial runs. We provide robust, EPC-level technical support and installation guidance to guarantee your project is delivered on schedule and transitions safely into active production.

Why Choose Us

Selecting the right partner for your facility's thermal management infrastructure is just as critical as the equipment itself. As a dedicated manufacturer and direct supplier, we bridge the gap between advanced engineering and practical, on-the-ground solutions. We do not merely assemble components; we engineer comprehensive cooling ecosystems designed to elevate your operational efficiency.

• Direct-from-Manufacturer Accountability: By eliminating intermediaries, we provide transparent communication, rapid response times, and direct access to the engineers who designed your system.

• Decades of Engineering Pedigree: With over thirty years embedded in the thermal management sector, our manufacturing processes have been refined to an art form, ensuring every weld, connection, and control panel meets exacting global standards.

• End-to-End Project Support: From the initial thermal load calculations to final site commissioning, our dedicated technical teams provide comprehensive guidance, ensuring a flawless integration into your existing infrastructure.

• Uncompromising Component Sourcing: We partner exclusively with top-tier material providers, ensuring that every piece of copper, steel, and electronic circuitry embedded in our towers is of the highest industrial grade.

Frequently Asked Questions (FAQ)

Navigating the technical nuances of closed-circuit cooling systems can be complex. Below, we address some of the most critical inquiries from facility managers and procurement engineers regarding the FHCD series.

What maintenance is required for the compound flow system?

Thanks to the closed-loop design, internal coil maintenance is virtually eliminated. External maintenance is highly streamlined to ensure maximum uptime:

• Quarterly visual inspections of the spray nozzles via the integrated access doors.

• Bi-annual checks of the fan belt tension and motor bearings.

• Annual cleaning of the lower water collection basin to remove any accumulated atmospheric dust.

How does the PLC control system integrate with our existing BMS?

Our intelligent PLC control cabinet is designed for seamless integration. It utilizes standard industrial communication protocols (such as Modbus RTU or TCP/IP) to interface directly with your Building Management System. This allows your central control room to monitor real-time fluid temperatures, fan speeds, and pump statuses, as well as execute remote start/stop commands without manual intervention.

Can this cooling tower operate efficiently in sub-zero climates?

Absolutely. For installations in extreme cold regions, we offer specialized winterization packages to prevent freezing and maintain efficiency. These include:

• Integrated basin heaters with automated thermostats to prevent spray water freezing.

• Variable frequency drives (VFDs) on the fans to reduce airflow and maintain optimal fluid temperatures without overcooling.

• Automated drain-down protocols for the external spray system during extended shutdown periods.

What makes the ZAM (Aluminum-Zinc Alloy Coated Steel) superior to standard galvanized steel?

ZAM represents a significant metallurgical advancement. The coating combines zinc, aluminum, and magnesium, which creates a dense, self-healing protective barrier. If the surface is scratched, the magnesium facilitates a chemical reaction that seals the exposure, providing a lifespan that is significantly longer than traditional hot-dip galvanized steel, especially in highly saline or chemically aggressive environments.

How do you ensure the integrity of the heat exchange coils before shipping?

Quality assurance is paramount to our manufacturing process. Every single coil assembly undergoes a rigorous multi-stage testing protocol before it is installed into the casing:

• High-pressure underwater pneumatic testing to detect microscopic leaks.

• Continuous pressure retention monitoring over a 24-hour period.

• Final visual and tactile inspections of all brazed and welded joints by certified metallurgists.
